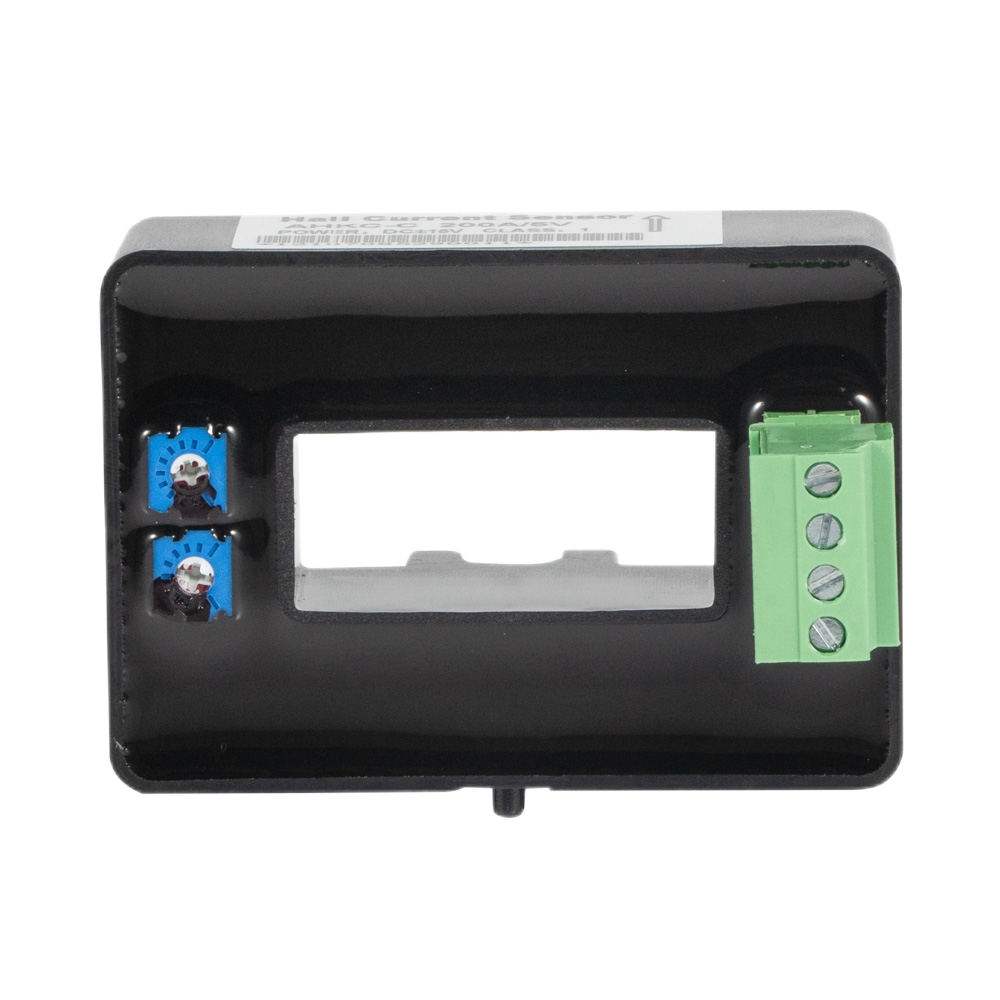

DESCRIPTION
| It is insulative between the primary and secondary grade of AHKC-E series current sensor which can be usedformeasuring direct current, alternating current and pulse current. |  |
|
 |
 |
|
|
Installation: Easy Installation |
Service: 24 Hour |
|
 |
 |
|
|
Certificate: CE/MID |
Quality: Quality Assurance
|
|
| Model | Rated Current Ratio (A) |
Rated output | Diameter (mm) | Power Supply |
|

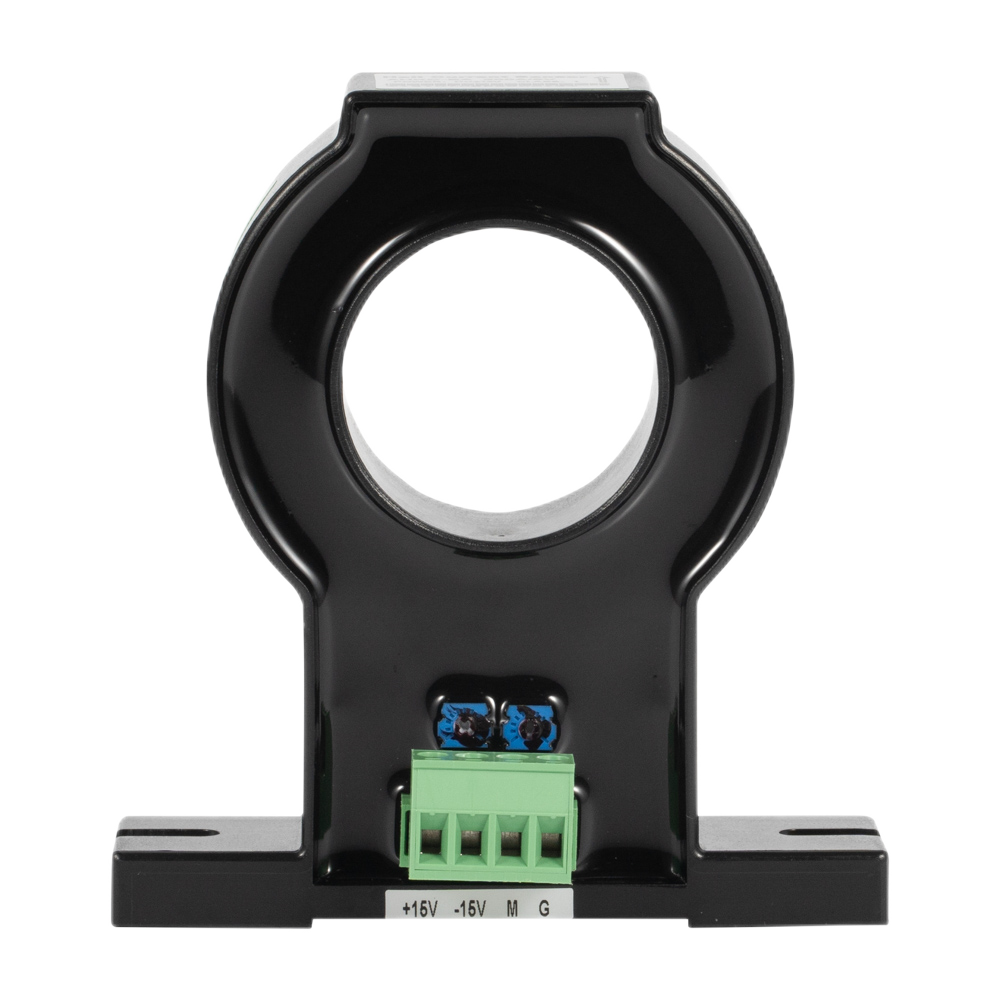

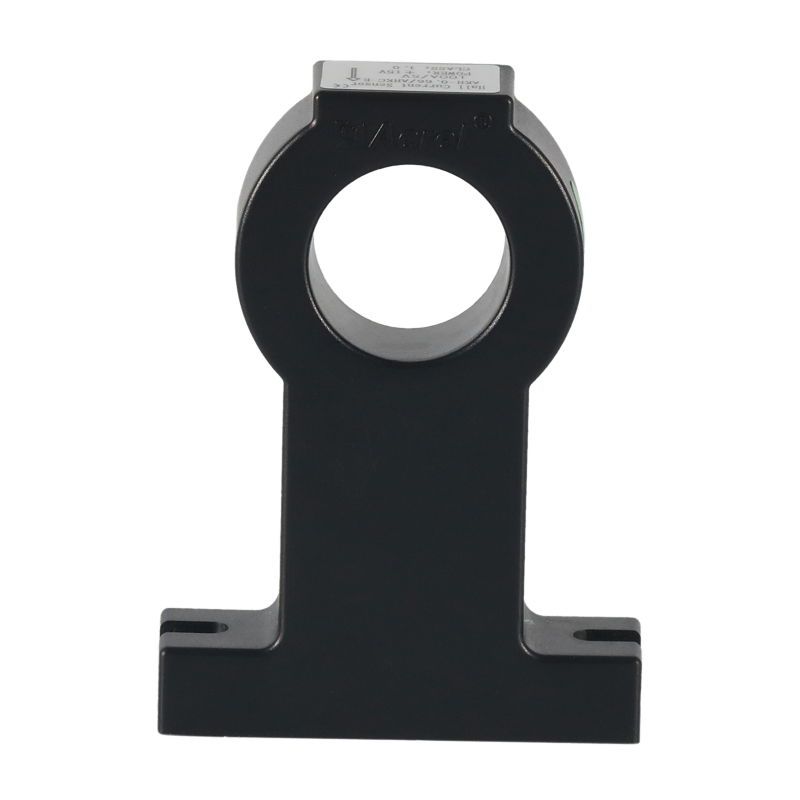

AHKC-E |
0~(50-500) A |
5V/4V | Φ20 | DC±12V/±15V |
|

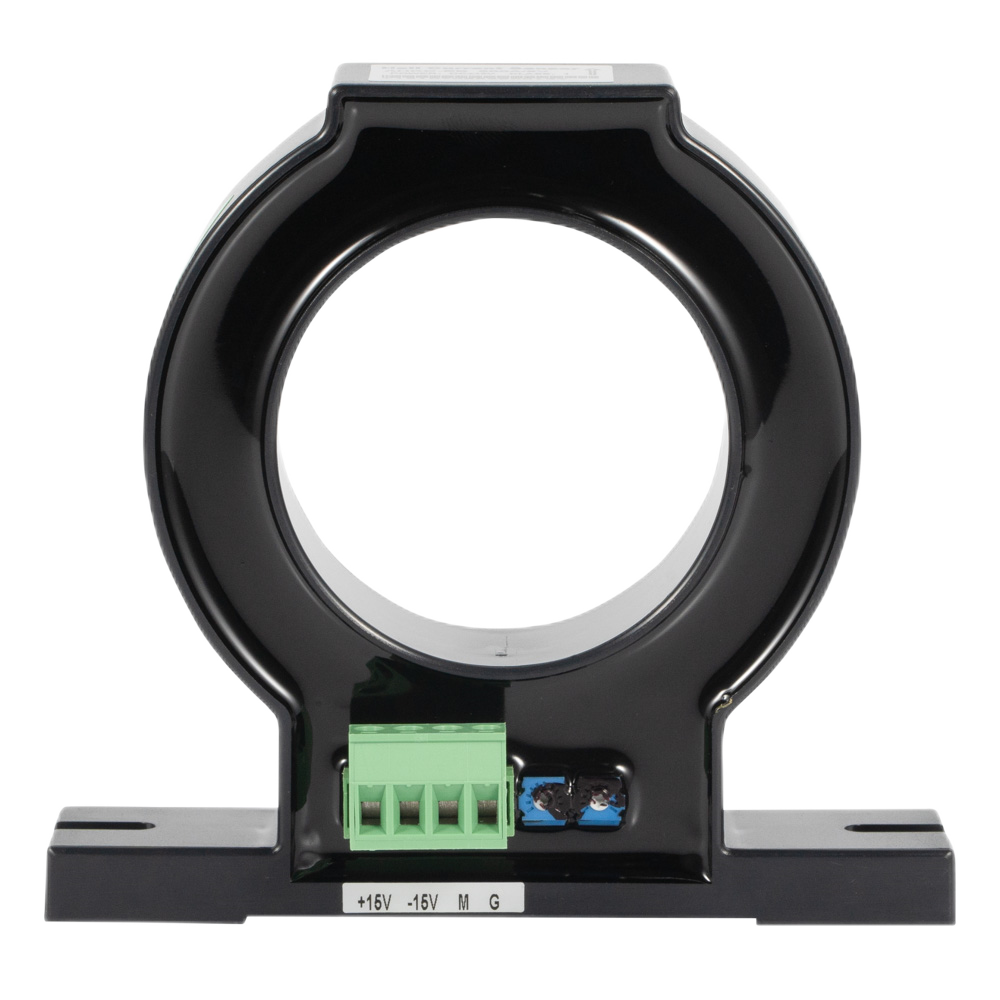

AHKC-EA |
0~(200-1000) A | 5V/4V | Φ40 | DC±12V/±15V |
|
AHKC-EB |
0~(500-1500) A | 5V/4V | Φ60 | DC±12V/±15V |
|
AHKC-LT |
0~(100-800) A | 5V/4V | Φ32.5 | DC±12V/±15V |
|

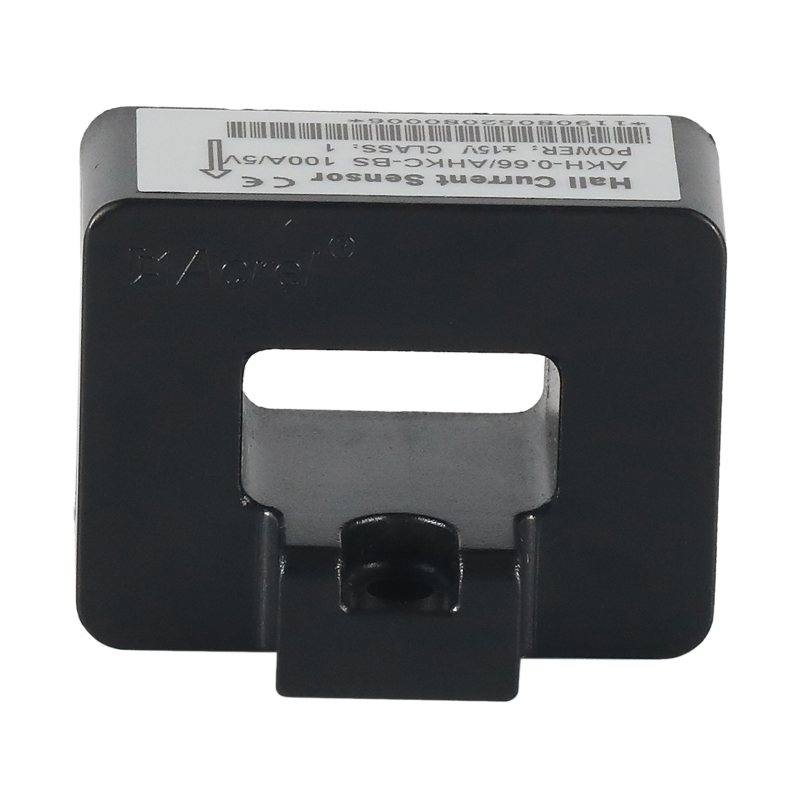

AHKC-BS |
0~(50-500) A | 5V/4V | 20.5*10.5 | DC±12V/±15V |
|
AHKC-C |
AC 0~(100-800) A | 5V/4V | 31*13 | DC±12V/±15V |
|
AHKC-BSA |
0~(50-500) A | DC 4-20mA | 20.5*10.5 | DC12V/24V |
|
AHKC-F |
0~(200-1000) A | 5V/4V | 43*13 | DC±12V/±15V |
|

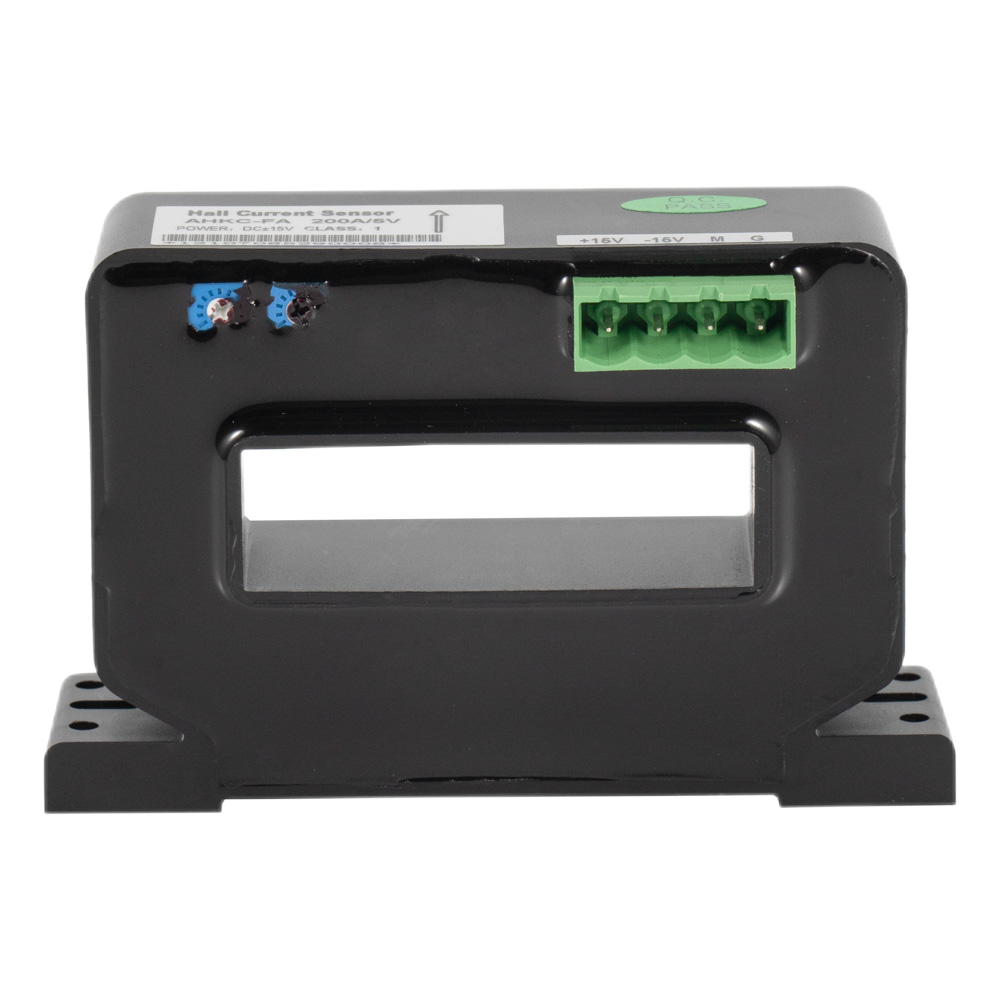

AHKC-FA |
0~(200-1500) A | 5V/4V | 52*15 | DC±12V/±15V |
|

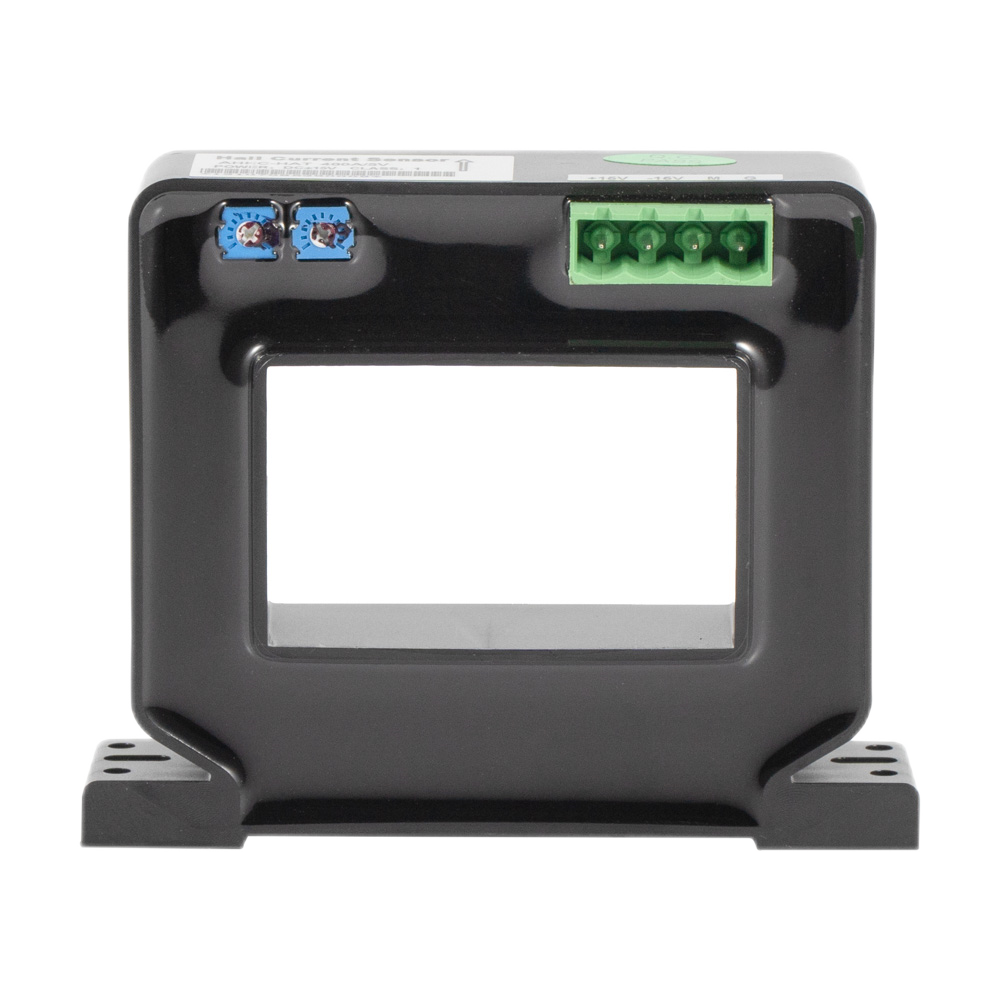

AHKC-HAT |
0~(400-2000) A | 5V/4V | 52*32 | DC±12V/±15V |

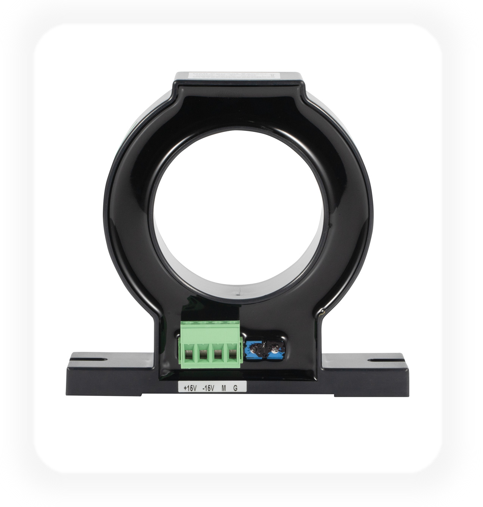

+15V —— power supply+15V
- 15V —— power supply-15V (Note that power positive and negative poles cannot be inversely connected.)
M —— signal output end positive pole
G —— power ground and signal output end negative pole
Interface Descriptions
