DESCRIPTION

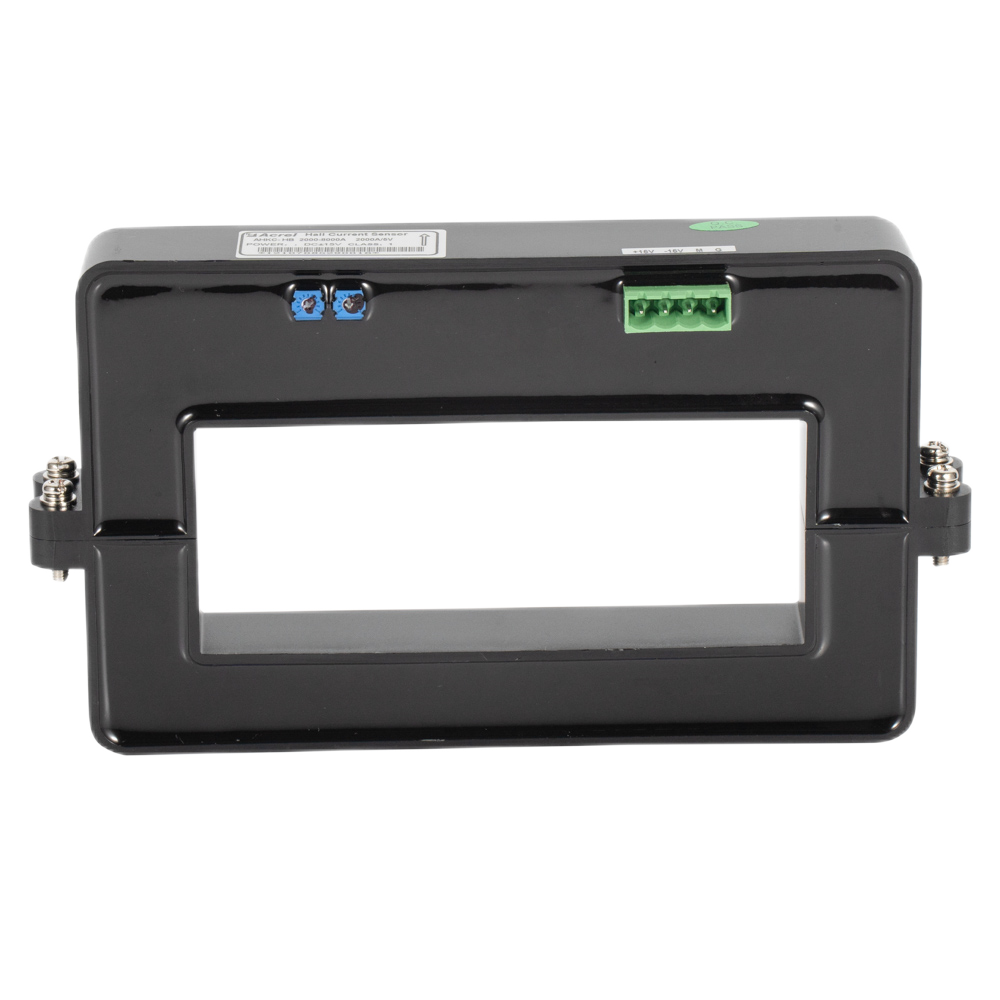

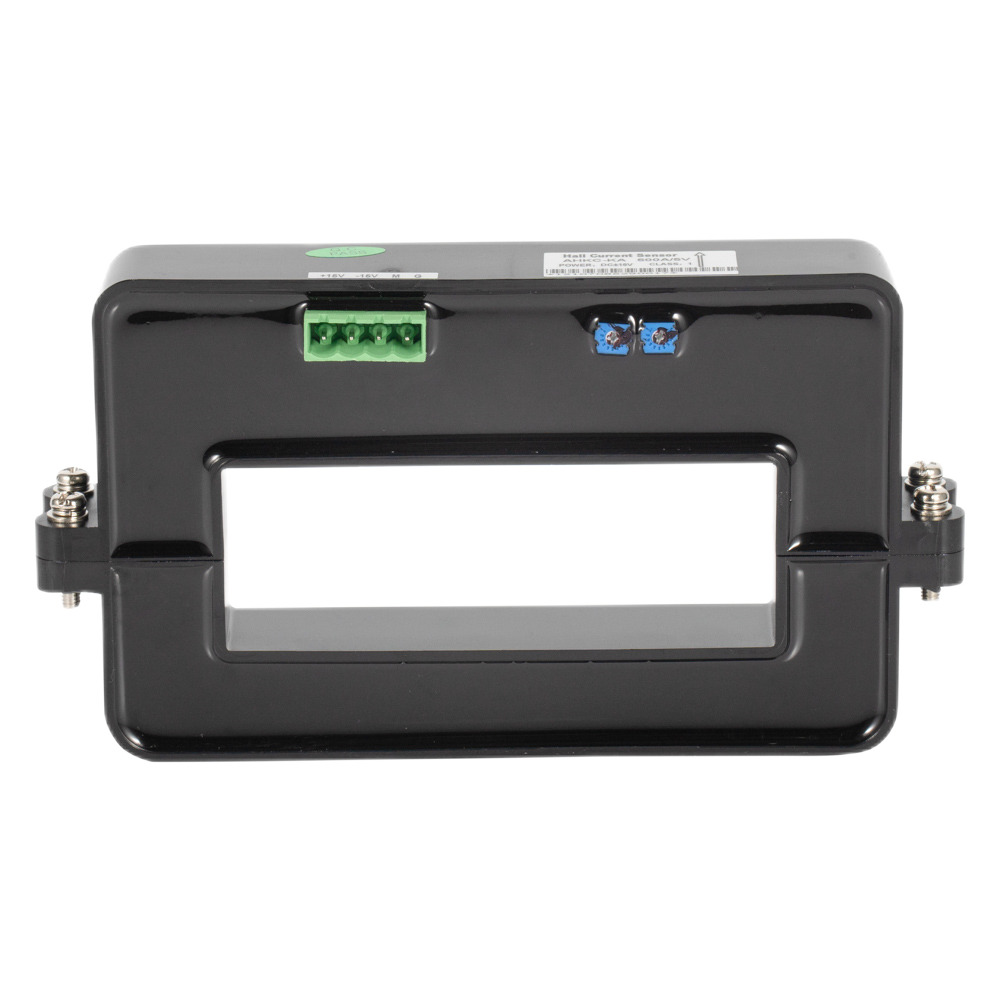

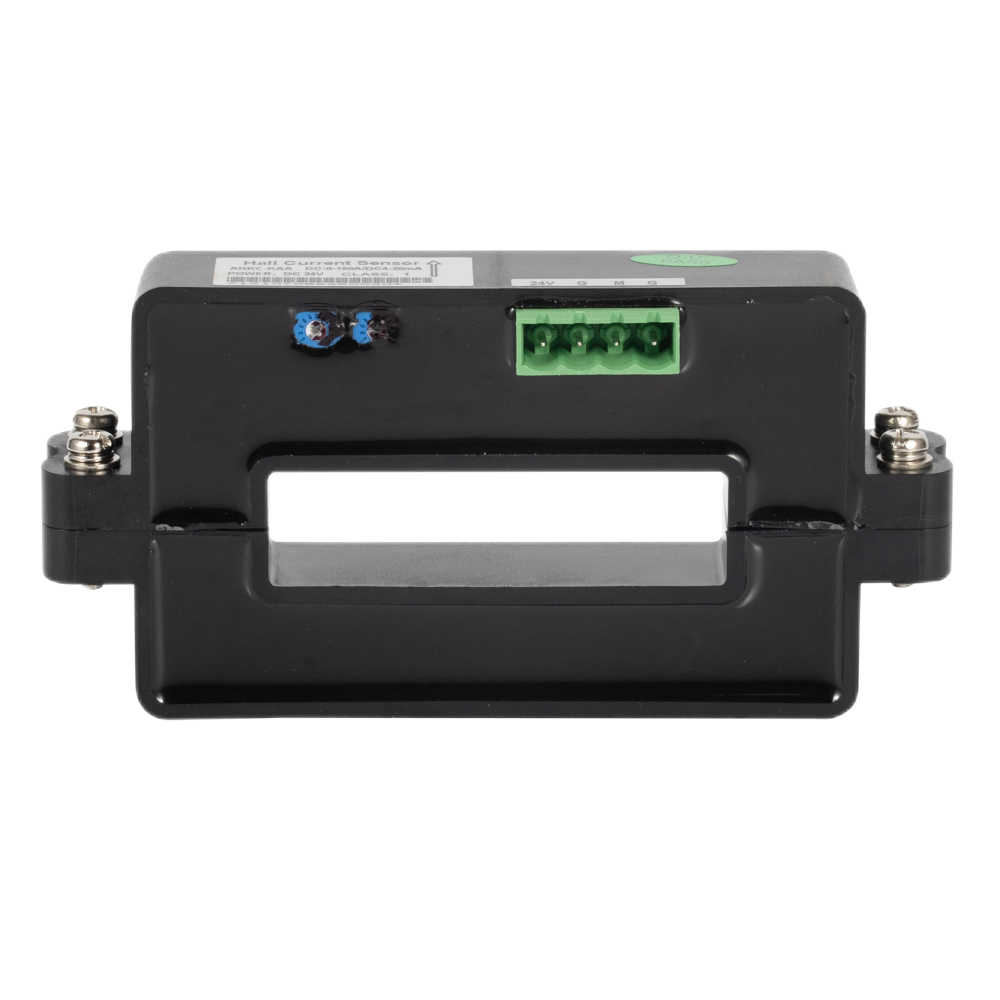

| It is insulative between the primary and secondary grade of AHKC series current sensor which can be used for measuring direct current, alternating current, and pulse current. |  |
|
 |
 |
|
|
Installation: Easy Installation |
Service: 24 Hour |
|
 |
 |
|
|
Certificate: CE/MID |
Quality: Quality Assurance
|
|
| Model | Rated Current Ratio (A) |
Rated output | Diameter (mm) | Power Supply |
|
AHKC-EKA |
0~(50-500) A |
5V/4V | Φ20 | DC±12V/±15V |
|
AHKC-EKAA |
DC 0~(50-500) A | DC 4-20 mA | Φ20 | DC12V/24V |
|
AHKC-EKDA |
AC 0~(50-500) A | DC 4-20 mA | Φ20 | DC12V/24V |
|
AHKC-EKB |
0~(200-1000) A | 5V/4V | Φ40 | DC±12V/±15V |
|
AHKC-EKBA |
DC 0~(200-1000) A | DC 4-20 mA | Φ40 | DC12V/24V |
|
AHKC-EKBDA |
AC 0~(200-1000) A | DC 4-20 mA | Φ40 | DC12V/24V |
|
AHKC-EKC |
0~(500-1500) A | 5V/4V | Φ55 | DC±12V/±15V |
|
AHKC-EKCA |
DC 0~(500-1500) A | DC 4-20 mA | Φ55 | DC12V/24V |
|
AHKC-EKCDA |
AC 0~(500-1500) A | DC 4-20 mA | Φ55 | DC12V/24V |
|

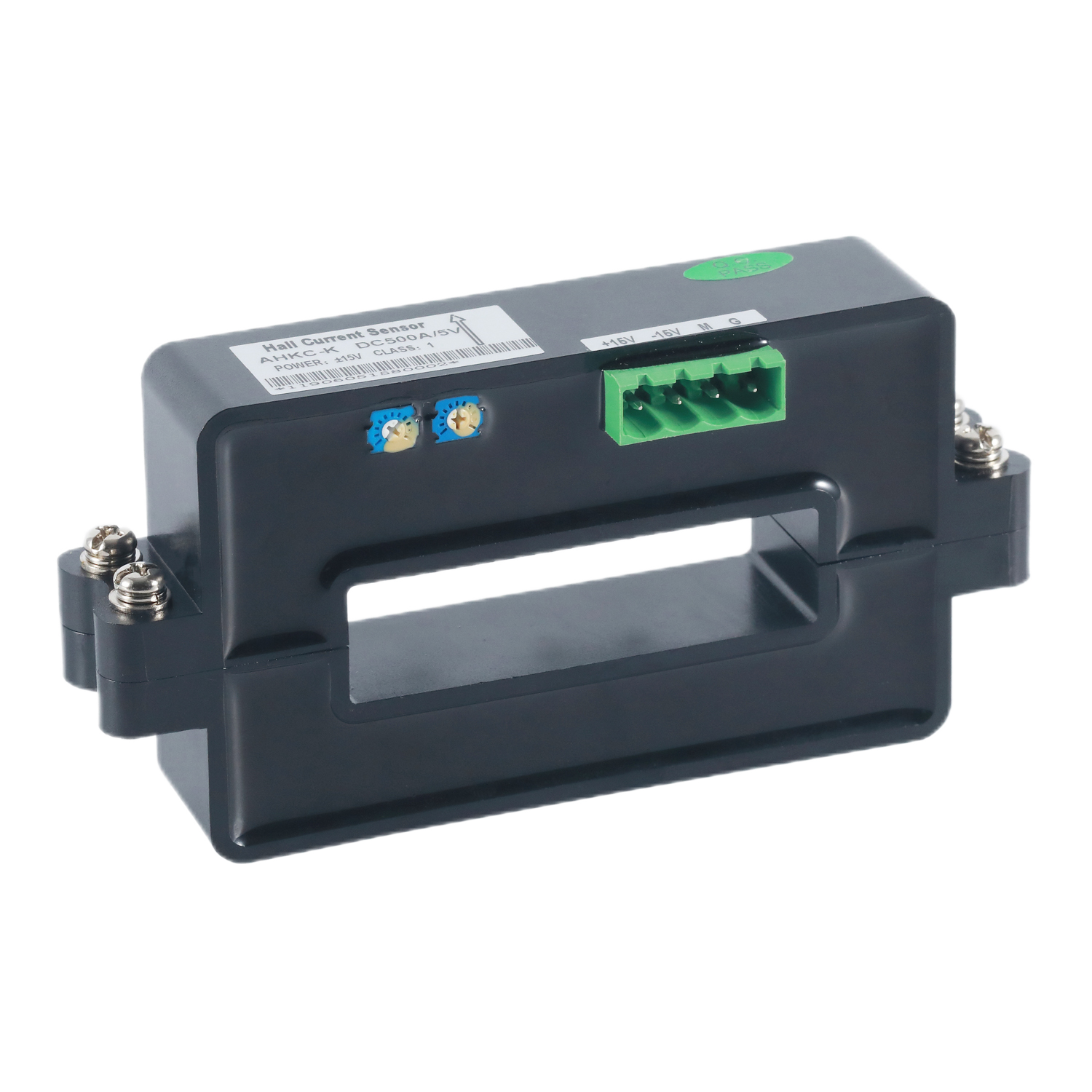

AHKC-K |
0~(400-2000) A | 5V/4V | 64*16 | DC±12V/±15V |
|
AHKC-KAA |
DC 0~(400-2000) A | DC 4-20 mA | 64*16 | DC12V/24V |
|
AHKC-KDA |
AC 0~(400-2000) A | DC 4-20 mA | 64*16 | DC12V/24V |
|
AHKC-H |
0~(500-3000) A | 5V/4V | 82*32 | DC±12V/±15V |
|
AHKC-KA |
0~(500-5000) A | 5V/4V | 104*36 | DC±12V/±15V |
|
AHKC-HB |
0~(2000-8000) A | 5V/4V | 132*52 | DC±12V/±15V |
| 0~(10000-20000) A | 5V/4V | 132*52 | DC±12V/±15V | |
|
AHKC-HBAA |
DC 0~(2000-8000) A | DC 4-20 mA | 132*52 | DC12V/24V |
| DC 0~(10000-20000) A | DC 4-20 mA | 132*52 | DC12V/24V | |
|
AHKC-HBDA |
DC 0~(2000-8000) A | DC 4-20 mA | 132*52 | DC12V/24V |
| DC 0~(2000-8000) A | DC 4-20 mA | 132*52 | DC12V/24V |

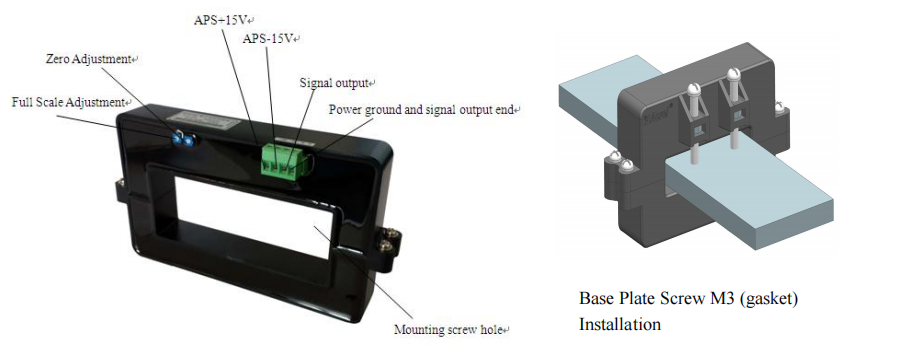

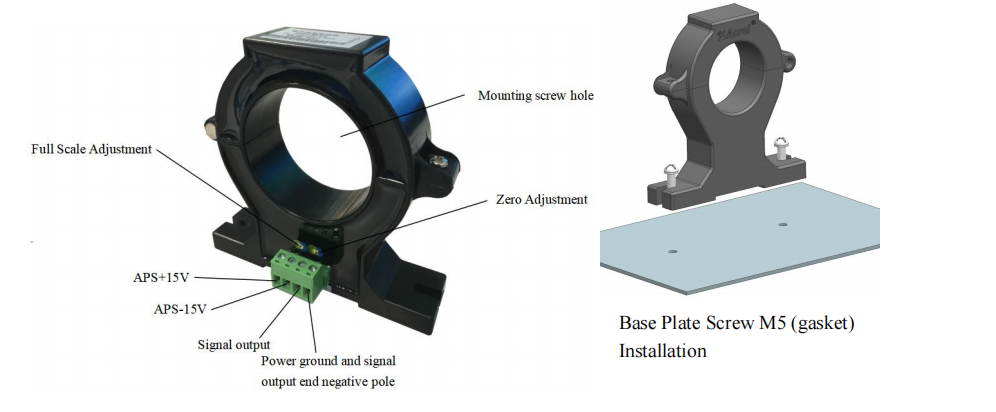

+15V —— power supply+15V
- 15V —— power supply-15V (Note that power positive and negative poles cannot be inversely connected.)
M —— signal output end positive pole
G —— power ground and signal output end negative pole
Interface Descriptions
