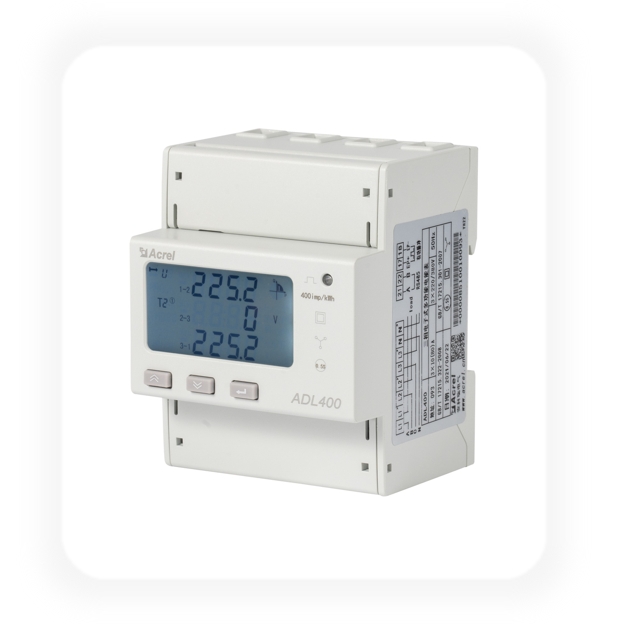

Three Phase Energy Meter
ADL400
Three Phase/LCD Display/Direct &CT Connect
DESCRIPTION
| ADL400 is a smart meter designed for power supply systems, industrial and mining enterprises, and utilities to calculate electricity consumption and manage electric demand. It features high precision, small size, and simple installation. It integrates the measurement of all electrical parameters with the comprehensive electricity metering and management provides various data on the previous 48 months, and checks the 31st harmonic content and the total harmonic content. |
 |
|
 |
 |
|
| Installation: Easy Installation |
Services: 24 Hour |
|
 |
 |
|
| Certificate: CE |
Quality: Quality Assurance |
|
 |
Project | Performance parameter | |||
| Specification | 3 phase 3 wires | 3 phase 4 wires | |||
| Measurement | Reference voltage | 3×100V、3×380V | 3×57.7/100V、 3×220/380V | ||
| Voltage range | 3×100V-3×450V | 3×57.7/100V - 3×260/450V | |||
| Consumption | <10VA(Single phase) | ||||
| Impedance | >2MΩ | ||||
| Accuracy class | Error±0.2% | ||||
| Input current | 3×1(6)A， 3×10(80)A | ||||
| Consumption | <1VA Single phase rated current | ||||
| Accuracy class | Error±0.2% | ||||
| Power | Active, reactive, apparent power, error±0.5℅ | ||||
| Frequency | 45～65Hz，Error±0.2% | ||||
| Metering | Energy | Active energy(Accuracy class: 0.5); reactive energy(Accuracy class 2) | |||
| Clock | ≤0.5s/d | ||||
| Digitsignal | Energy pulse output | 1 active photocoupler output | |||
| Communication | Interface and communication protocol |
RS485：Modbus RTU | |||
| Range of communication address |
Modbus RTU:1~ 254； | ||||

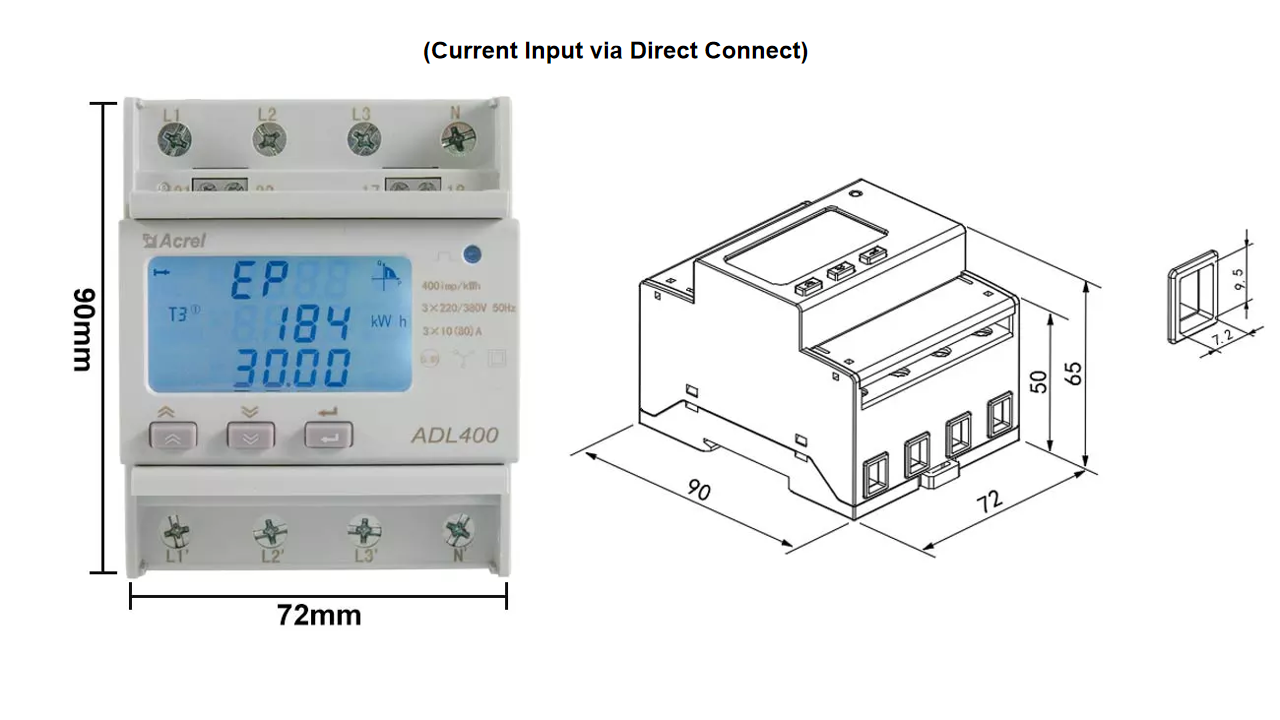

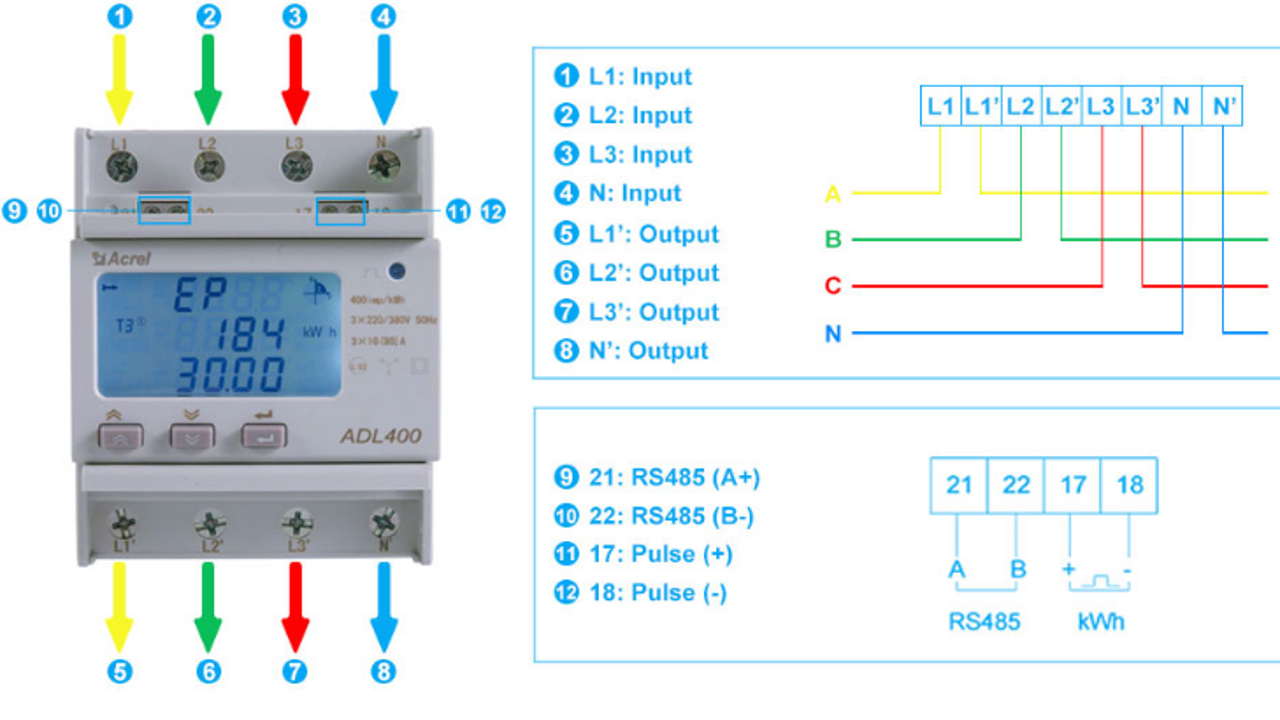

3P4W Direct Connect

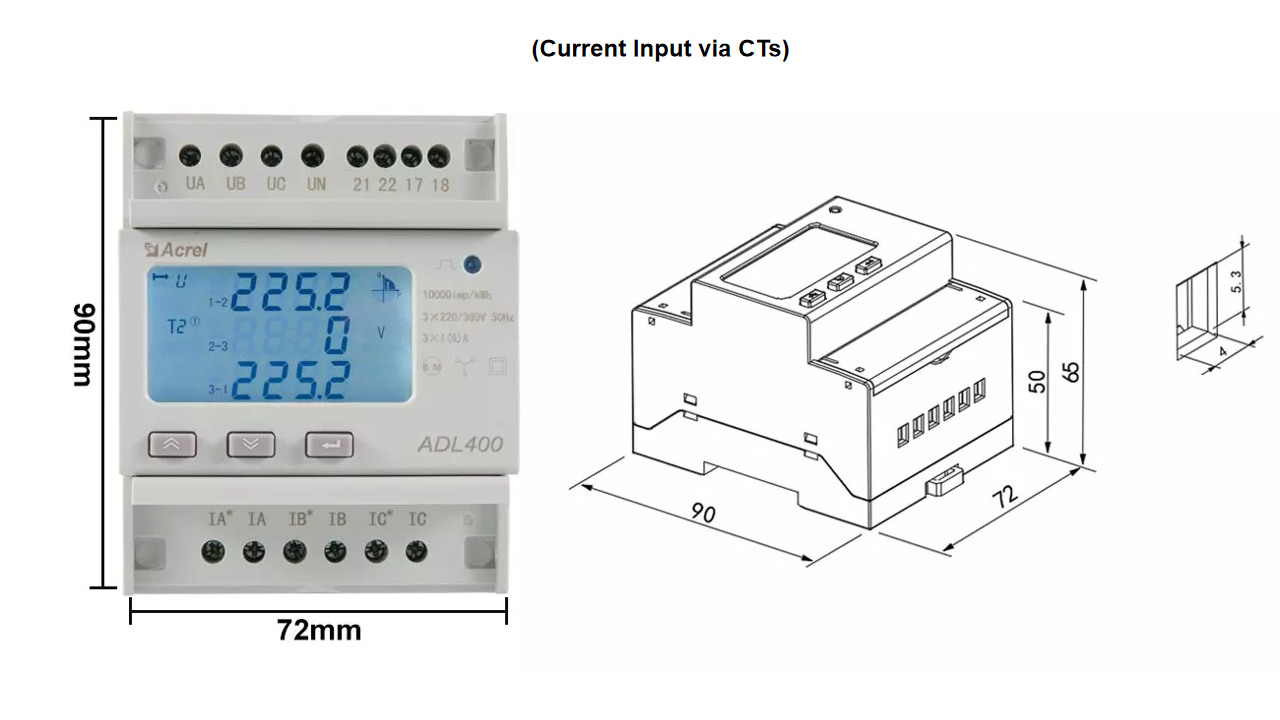

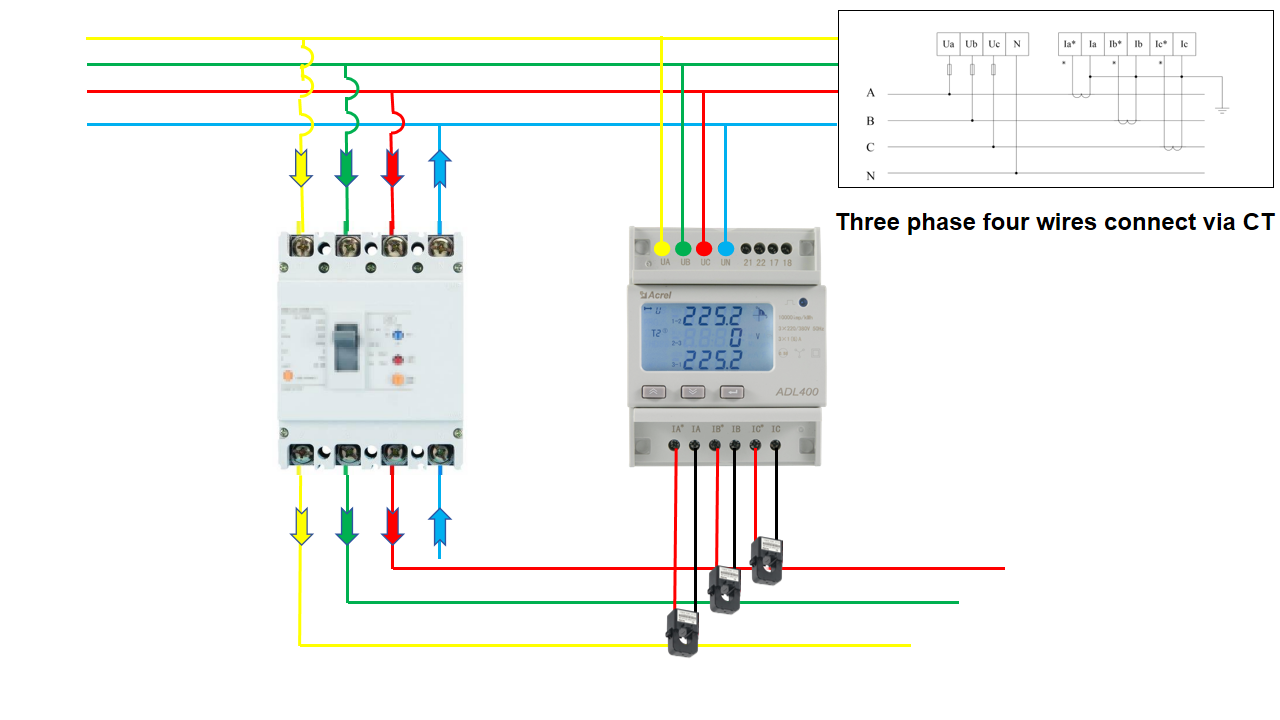

3P4W Direct Connect via CT

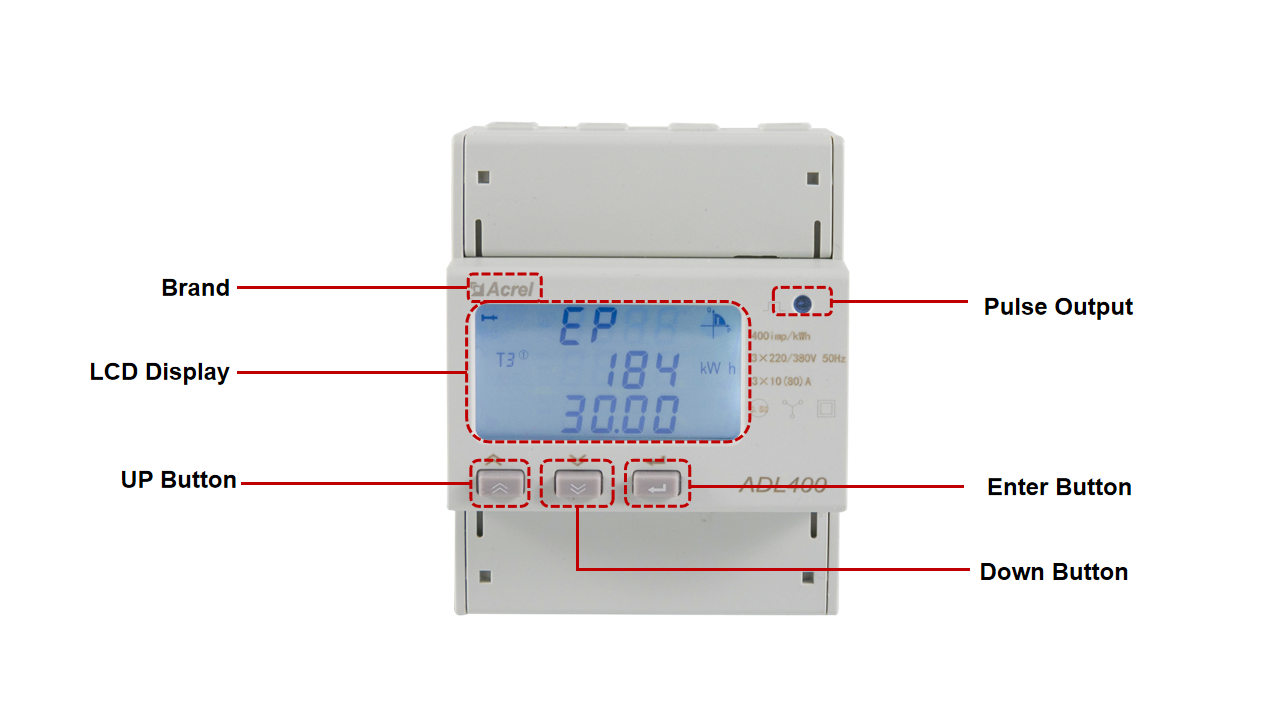

Interface Descriptions
