Panel DC Energy Meter
PZ96L-DE
DC Panel/Solar Power/Base Station/Charging Post
DESCRIPTION
|
PZ Series Intelligent DC energy meter is designed for DC panels, solar power supply, telecom base stations, charging piles and other applications. This series of instruments can measure the voltage, current, power, forward and reverse energy in DC system. It can not only be used for local display but also be connected with industrial control equipment and computer to form a measurement and control system. At the same time, it has a variety of peripheral interface functions for users to choose from: with RS-485 communication interface, using Modbus-RTU protocol; It can be equipped with relay alarm output and switch input/output. According to different requirements, through the instrument panel buttons, the transformation ratio and communication are set and controlled. |
 |
|
 |
 |
|

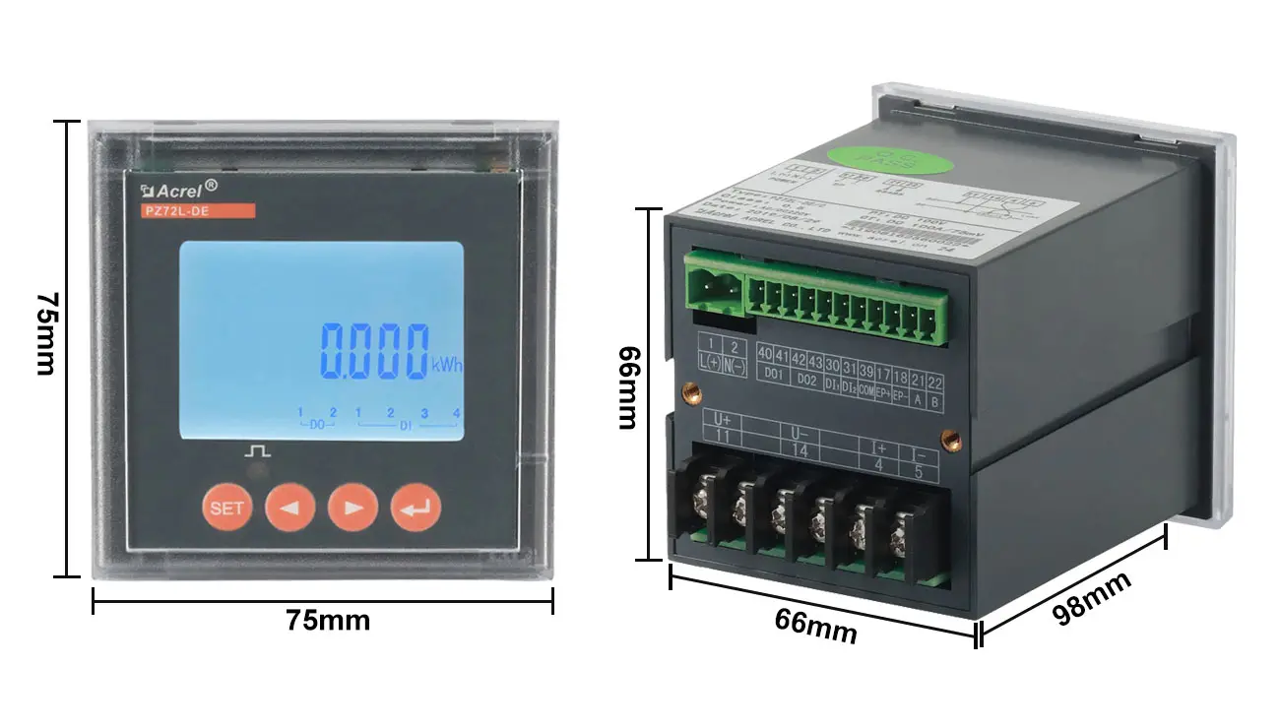

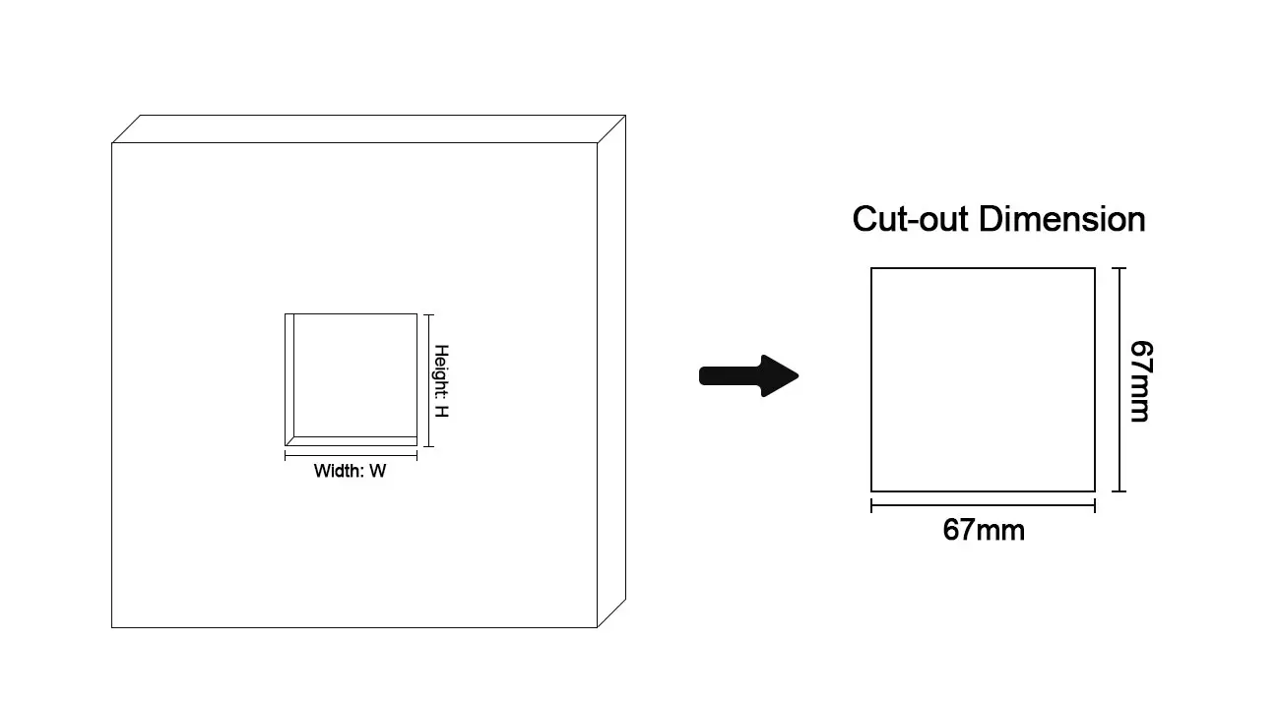

| Installation: Easy Installation |
Communication: |
|
 |
 |
|
| Certificate: CE/IEC |
Quality: Quality Assurance |
|
 |
Technical Parameter | Index | |||
| Signal | DC Voltage | Input Range | 0~100V,0~500V,0~1000V,1500V(Only PZ96(L)) | ||
| Input Impedance | ≥6KΩ/V | ||||
| DC Current | Input Range |
0～9999A(External shunt or Hall element, programmable range)
|
|||
| Diverter | The support output are 50mV and 75mV | ||||
| Hall Sensor | The support output are 0 ~ 20mA, 0 ~ 5V,4～ 20mA(unipolar) ,etc | ||||
| Consumption | ≤1mW | ||||
| Overload | 1.2 times continuous normal operation, 2 times continuous 1 second | ||||
| Accuracy class | 0.5 Class | ||||
| Pulse constant | Voltage and current specifications：750V、 300A ，default pulse constant：100imp/kWh | ||||
| Voltage and current specifications：1000V、300A ，default pulse constant：100imp/kWh | |||||
|
Voltage and current specifications：1000V、200A ，default pulse constant： 100imp/kWh
|
|||||
| Pulse Constant | Width of pulse | 80±20ms | |||
| Pulse constant | 400imp/kWh,10000imp/kWh(Correspond with the basic current) | ||||
| Operating voltage | Voltage range | 85～265VAC、50/60Hz; 20～60VDC; 12VDC; 100～350VDC(declare in order) | |||
| Consumption | ≤2W | ||||
DC Voltage Signal (1000V DC) Input via direct Connection & DC Current Signal (0~20mA or 4~20mA DC) input via Hall Sensors

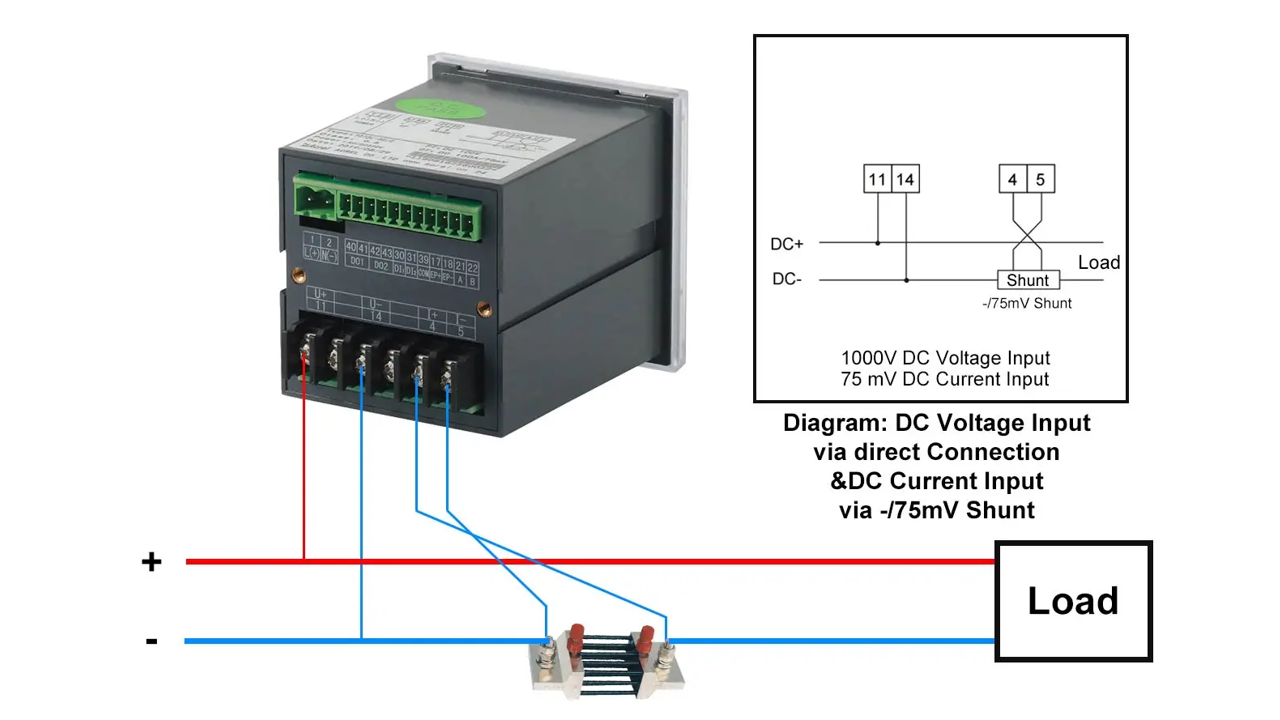

DC Voltage Signal (1000V DC) Input via direct Connection & DC Current Signal (75mV DC) input via -/75mV Shunts
