Acrel balcony photovoltaic meter

Acrel's new product is designed specifically for German balcony photovoltaics and can also be used for energy consumption monitoring in conventional application scenarios.

Meter Type: Single Phase:ADL200N-CT(for example:ADL200N-CT/D16-WF-1,D16 means 120A current range,WF means WIFI communication,1 means 1 channel with 1 single phase CT)

Three Phase:ADL400N-CT(for example:ADL400N-CT/D16-WF-2,D16 means 120A current range,WF means WIFI communication,2 means 2 channel with 2 three phase CT)

Advantage:

1.Dual-circuit online monitoring;
2.RJ12 connector transformer, no wiring required;
3.Press-to-connect voltage terminals, no screws required;
4.1P main module, saving installation space;
5.Wireless communication capability.

Application scenario topology diagram:

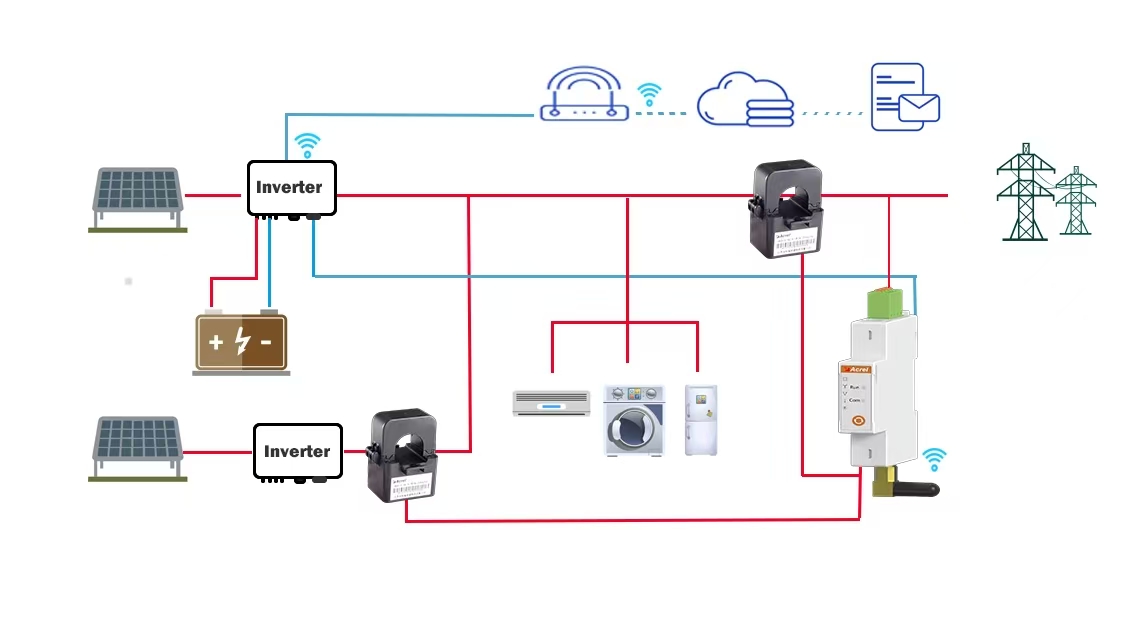

2 channels energy consumption monitoring, data upload, anti-backflow function

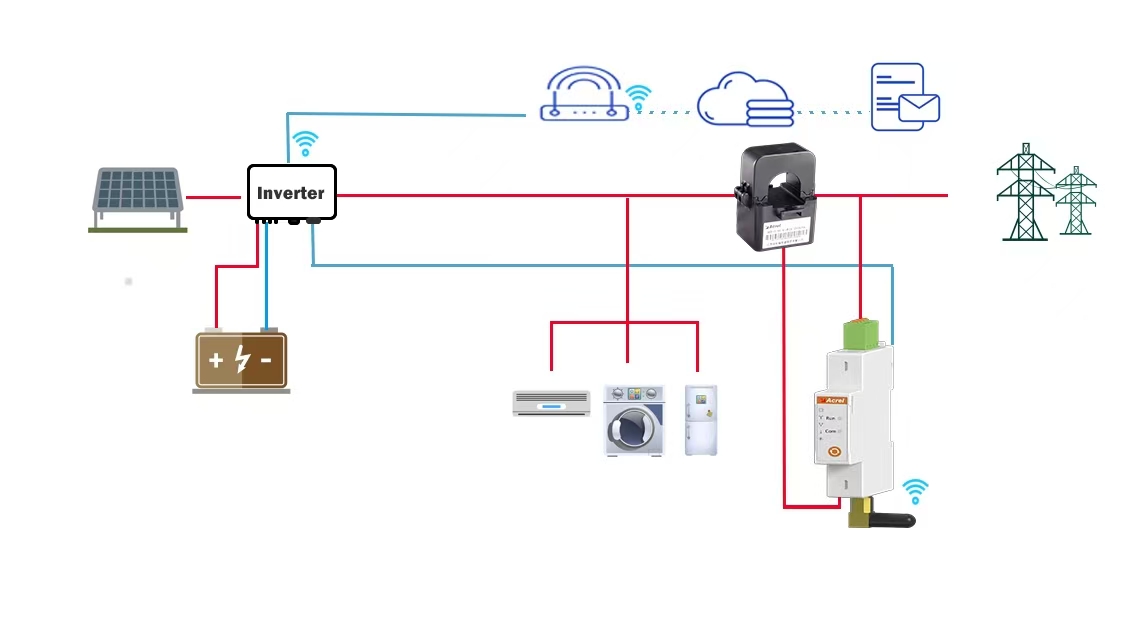

1 channel energy consumption monitoring, data upload, anti-backflow function
