DESCRIPTION

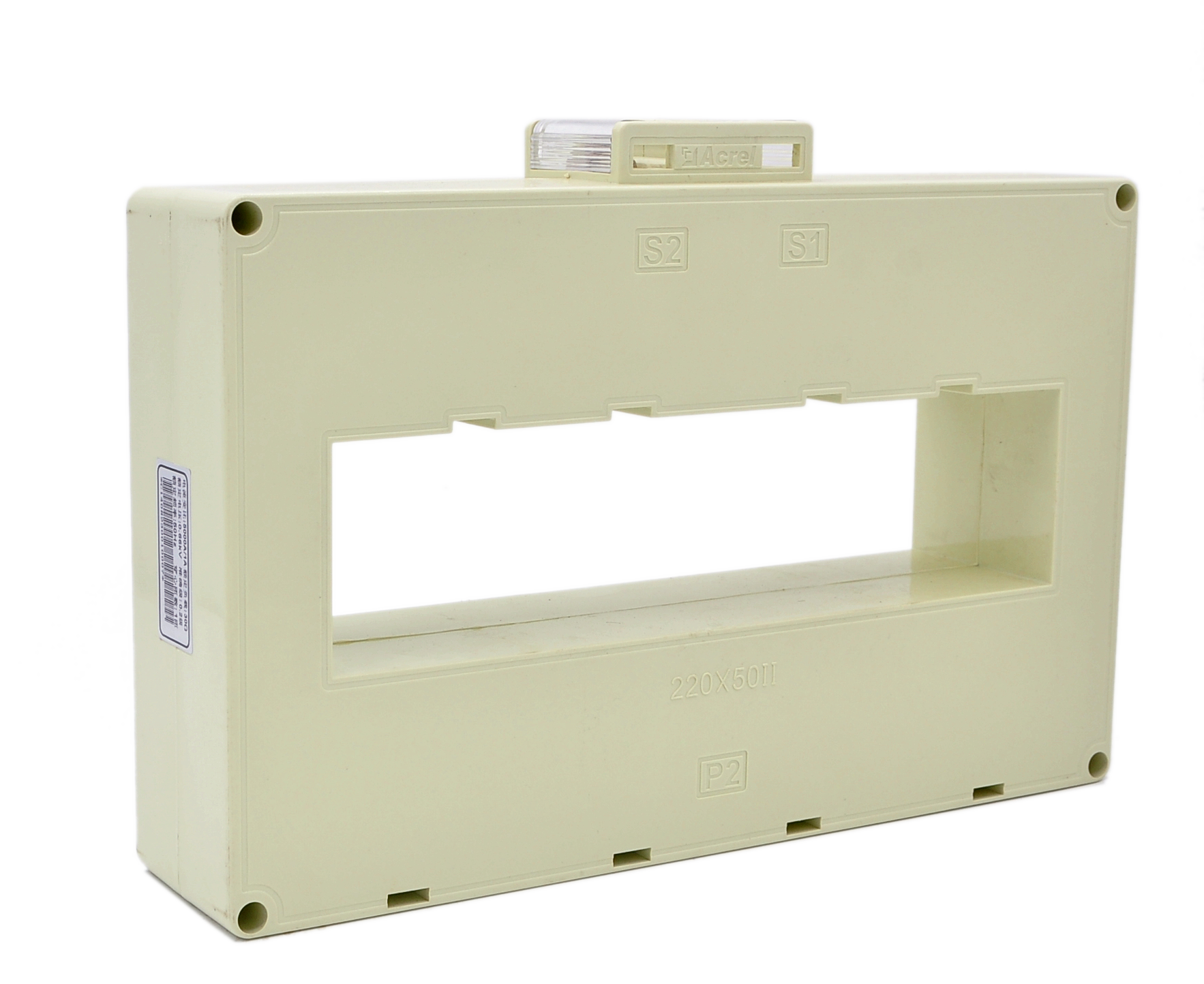

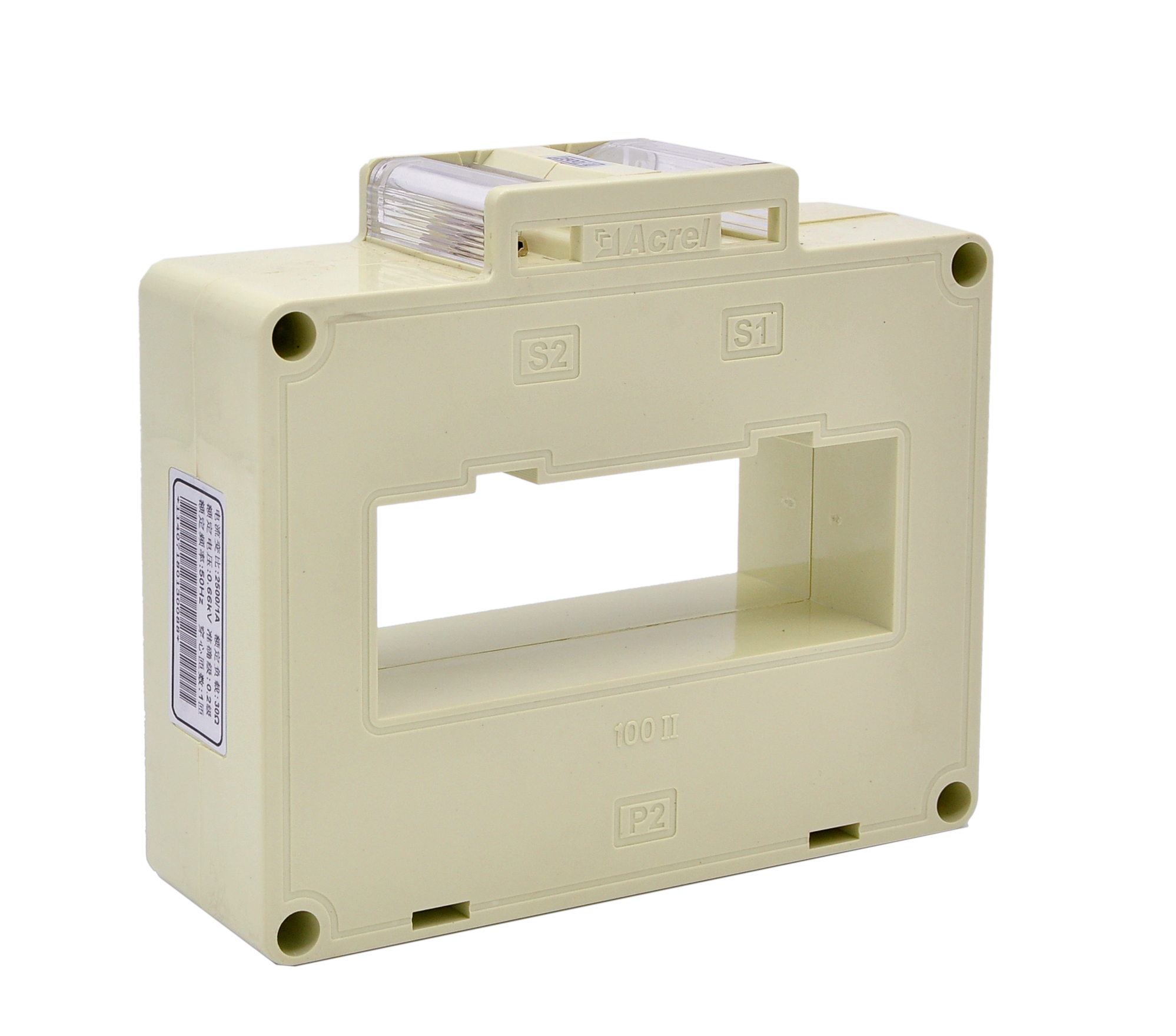

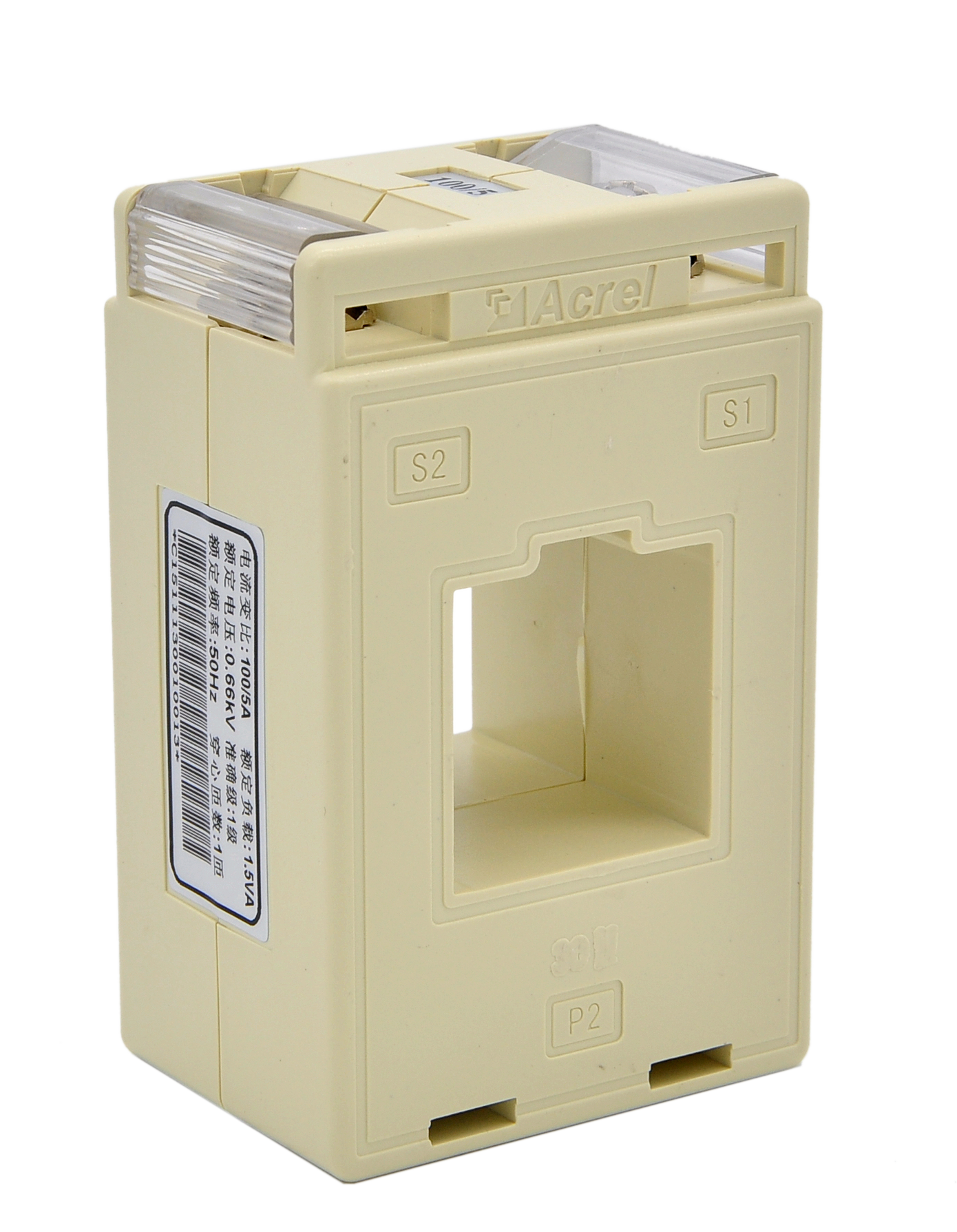

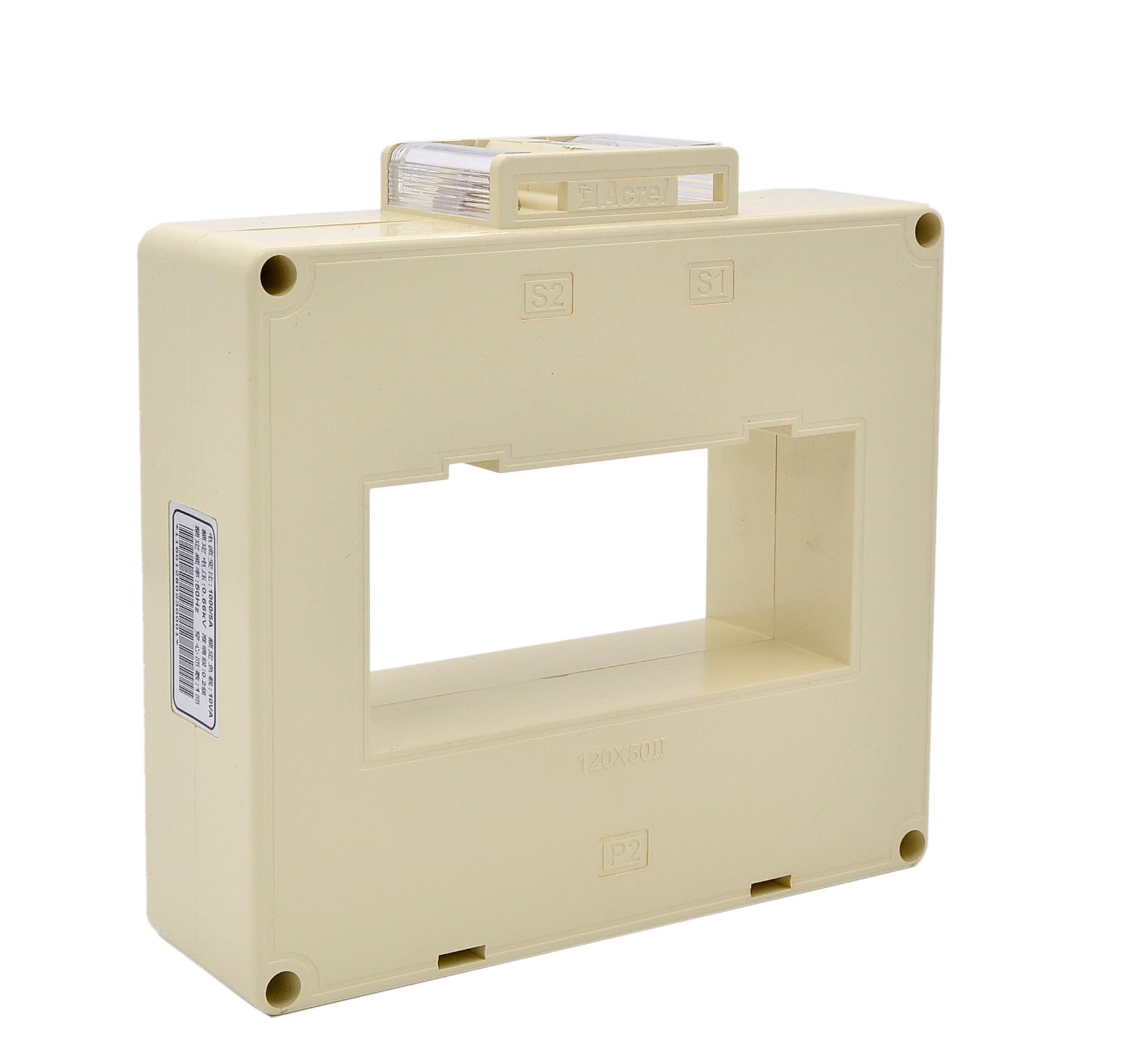

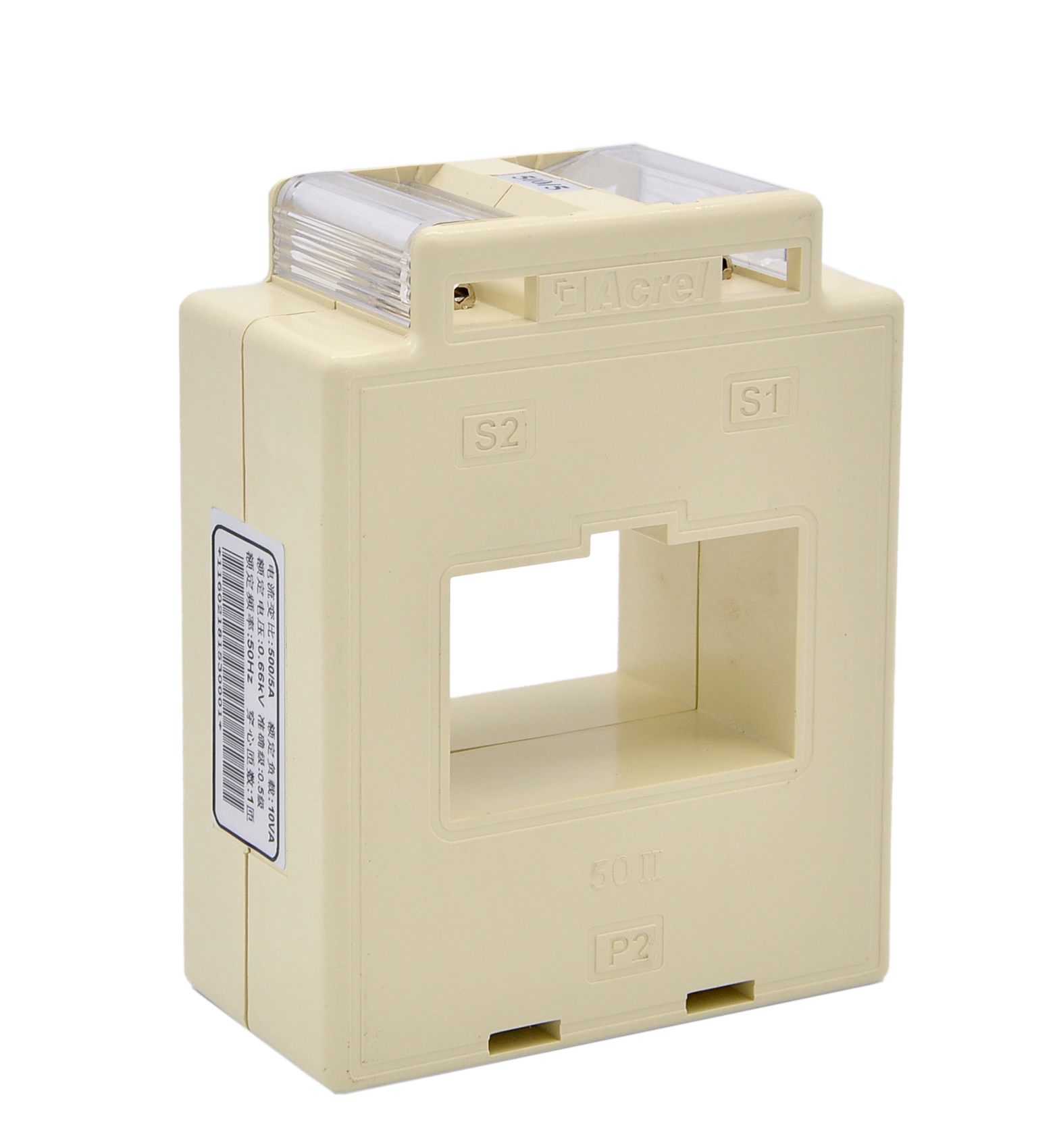

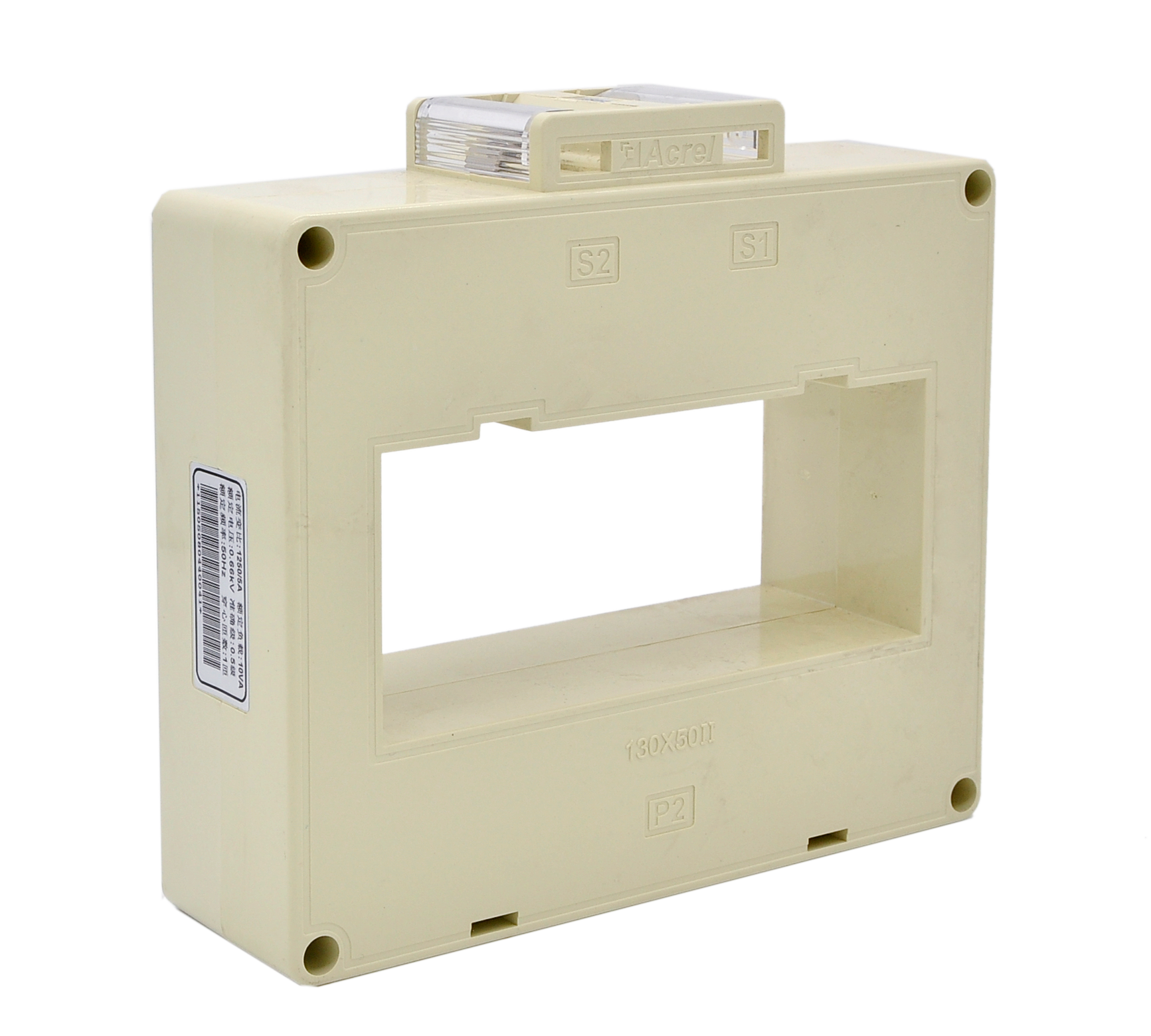

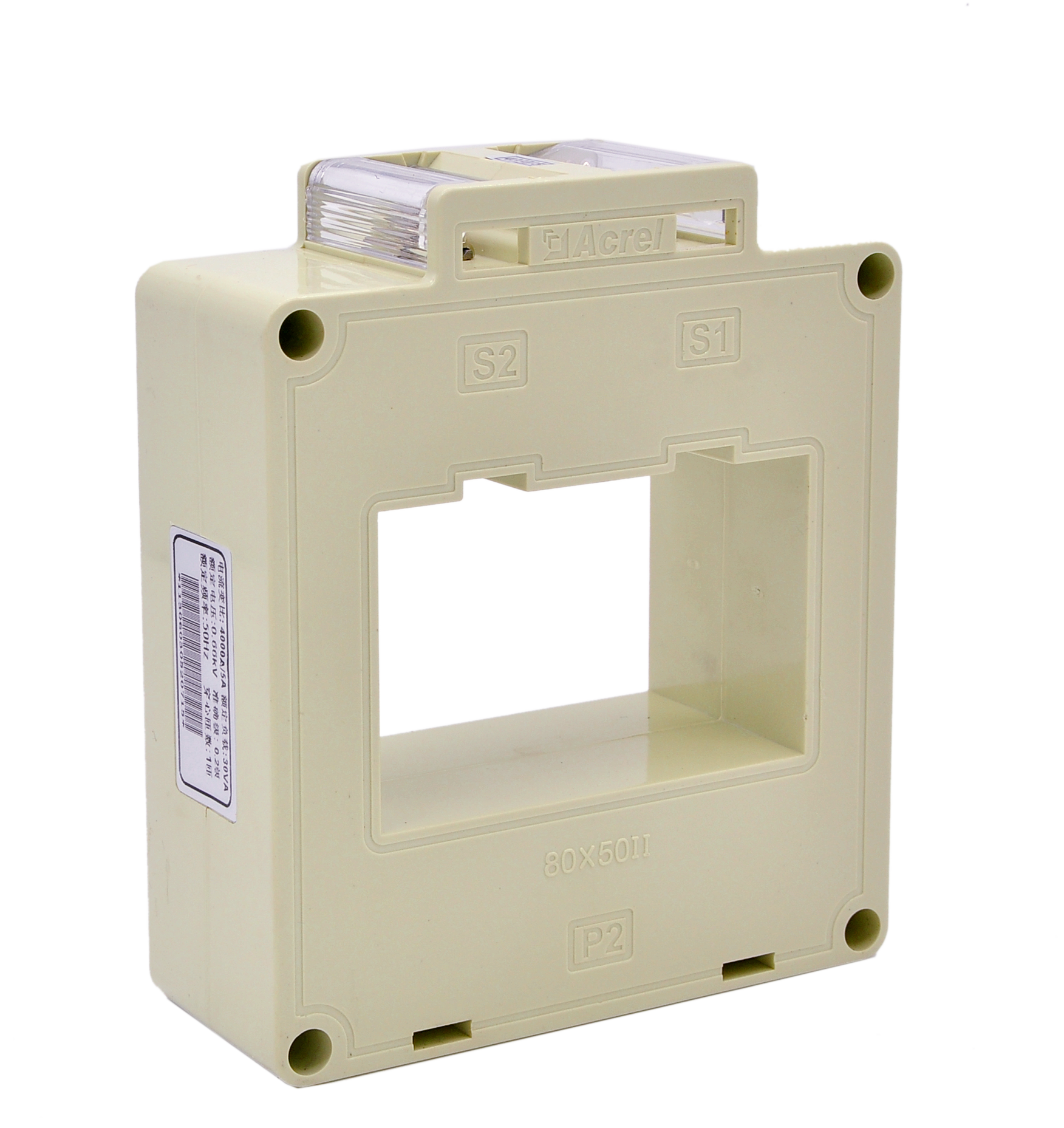

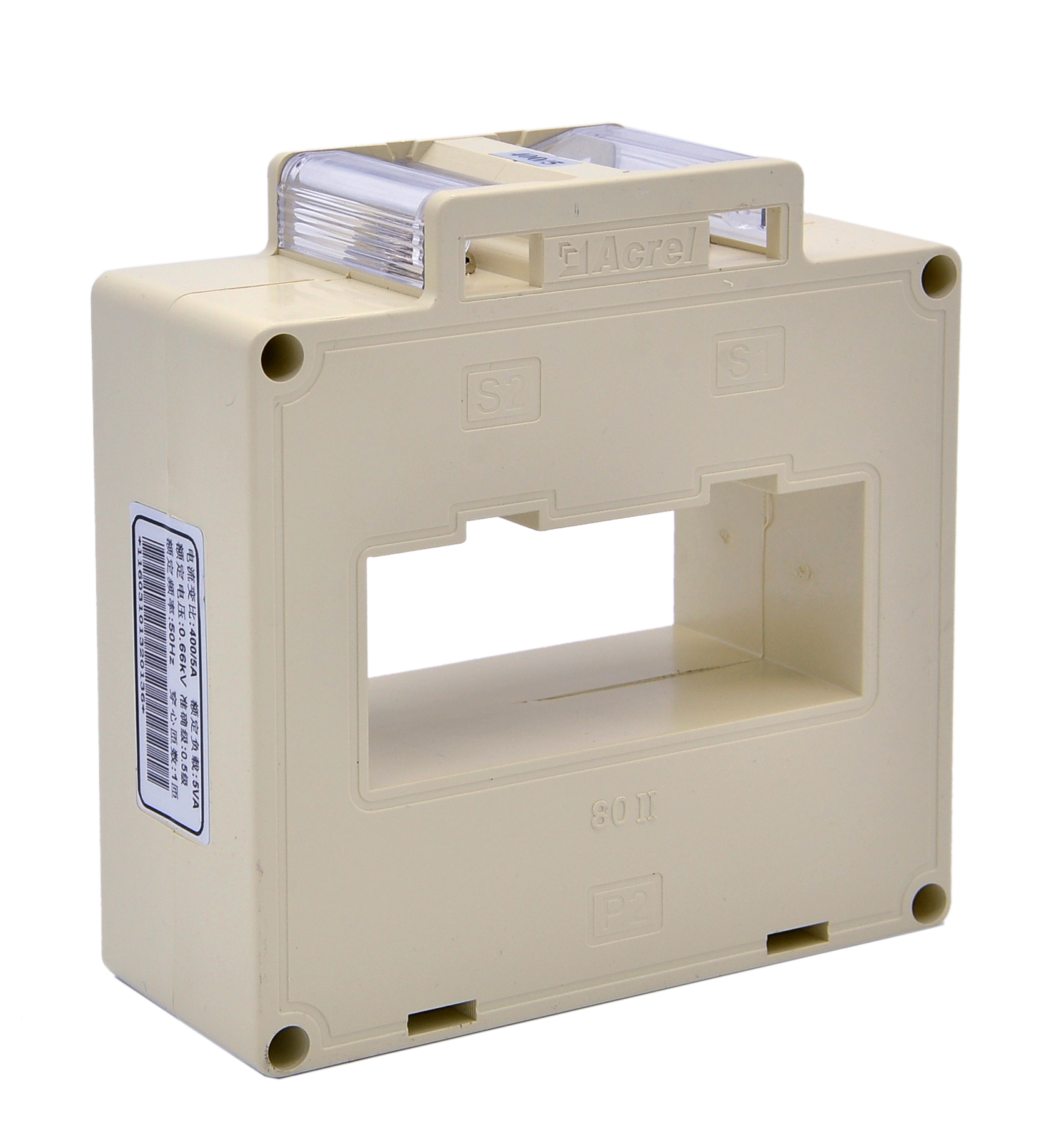

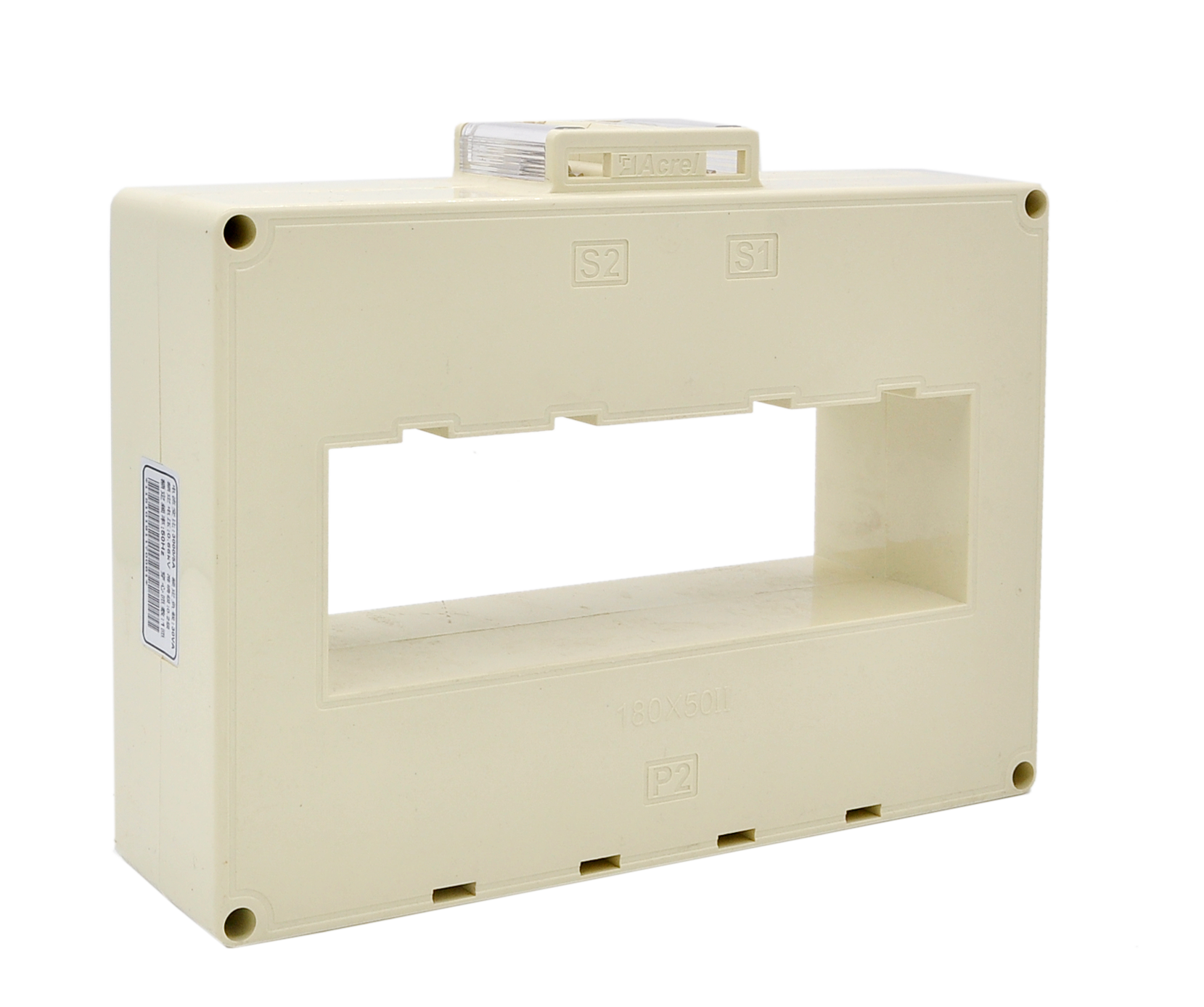

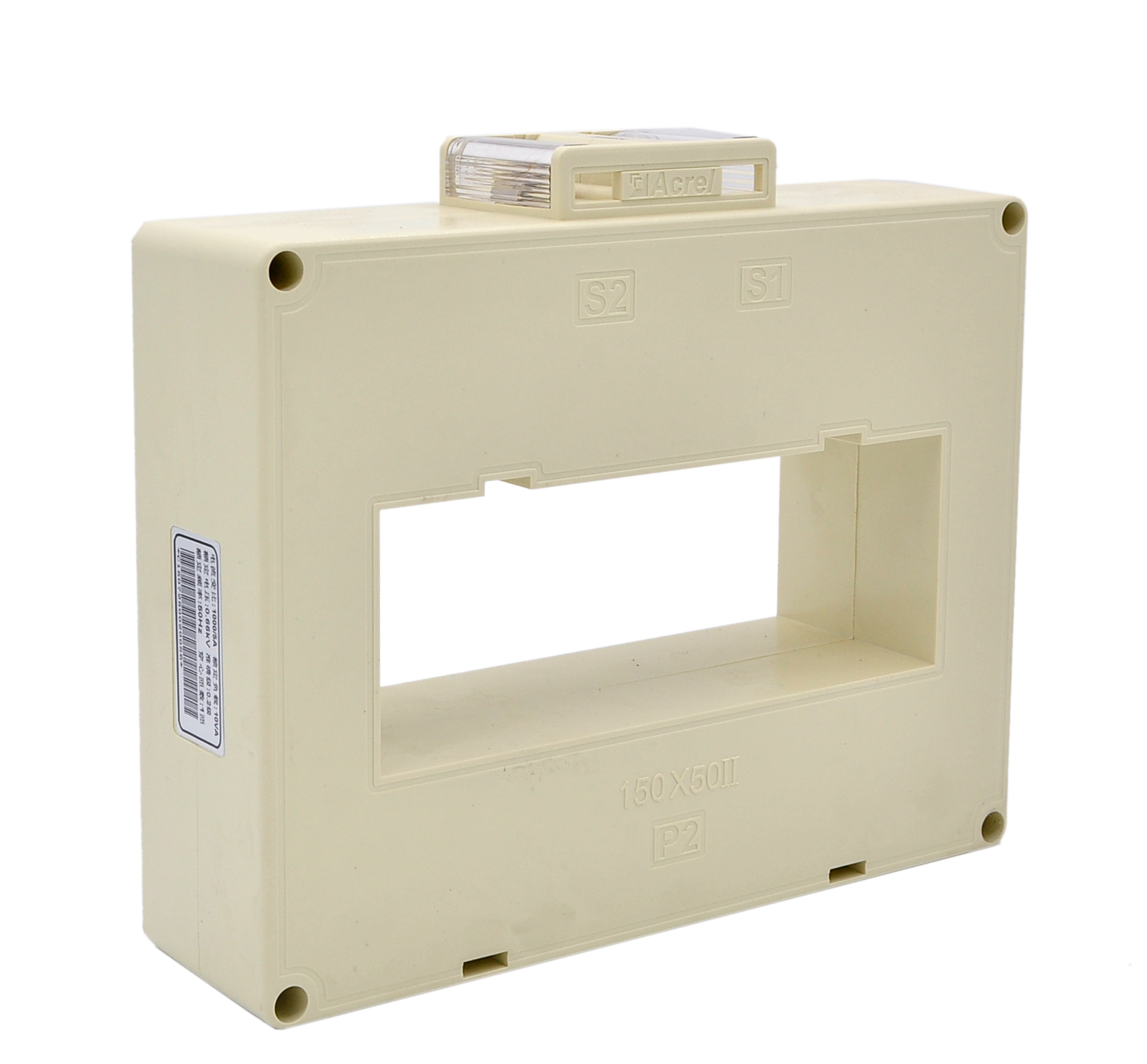

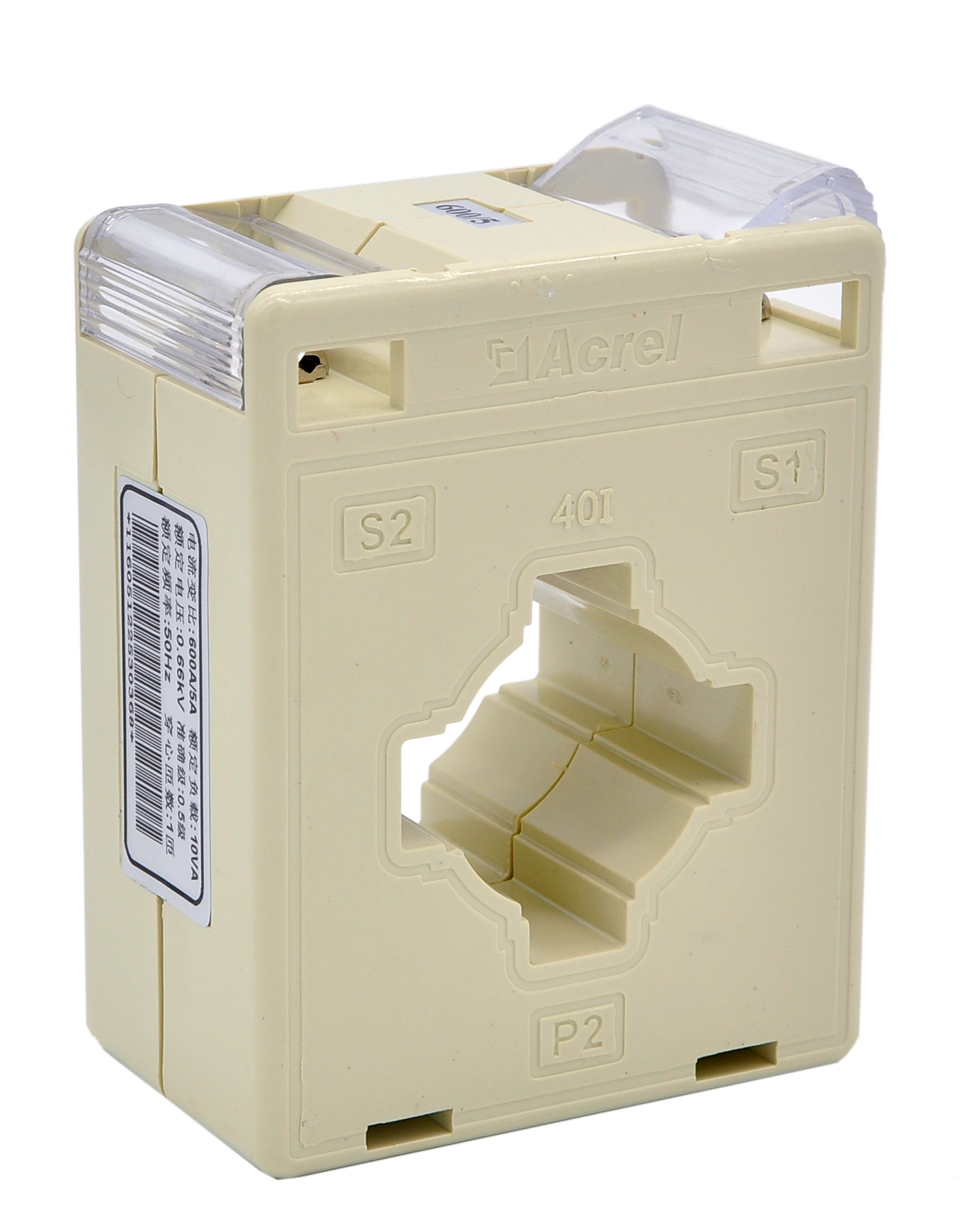

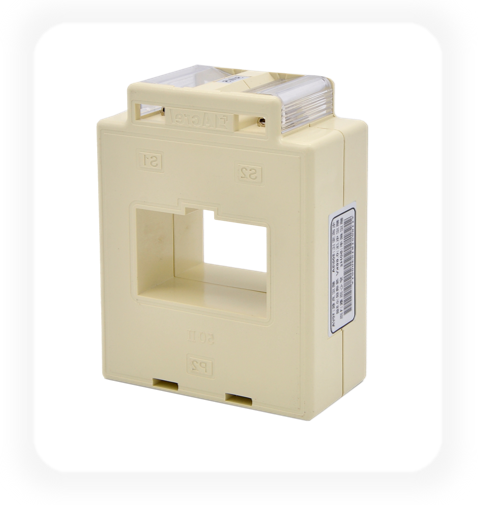

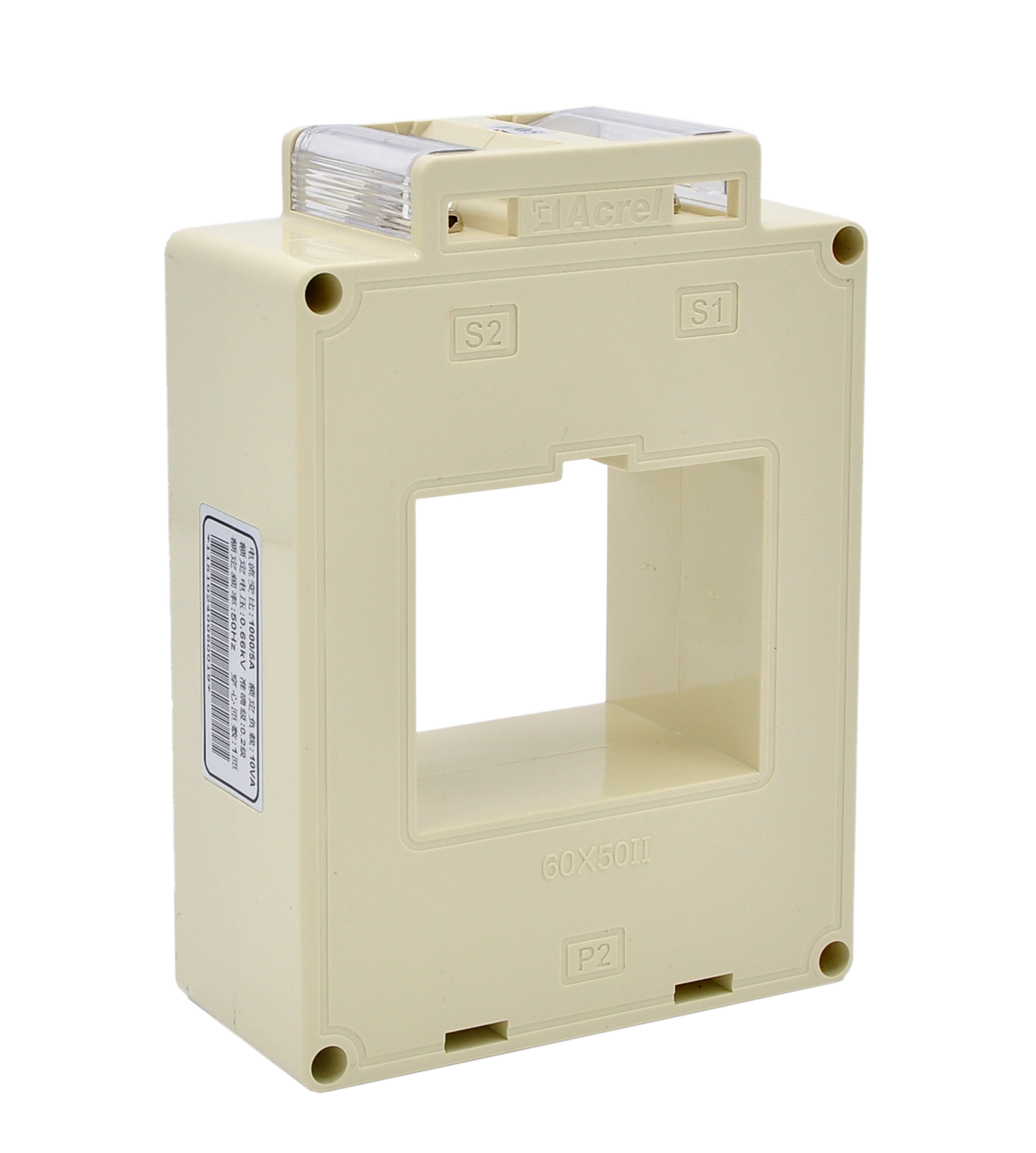

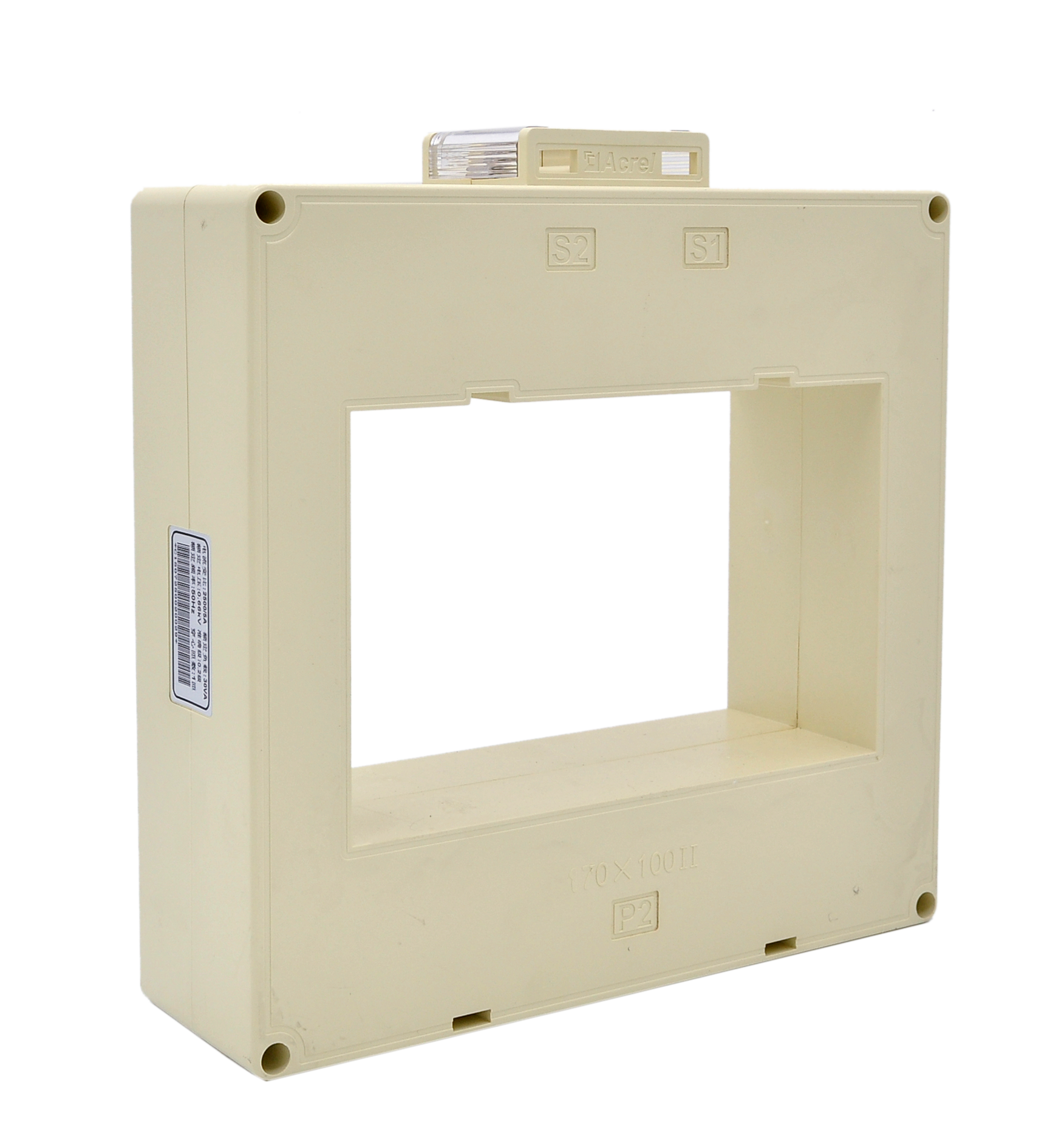

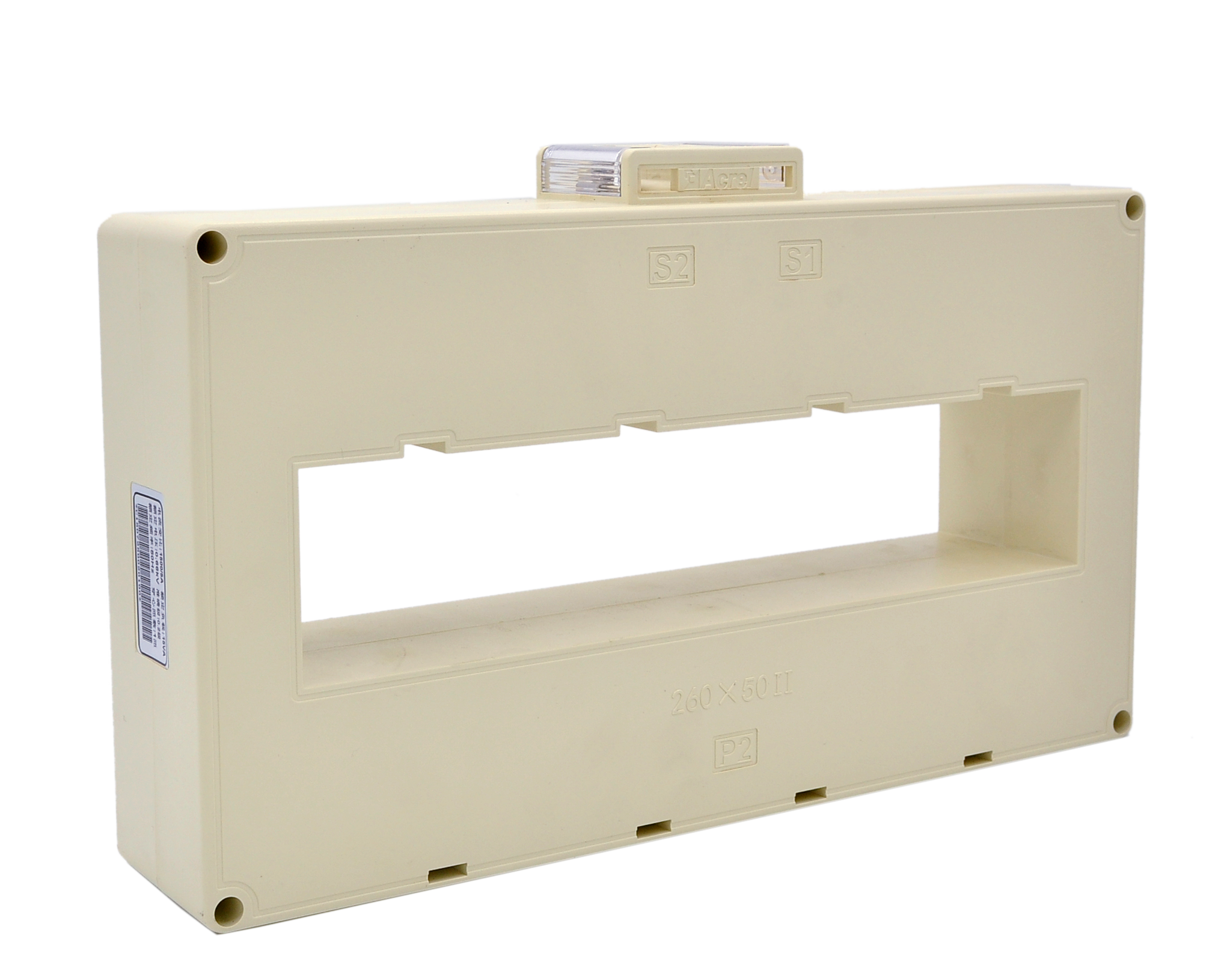

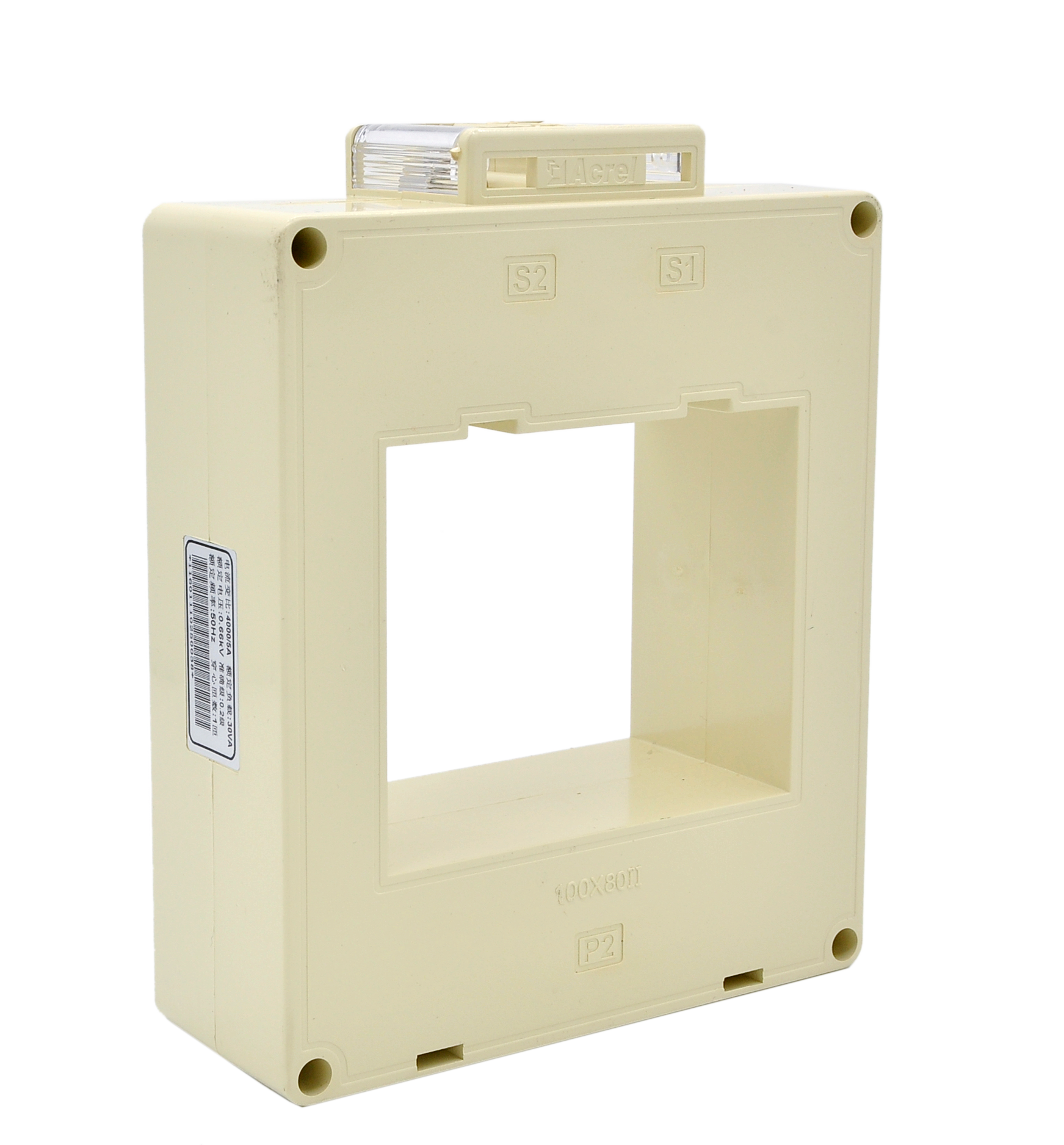

| AKH-0.66 II Series Current Transformer Horizontal square hole type, they can pass through 1-6 bar bus and also pass through multiple cables. They are generally used with electrical measuring instruments, and widely used in electrical sets. |  |
|
 |
 |
|
|
Installation: Easy Installation |
Service: 24 Hour |
|
 |
 |
|
|
Certificate: CE/MID |
Quality: Quality Assurance |
|
| Specification | Rated Current Ratio (A) |
Precision Degree And Corresponding Rated Load (VA) |

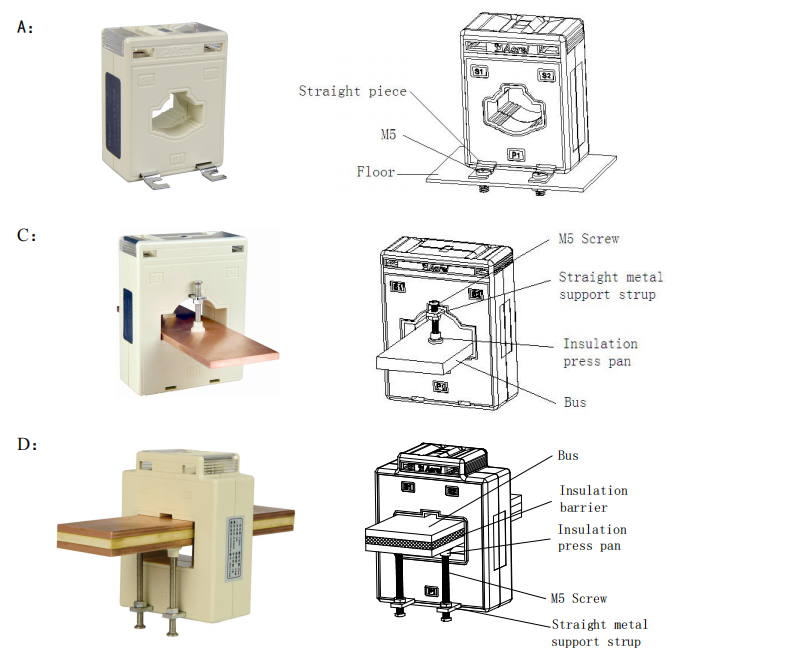

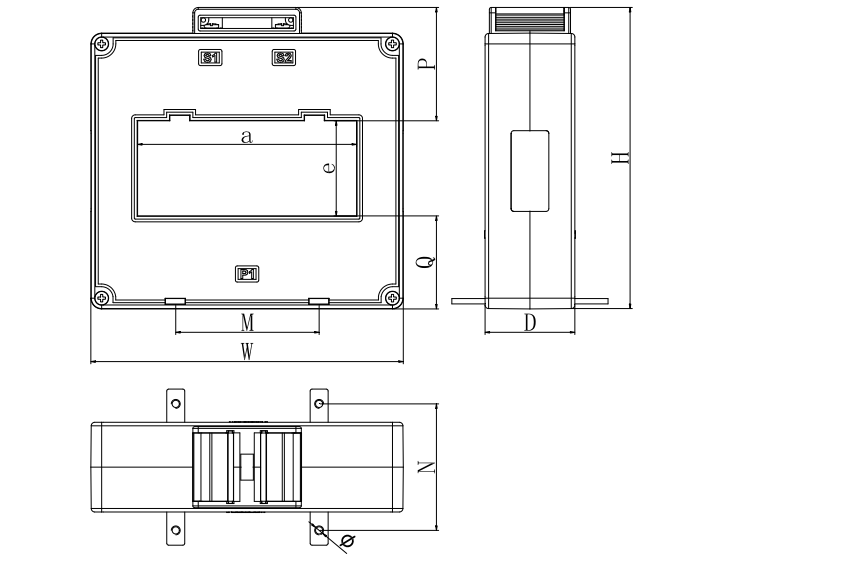

Straight-Through Tums | Bus spec (mm) / Number | Installation | ||
| 0.2 | 0.5 | 1 | |||||
|
30II |
100/5(1) | 1.5 | 1 | 30*10/1-2 | A, C | ||
| 150/5(1) | 1.5 | 1 | |||||
| 200/5(1) | 2.5 | 1 | |||||
| 250/5(1) | 3.75 | 1 | |||||
| 300-450/5(1) | 5 | 1 | |||||
| 500/5(1) | 10 | 1 | |||||
| 600/5(1) | 10 | 1 | |||||
|
40II |
100/5(1) | 1.5 | 1 | 40*10/1-2 | A, C | ||
| 150/5(1) | 2.5 | 1 | |||||
| 200/5(1) | 2.5 | 1 | |||||
| 250/5(1) | 3.75 | 1 | |||||
| 300-450/5(1) | 5 | 1 | |||||
| 500-800/5(1) | 10 | 1 | |||||
| 1000/5(1) | 10 | 1 | |||||
|
50II |
150/5(1) | 2.5 | 1 | 50*10/1-2 | |||
| 200-250/5(1) | 2.5 | 1 | |||||
| 300-450/5(1) | 5 | 1 | |||||
| 500-800/5(1) | 10 | 1 | |||||
| 1000-1250/5(1) | 10 | 1 | |||||
| 1500/5(1) | 20 | 1 | |||||
|
60II |
200-250/5(1) | 2.5 | 1 | 60*10/1-2 | C | ||
| 300-450/5(1) | 5 | 1 | |||||
| 500-800/5(1) | 10 | 1 | |||||
| 1000-1250/5(1) | 10 | 1 | |||||
| 1500-2000/5(1) | 20 | 1 | |||||
| 2500/5(1) | 30 | 1 | |||||
|
60*50II |
200-250/5(1) | 2.5 | 1 | 60*10/1-3 | D | ||
| 300-450/5(1) | 5 | 1 | |||||
| 500-800/5(1) | 10 | 1 | |||||
| 1000-1250/5(1) | 10 | 1 | |||||
| 1500-2000/5(1) | 20 | 1 | |||||
| 2500/5(1) | 30 | 1 | |||||
|
80II |
200-250/5(1) | 2.5 | 1 | 80*10/1-2 | |||
| 300-450/5(1) | 5 | 1 | |||||
| 500-800/5(1) | 10 | 1 | |||||
| 1000-1250/5(1) | 10 | 1 | |||||
| 1500-2000/5(1) | 20 | 1 | |||||
| 2500-3000/5(1) | 30 | 1 | |||||
|
80*50II |
200-250/5(1) | 2.5 | 1 | 80*10/1-3 | |||
| 300-450/5(1) | 5 | 1 | |||||
| 500-800/5(1) | 10 | 1 | |||||
| 1000-1250/5(1) | 10 | 1 | |||||
| 1500-2000/5(1) | 20 | 1 | |||||
| 2500-3000/5(1) | 30 | 1 | |||||
|
100II |
300-450/5(1) | 5 | 1 | 100*10/1-2 | |||
| 500-800/5(1) | 10 | 1 | |||||
| 1000-1250/5(1) | 10 | 1 | |||||
| 1500-2000/5(1) | 20 | 1 | |||||
| 2500-4000/5(1) | 30 | 1 | |||||
|
100*50II |
300-450/5(1) | 5 | 1 | 100*10/1-3 | |||
| 500-800/5(1) | 10 | 1 | |||||
| 1000-1250/5(1) | 10 | 1 | |||||
| 1500-2000/5(1) | 20 | 1 | |||||
| 2500-4000/5(1) | 30 | 1 | |||||
|
100*80II |
600-800/5(1) | 10 | 1 | 100*10/1-4 | |||
| 1000-1250/5(1) | 10 | 1 | |||||
| 1500-2000/5(1) | 20 | 1 | |||||
| 2500-4000/5(1) | 30 | 1 | |||||
|
120*50II
|
500-800/5(1) | 10 | 1 | 120*10/1-3 | |||
| 1000-1250/5(1) | 10 | 1 | |||||
| 1500-2000/5(1) | 20 | 1 | |||||
| 2500-5000/5(1) | 30 | 1 | |||||
|
130*50*II |
600-800/5(1) | 10 | 1 |
125*10/1-3 130*10/1-3 60*10/2-6 |
|||
| 1000-1250/5(1) | 10 | 1 | |||||
| 1500-2000/5(1) | 20 | 1 | |||||
| 2500-5000/5(1) | 30 | 1 | |||||
|
120*80II 150*50II |
1000-1250/5(1) | 10 | 1 | 120*10/1-4 | D | ||
| 1500-2000/5(1) | 20 | 1 | |||||
| 2500-5000/5(1) | 30 | 1 | |||||
|
170*100II |
1500-2000/5(1) | 15 | 1 |
170*10/1-3 100*10/3-6 |
|||
| 1500-2000/5(1) | 30 | 1 | |||||
|
180*50II |
1200-2000/5(1) | 10 | 1 | 180*10/1-3 | |||
| 2500-5000/5(1) | 30 | 1 | |||||
|
200*50II 220*50II 260*50II |
1500-2000/5(1) | 20 | 1 |
200*10/1-3 100*10/4-6 |
|||
| 2500-5000/5(1) | 30 | 1 | |||||
|
260*100II |
1200-1500/5(1) | 10 | 1 |
250*10/2-5 125*10/4-6 |
|||
| 1500-2000/5(1) | 20 | 1 | |||||
| 2500-6300/5(1) | 30 | 1 | |||||
Technical indicators
● Rated operation voltage AC 0.66kV(Equivalent AC 0.63kV,GB156-2003)
● Rated frequency 50-60Hz
● Ambient air temperature -30℃-70℃
● Height above sea level≤3000m
● Power frequency withstand voltage 3000v/1min 50Hz
● Used in place without direct rain and snow, without severe pollution and acute shock
Interface Descriptions
Download
