DESCRIPTION
| AKH-0.66-I series current transformers are patented and flip-designed. The appearance is nice and the wiring is convenient. The transparent polycarbonate material is selected for the flip. We can see the secondary lead wiring. It has a square-round hole for both cable and bus passing through. As alternating current signal acquisition element, it is generally matched with measuring instruments and widely used in electrical sets. |  |
|
 |
 |
|
|
Installation: Easy Installation |
Service: 24 Hour |
|
 |
 |
|
|
Certificate: CE/MID |
Quality: Quality Assurance |
|
| Specification | Rated Current Ratio (A) |
Precision Degree And Corresponding Rated Load (VA) |
Straight-Through Tums | Bus spec (mm) / Number | Max. cable outer diameter (mm) |
Installation | ||
| 0.2 | 0.5 | 1 | ||||||
|

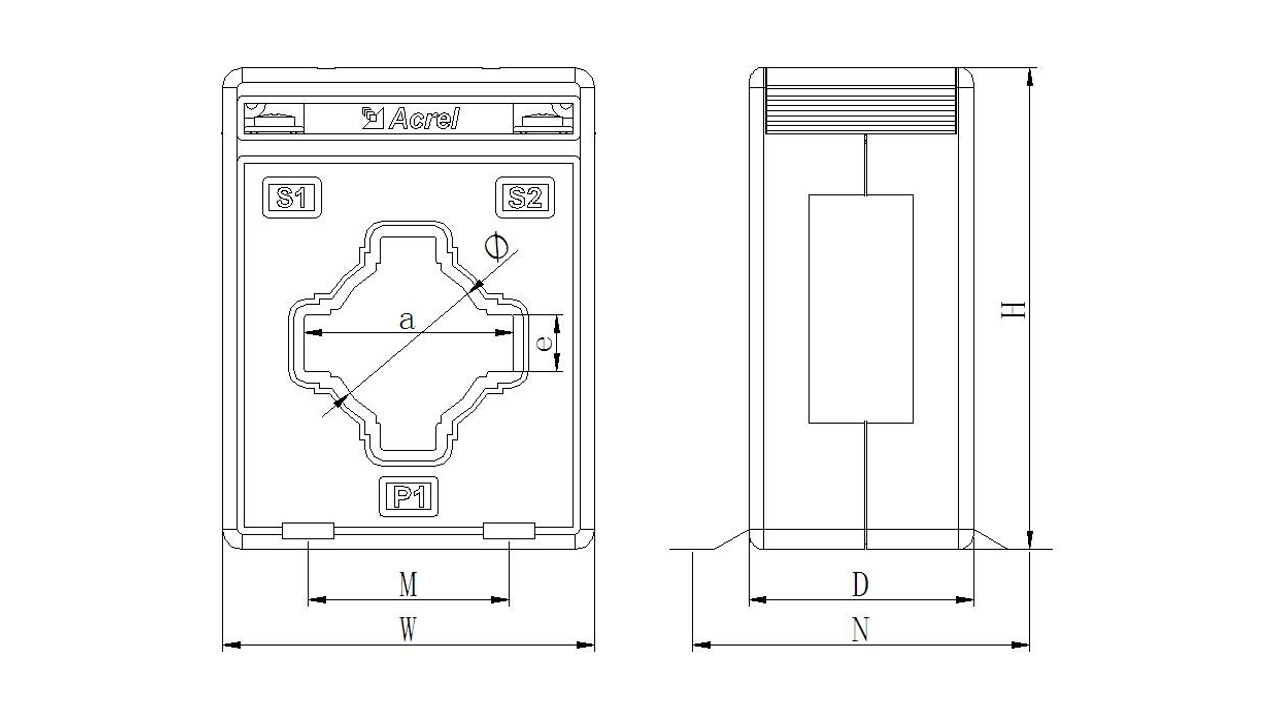

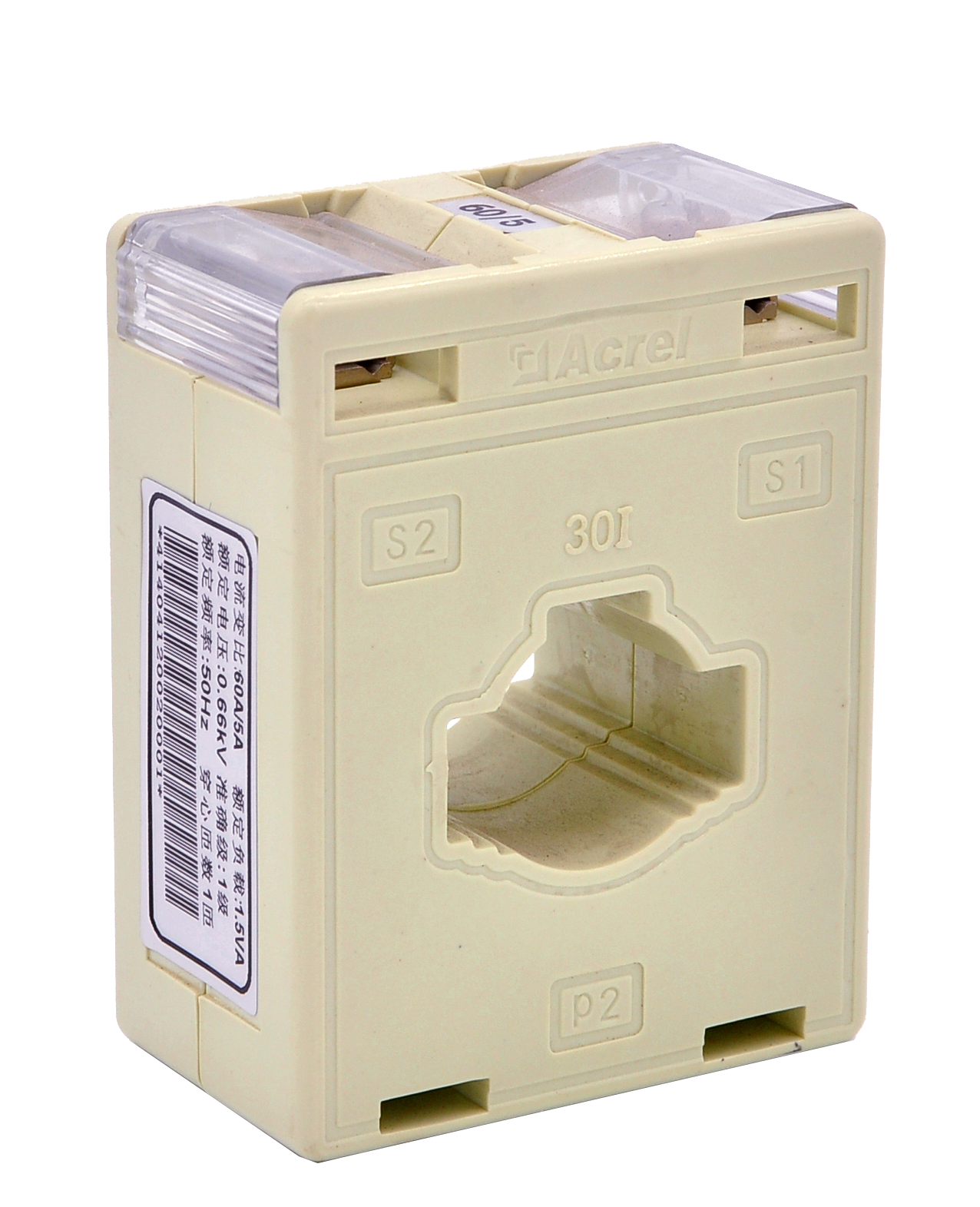

30I |
15/5(1) | 1.5 | 5 | / | Φ22 | A | ||
| 20/5(1) | 1.5 | 4 | ||||||
| 25-30/5(1) | 1.5 | 3 | ||||||
| 40-60/5(1) | 1.5 | 2 | ||||||
| 75-100/5(1) | 1.5 | 1 | 30*10/1 | A, B | ||||
| 150-200/5(1) | 2.5 | 1 | ||||||
| 250/5(1) | 3.75 | 1 | ||||||
| 300-450/5(1) | 5 | 1 | ||||||
| 500/5(1） | 10 | 1 | ||||||
| 600/5（1） | 10 | 1 | ||||||
|
40I |
10/5(1) | 1.5 | 10 | / | Φ30 | A | ||
| 15/5(1) | 1.5 | 8 | ||||||
| 20/5(1) | 1.5 | 5 | ||||||
| 25-30/5(1) | 1.5 | 4 | ||||||
| 40/5(1) | 1.5 | 3 | ||||||
| 50-75/5(1) | 1.5 | 2 | ||||||
| 100/5(1) | 1.5 | 1 | 40*10/1 | A, C | ||||
| 150/5(1) | 2.5 | 1 | ||||||
| 200/5(1) | 2.5 | 1 | ||||||
| 250/5(1) | 3.75 | 1 | ||||||
| 300-450/5(1) | 5 | 1 | ||||||
| 500-800/5(1) | 10 | 1 | ||||||
| 1000/5(1) | 10 | 1 | ||||||
|

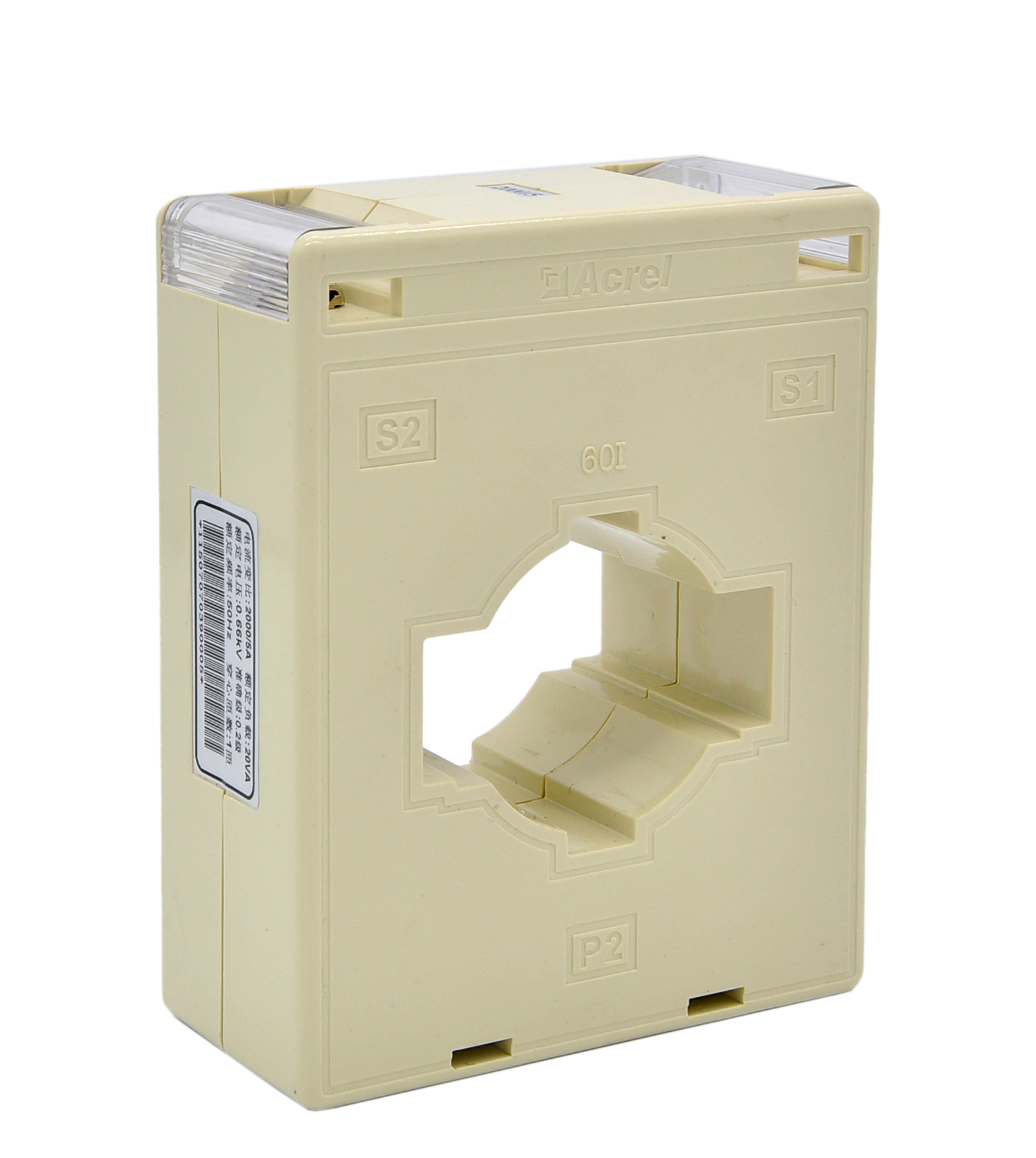

60I |
150/5(1) | 2.5 | 1 | 60*10/1 | Φ44 | A, C | ||
| 200-250/5(1) | 2.5 | 1 | 60*6/1-2 | |||||
| 300-450/5(1) | 5 | 1 | ||||||
| 500-800/5(1) | 10 | 1 | ||||||
| 1000-1250/5(1) | 10 | 1 | ||||||
| 1500-2000/5(1) | 20 | 1 | ||||||
| 2500/5(1) | 30 | 1 | ||||||
|

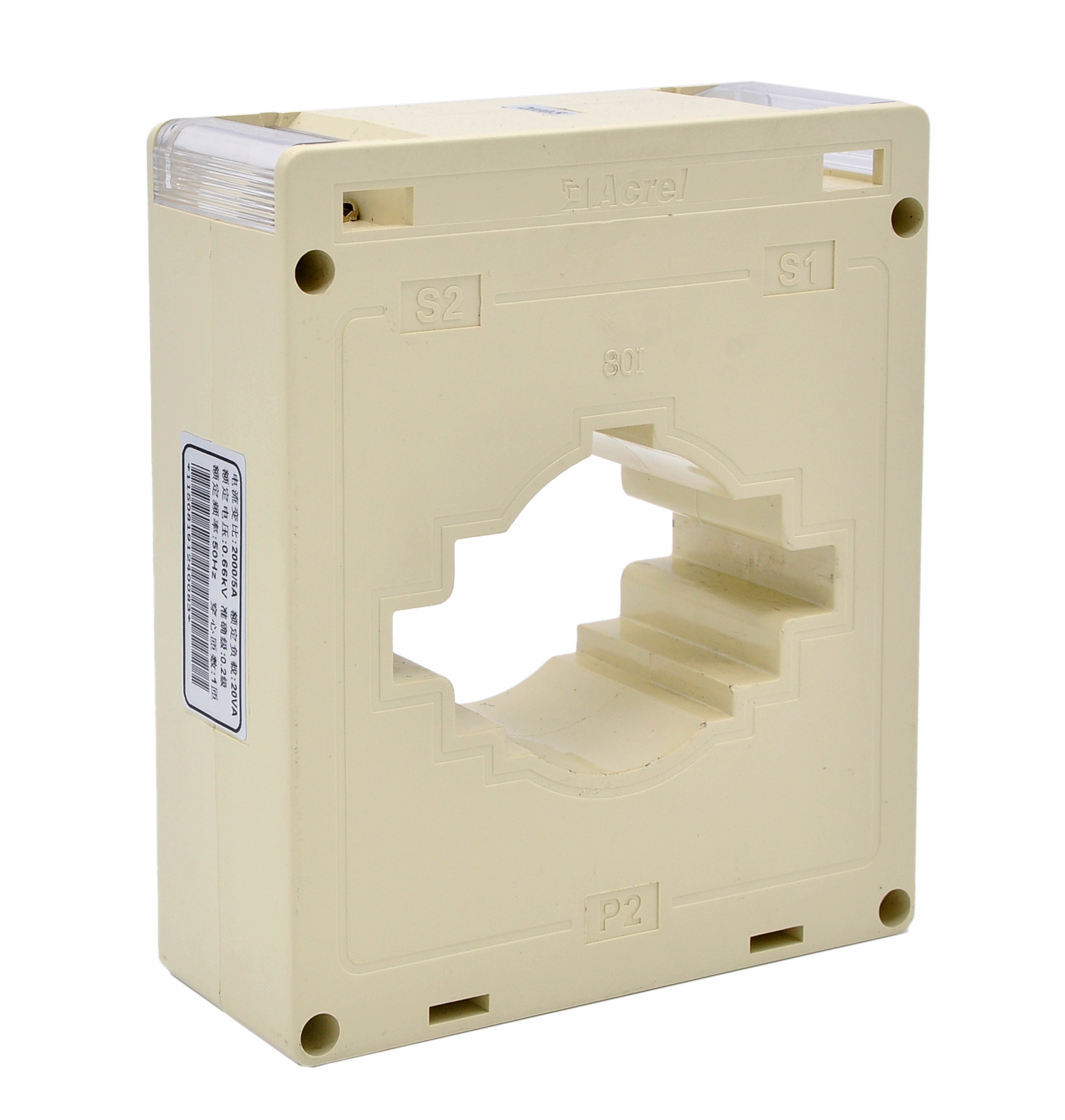

80I |
150/5(1) | 2.5 | 1 | 80*10/1 | Φ50 | A, C | ||
| 200-250/5(1) | 2.5 | 1 | ||||||
| 300-400/5(1) | 5 | 1 | ||||||
| 500-800/5(1) | 10 | 1 | ||||||
| 1000-1250/5(1) | 10 | 1 | ||||||
| 1500-2000/5(1) | 20 | 1 | ||||||
| 2500-3000/5(1) | 30 | 1 | ||||||
Technical indicators
● Rated operation voltage AC 0.66kV(Equivalent AC 0.63kV,GB156-2003)
● Rated frequency 50-60Hz
● Ambient air temperature -30℃-70℃
● Height above sea level≤3000m
● Power frequency withstand voltage 3000v/1min 50Hz
● Used in place without direct rain and snow, without severe pollution and acute shock
