DESCRIPTION

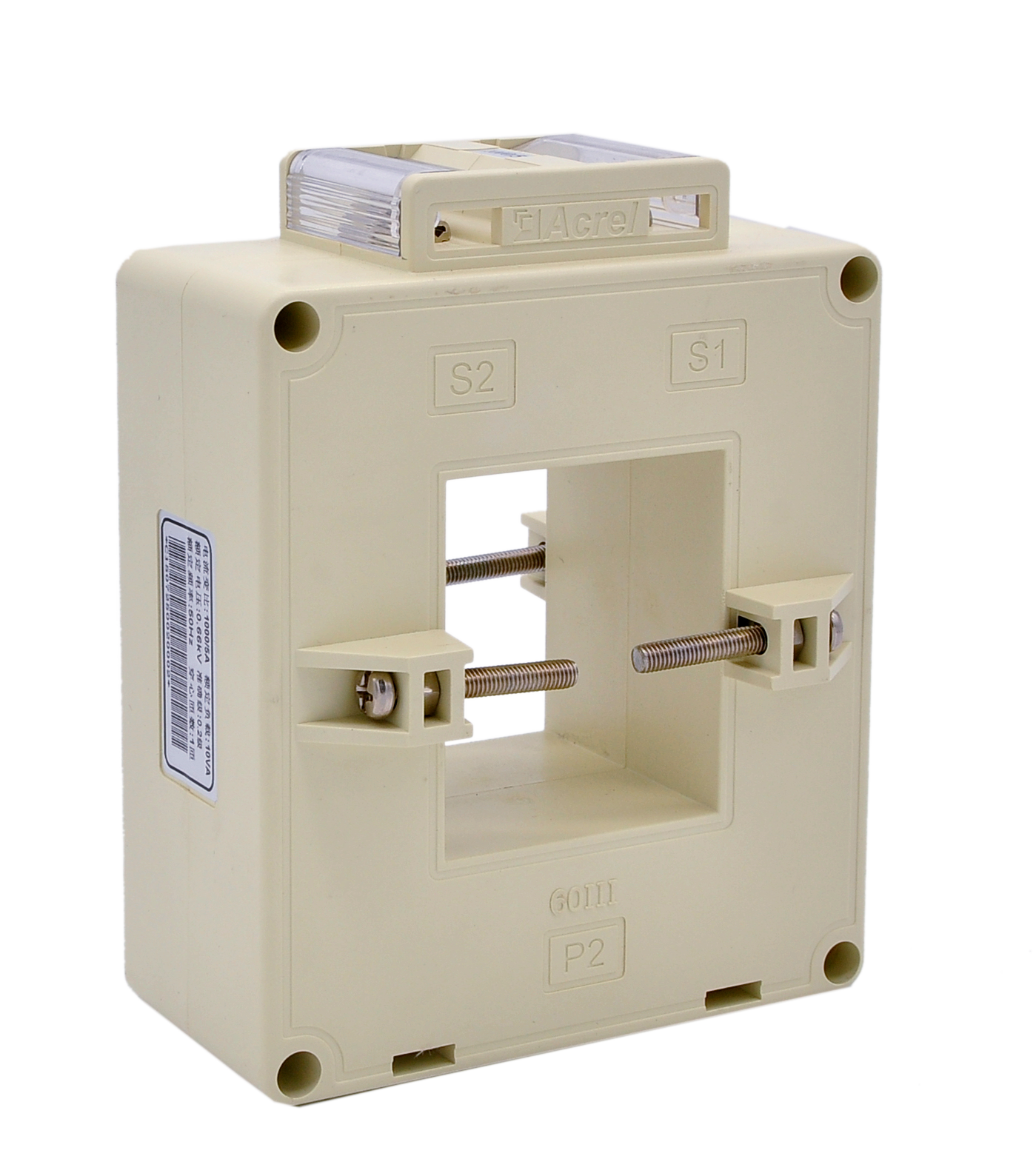

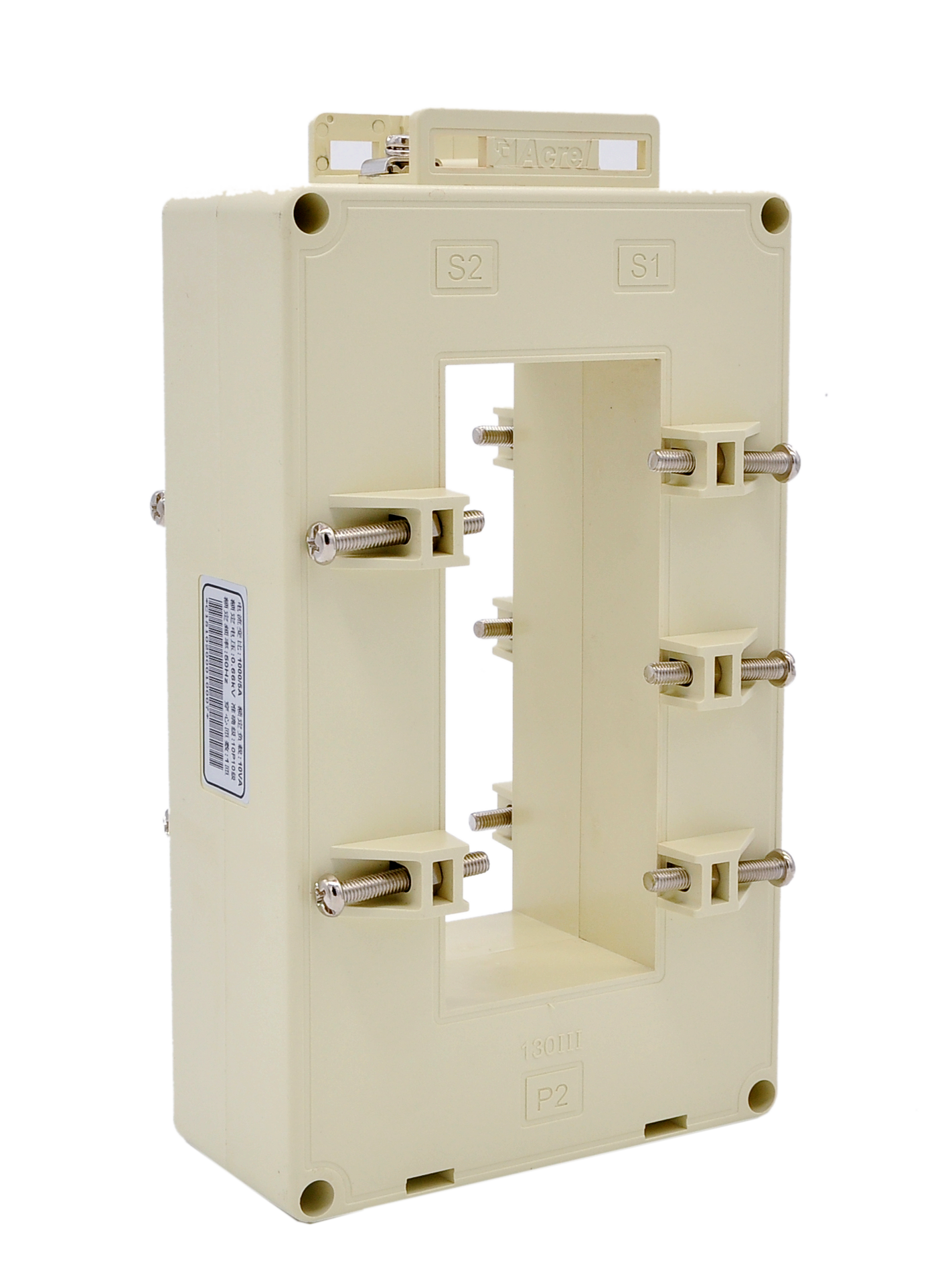

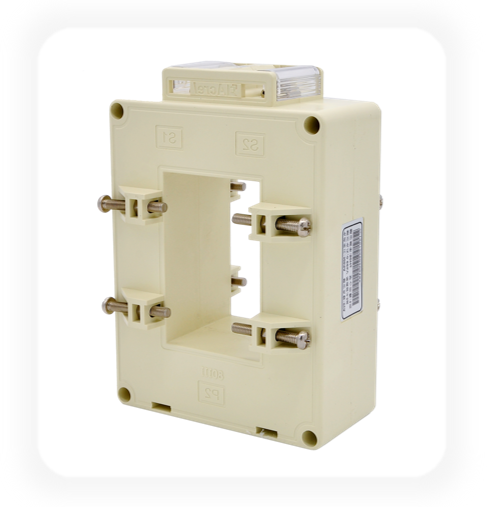

| AKH-0.66-III series current transformers are patented and flip-designed. The appearance is nice and the wiring is convenient. The transparent polycarbonate material is selected for the flip. We can see the secondary lead wiring. It has a square-round hole for both cable and bus passing through. As alternating current signal acquisition element, it is generally matched with measuring instruments and widely used in electrical sets. |  |
|
 |
 |
|
|
Installation: Easy Installation |
Service: 24 Hour |
|
 |
 |
|
|
Certificate: CE/MID |
Quality: Quality Assurance |
|
| Specification | Rated Current Ratio (A) |
Precision Degree And Corresponding Rated Load (VA) |
Number of core turns | Bus spec (mm) / Number | Installation | |
| 0.2 | 0.5 | |||||
|
60III |
200-300/5(1) | 2.5 | 1 | 60*10/1-3 | E | |
| 400/5(1) | 5 | 1 | ||||
| 500-800/5(1) | 10 | 1 | ||||
| 1000/5(1) | 10 | 1 | ||||
| 1200-1500/5(1) | 15 | 1 | ||||
| 2000/5(1) | 20 | 1 | ||||
| 2500/5(1) | 30 | 1 | ||||
|
80III |
300-400/5(1) | 5 | 1 | 80*10/1-3 | ||
| 500-800/5(1) | 10 | 1 | ||||
| 1000/5(1) | 10 | 1 | ||||
| 1200-1500/5(1) | 15 | 1 | ||||
| 2000/5(1) | 20 | 1 | ||||
| 2500-3000/5(1) | 30 | 1 | ||||
|
100III |
600-800/5(1) | 10 | 1 | 100*10/1-3 | ||
| 1000/5(1) | 10 | 1 | ||||
| 1200-1500/5(1) | 15 | 1 | ||||
| 2000/5(1) | 20 | 1 | ||||
| 2500-4000/5(1) | 30 | 1 | ||||
|
130III |
2000/5(1) | 20 | 1 |
130*10/1-3 125*10/1-3 |
||
| 2500-5000/5(1) | 30 | 1 | ||||
Technical indicators
● Rated operation voltage AC 0.66kV(Equivalent AC 0.63kV,GB156-2003)
● Rated frequency 50-60Hz
● Ambient air temperature -30℃-70℃
● Height above sea level≤3000m
● Power frequency withstand voltage 3000v/1min 50Hz
● Used in place without direct rain and snow, without severe pollution and acute shock
