DESCRIPTION
| The appearance of AHK-0.66 G Current Transformer is nice and the wiring is convenient. The transparent polycarbonate material is selected for the flip. We can see the secondary lead wiring. They are generally used with electrical measuring instruments, and widely used in electrical sets. |  |
|
 |
 |
|
|
Installation: Easy Installation |
Service: 24 Hour |
|
 |
 |
|
|
Certificate: CE/MID |
Quality: Quality Assurance |
|

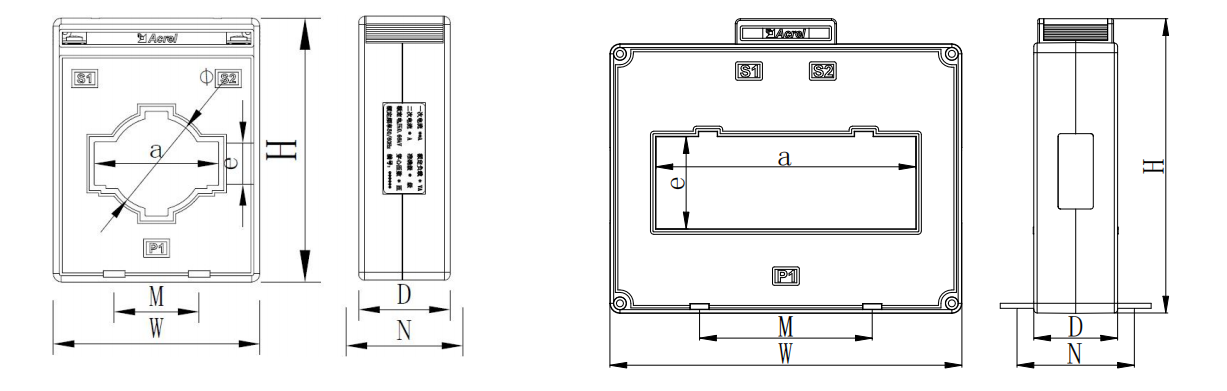

| Specification | Rated Current Ratio (A) |
Precision Degree And Corresponding Rated Load (VA) |
Straight-Through Tums | Bus spec (mm) / Number | Max. cable outer diameter (mm) |
Installation | ||
| 0.2 | 0.5S | 0.2S | ||||||
|
G-30I
|
10A/5A | 2.5 | 1.5 | 1.5 | 15 | 30*10/1 | Φ22 | A, E |
| 15A/5A | 2.5 | 1.5 | 1.5 | 10 | ||||
| 20A/5A | 2.5 | 1.5 | 1.5 | 8 | ||||
| 25A/5A | 2.5 | 1.5 | 1.5 | 6 | ||||
| 30A/5A | 2.5 | 1.5 | 1.5 | 5 | ||||
| 40A/5A | 2.5 | 1.5 | 1.5 | 4 | ||||
| 50A/5A | 2.5 | 1.5 | 1.5 | 3 | ||||
| 75A/5A | 2.5 | 1.5 | 1.5 | 2 | ||||
| 100A/5A | 1.5 | 1.5 | 1.5 | 1 | ||||
| 150A/5A | 2.5 | 1.5 | 1.5 | 1 | ||||
| 200-300A/5A | 2.5 | 2.5 | 2.5 | 1 | ||||
| 400A/5A | 5 | 2.5 | 2.5 | 1 | ||||
|
G-30*30 I |
5/5 | 2.5 | 2.5 | 2.5 | 16 | / | Φ28 | F |
| 10/5 | 2.5 | 2.5 | 2.5 | 8 | ||||
| 15/5 | 2.5 | 2.5 | 2.5 | 6 | ||||
| 20-25/5 | 2.5 | 2.5 | 2.5 | 4 | ||||
| 30/5 | 2.5 | 2.5 | 2.5 | 3 | ||||
| 40-75/5 | 2.5 | 2.5 | 2.5 | 2 | ||||
| 100-150/5 | 2.5 | 2.5 | 2.5 | 1 | 30*10/1 | E, F | ||
| 200/5 | 5 | 5 | 2.5 | 1 | ||||
| 250-400/5 | 5 | 5 | 5 | 1 | ||||
|
G-40 I
|
200-300/5 | 2.5 | 2.5 | 2.5 | 1 | 40*10/1 | Φ30 | A,C |
| 350-450/5 | 2.5 | 2.5 | 2.5 | 1 | ||||
| 500-800/5 | 5 | 5 | 5 | 1 | ||||
| G-60 I | 250-400/5 | 2.5 | 2.5 | 2.5 | 1 | 60*10/1 | Φ44 | A,C |
| 450-500/5 | 5 | 2.5 | 2.5 | 1 | ||||
| 600-800/5 | 5 | 5 | 5 | 1 | ||||
| 1000/5 | / | 5 | 5 | 1 | ||||
| 1200-1250/5 | / | 15 | 10 | 1 | ||||
| 1500-2000/5 | / | 10 | 10 | 1 | ||||
| 2500/5 | / | 20 | 20 | 1 | ||||
| G-80 I | 750-800/5 | 5 | 5 | 5 | 1 | 80*10/1 | Φ50 | A,C |
| 1000/5 | / | 15 | 10 | 1 | ||||
| 1500-2000/5 | / | 10 | 10 | 1 | ||||
| 2500-3000/5 | / | 20 | 20 | 1 | ||||
| G-40 II | 200-300/5 | 2.5 | / | / | 1 | 40*10/1-2 | / | C |
| 350-450/5 | 2.5 | 2.5 | 2.5 | 1 | ||||
| 500-800/5 | 5 | 5 | 5 | 1 | ||||
| G-60 II | 250-400/5 | 2.5 | 2.5 | 2.5 | 1 | 60*10/1-2 | / | C |
| 450-500/5 | 5 | 5 | 5 | 1 | ||||
| 600-800/5 | 5 | 5 | 5 | 1 | ||||
| 1000/5 | / | 5 | 5 | 1 | ||||
| 1200-1250/5 | / | 15 | 10 | 1 | ||||
| 1500-2000/5 | / | 10 | 10 | 1 | ||||
| 2500/5 | / | 20 | 20 | 1 | ||||
| G-80*50 II | 1500-2000/5 | / | 10 | 10 | 1 | 80*10/1-3 | / | D |
| 2500-3000/5 | / | 20 | 20 | 1 | ||||
| G-100 II | 1000/5 | / | 5 | 5 | 1 | 100*10/1-2 | / | D |
| 1200-2000/5 | / | 15 | 10 | 1 | ||||
| 2500-4000/5 | / | 20 | 20 | 1 | ||||
| G-100*50 II | 1500-2000/5 | / | 10 | 10 | 1 | 100*10/1-3 | / | D |
| 2500-4000/5 | / | 20 | 20 | 1 | ||||
| G-100*80 II | 1500-2000/5 | / | 10 | 10 | 1 | 100*10/1-4 | / | D |
| 2500-4000/5 | / | 20 | 20 | 1 | ||||
| G-120*50 II | 1500-2000/5 | / | 10 | 10 | 1 | 120*10/1-3 | / | D |
| 2500-5000/5 | / | 20 | 20 | 1 | ||||
| G-130*50 II | 1500-2000/5 | / | 10 | 10 | 1 | 130*10/1-3 | / | D |
| 2500-5000/5 | / | 20 | 20 | 1 | ||||
| G-150*50 II | 1500-2000/5 | / | 10 | 10 | 1 | 150*10/1-3 | / | D |
| 2500-5000/5 | / | 20 | 20 | 1 | ||||
| G-170*100 II | 2500-5000/5 | / | 20 | 20 | 1 | 170*10/3-6 | / | D |
| G-180*50 II | 2500-5000/5 | / | 20 | 20 | 1 | 180*10/1-3 | / | D |
| G-200*50 II | 2500-5000/5 | / | 20 | 20 | 1 |
200*10/1-3 100*10/4-6 |
/ | D |
| G-220*50 II | 2500-5000/5 | / | 20 | 20 | 1 |
200*10/1-3 100*10/4-6 |
/ | D |
| G-260*50 II | 2500-5000/5 | / | 20 | 20 | 1 |
250*10/1-3 125*10/4-6 |
/ | D |
Technical indicators
● Rated operation voltage AC 0.66kV(Equivalent AC 0.63kV,GB156-2003)
● Rated frequency 50-60Hz
● Ambient air temperature -30℃-70℃
● Height above sea level≤3000m
● Power frequency withstand voltage 3000v/1min 50Hz
● Used in place without direct rain and snow, without severe pollution and acute shock
