Solar/PV Three Phase Energy Meter

ACR10R-D16TE4

Zero Export/Bidirectional Monitoring

DOWNLOAD PDF >>

CONTACT >>

Home page

DESCRIPTION

Description

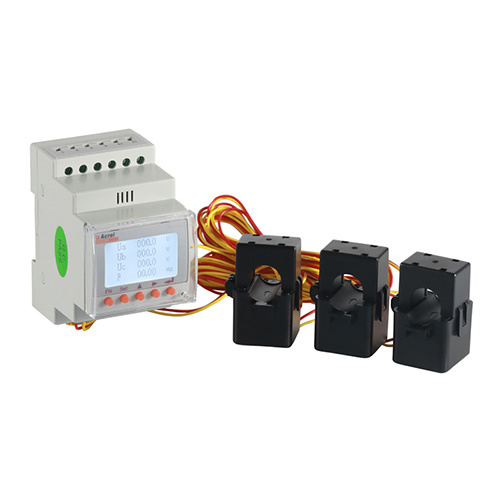

The rail-type multifunction electrical instrument with external Rogowski coil and split-core current transformer is applicable for the energy-saving reconstruction project in high energy consumption industries including the smelting, iron and steel, welding and semi-conductor industry.
It is also suitable for applications such as the power monitoring of grid-connected cabinet for distributed photovoltaic power cabinet and energy demand management.

Advantage

Communication:

4G,LORAWAN,NB,WIFI

Certificat:

Service:

24HOUR

Cloud Platform:

Iot Platform

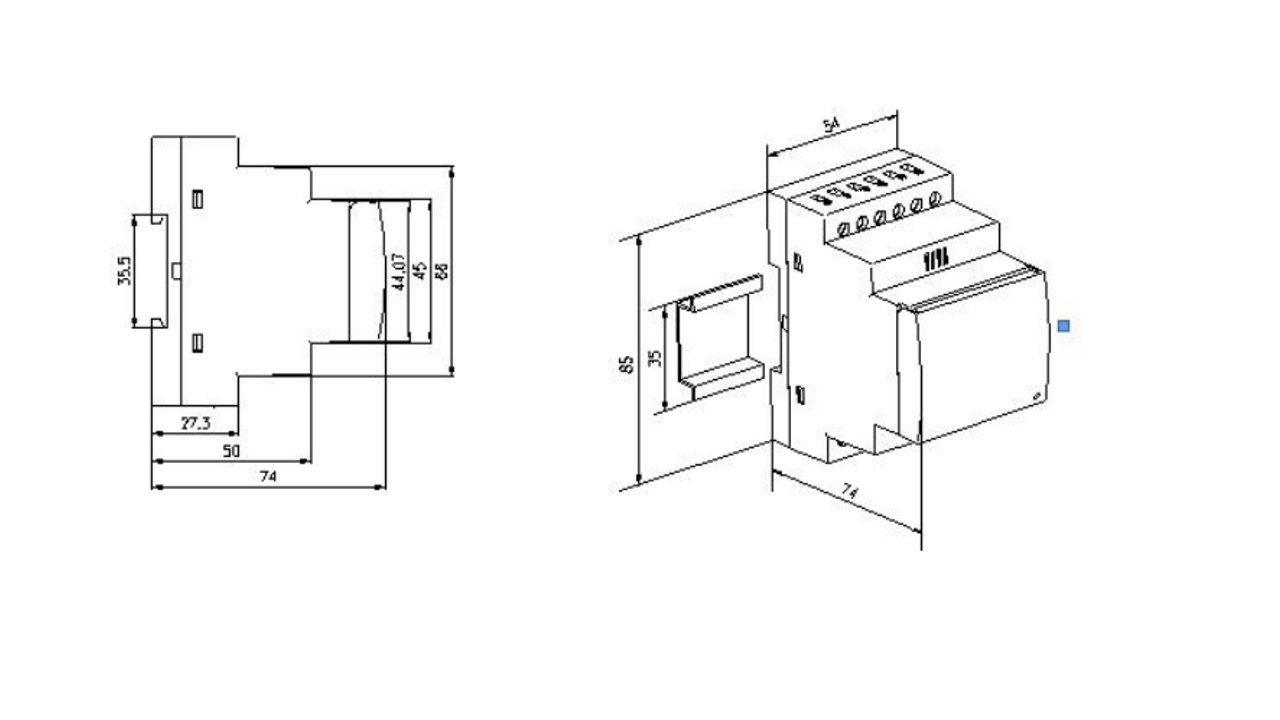

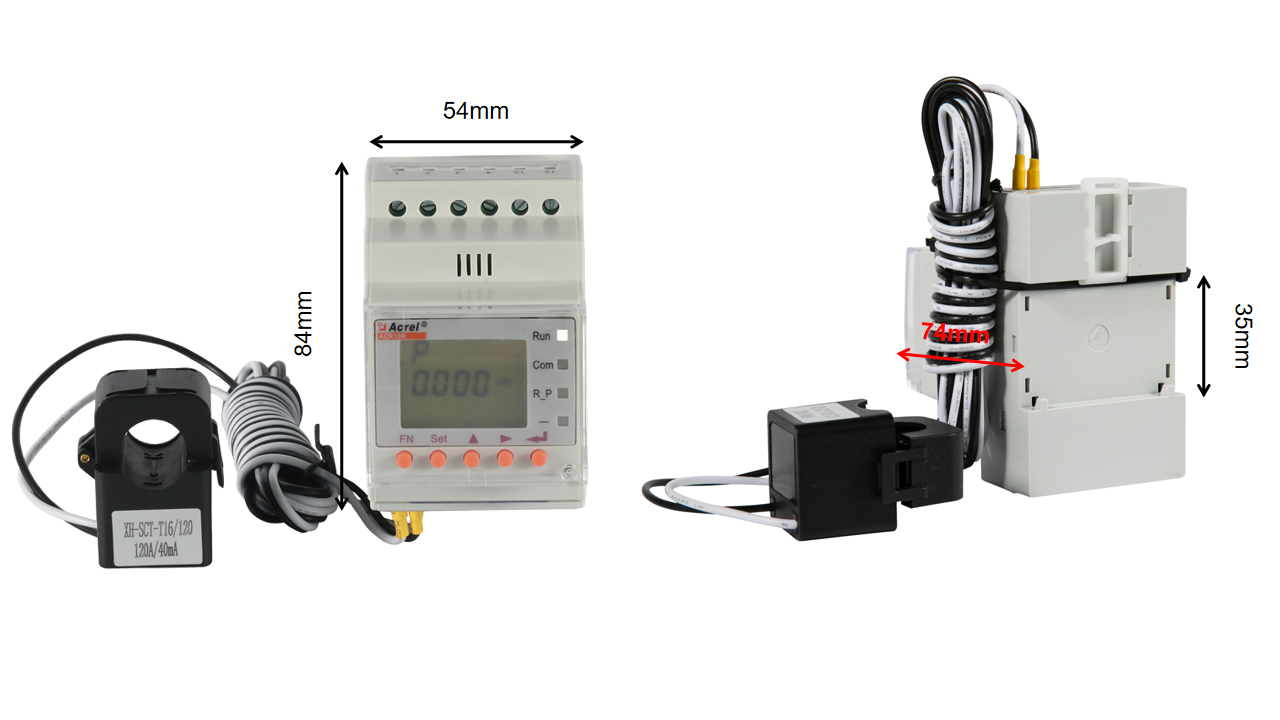

Size

Wiring Diagram

Parameters

Technical parameters			Indicators
Input	Grid		Three-phase three-wire/three-phase four-wire
	Frequency		45～65Hz
	Voltage		Rated voltage:AC 57.7V/100V(100V)、220V/380V(400V)
			Overload: 1.2 times the rated voltage(continuous); 2 times the rated voltage lasting for 1 second
			Power consumption: less then 0.2VA
	Current		Rating: with external transformer 80A/26.7mA，120A/40mA，200A/66.66mA With built-in mutual sensor：5A
			Overload: 1.2 times the rated current(continuous);10 times the rated current lasting for 1 second
			Power consumption: less then 0.2VA
Output	Electricity		Output mode:Open collector optocoupler pulse, 2-way output
			Three-phase	Pulse constant:100imp/kWh
	Communication		RS485 interface, Modbus-RTU、Ethernet
	Display		LCD
Function	On Off Volume	Input	4 dry contact inputs
		Output	Output mode: 2-way relay normally open contact output
			Contact capacity：AC 250V/3A、DC 30V/3A
Measurement precision			0.5 level, Reactive energy: 2 level、Other: 1 level
Power supply			AC85～265V power consumption≤10VA
Safety	Power frequency withstand voltage		AC2kV between power//switching output//current input and voltage input//communication//pulse output//switching input 1min. Power supply//switching output//current input and voltage input between two two AC2kV 1min. AC1kV between communication//pulse output//switching input two by two 1min.
	Insulating resistor		Input and output to chassis >100MΩ
