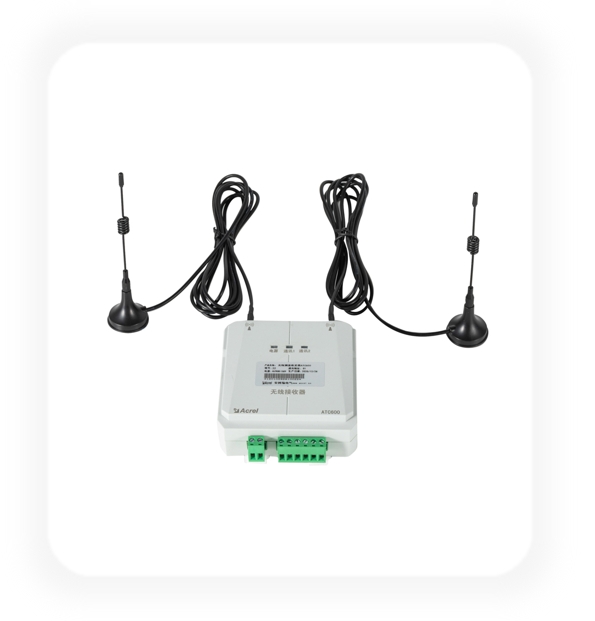

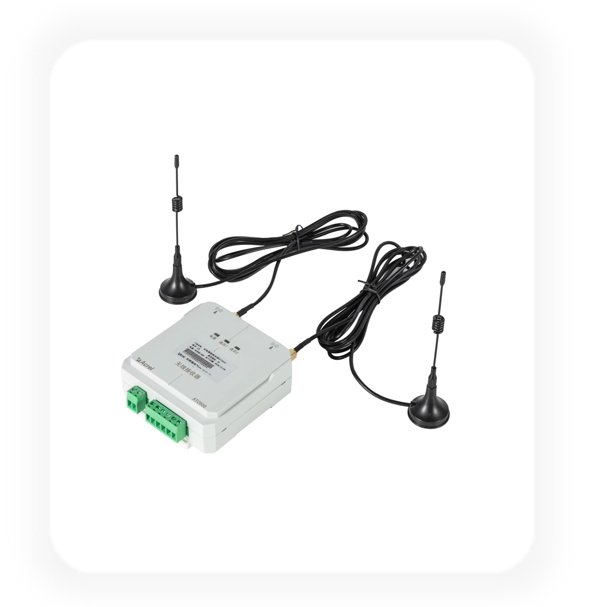

Wireless Temperature Transceiver
ATC600

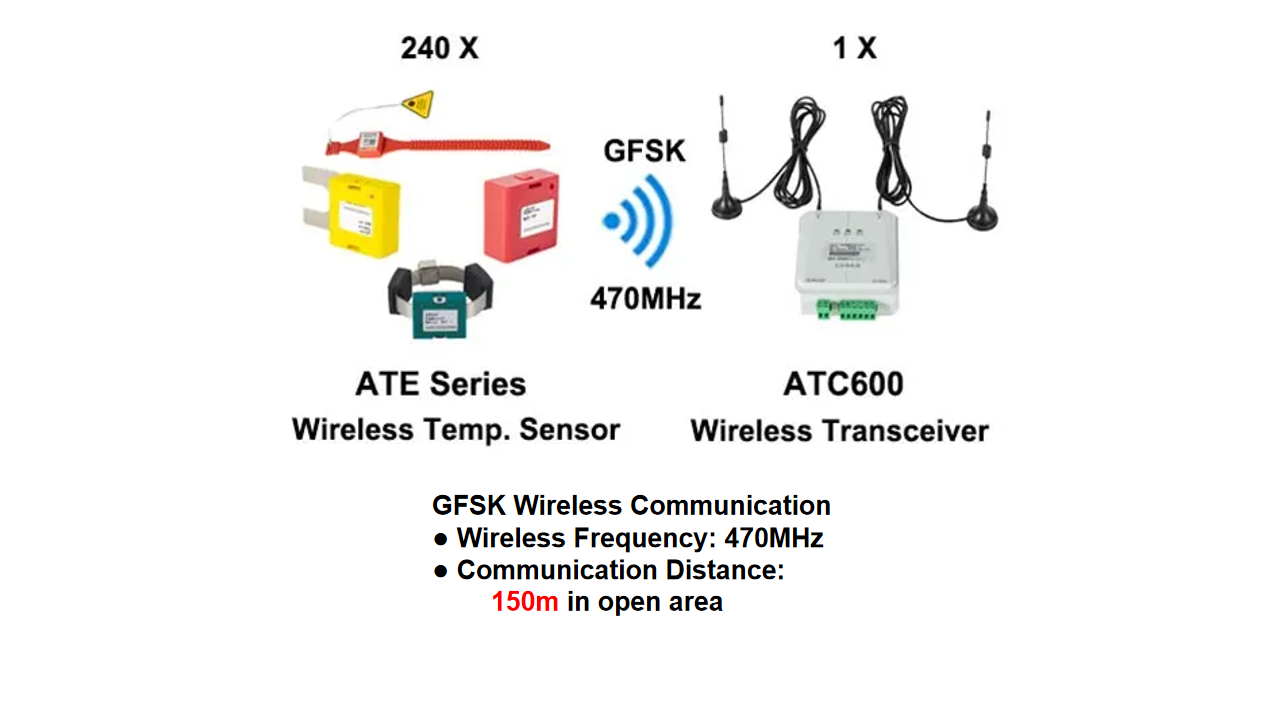

Max 240 Wireless Temperature Sensor Monitoing
DESCRIPTION
| ATC600 wireless temperature transceiver adopt guide rail (DIN35mm) installation， main dimension 90mm*90mm*38mm. |  |
|
 |
 |
|
|
Installation: Easy Installation |
Services: 24 Hour |
|
 |
 |
|
|

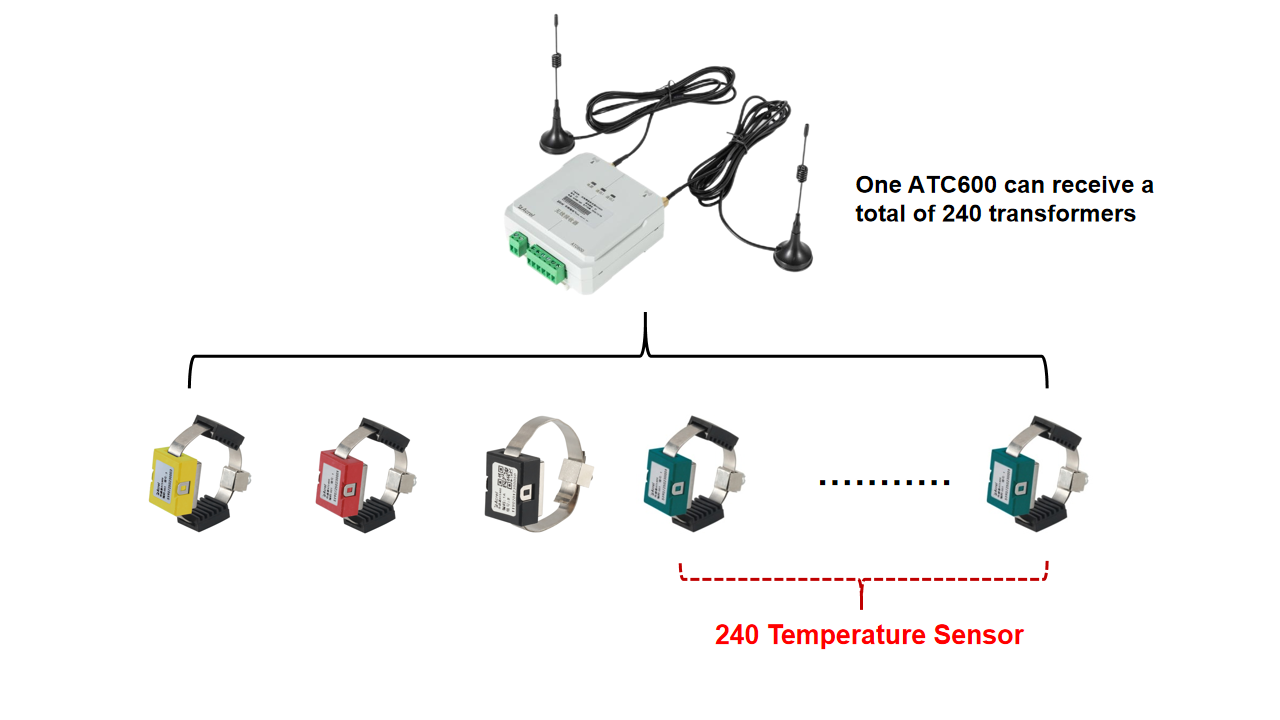

Receiver: 240 Points |
Quality: Quality Assurance |
|
 |
Models/ Parameters |
ATC600-C | ATC600-Z | ATC600-M |
|
Function |
Receiver |
Repeater(Signal Booster) |
Receiver |
|
|
Matching sensors |
ATE100/100P;ATE100M; ATE200/200P;ATE400; AHE100;ACE100;ATE300P |
ATE100/100P;ATE100M; ATE200/200P;ATE400 |
ATE300M |
|
|
Power source |
AC/DC100~265V；DC12~48V |
|||
|
Power |
≤2W |
|||
|
Temperature points |
240 points |
-- |
1440 points （240 Sensors） |
|
|
Resolution |
0.1℃ |
-- |
0.1℃ |
|
|
Range of |
-50℃~+125℃ |
-- |
-40℃~+140℃ |
|
|
Precision |
±1℃ |
-- |
±1℃ |
|
|
Wireless frequency |
470Mhz |
470Mhz |
433Mhz~510Mhz |
|
|
Wireless distance |
Receiving sensor 150m (in open area)； Receiving repeater 1km (in open area) |
Receiving sensor 150m (in open area)； Realy distance 1km(in open area) |
Receiving sensor 1km (in open area) |
|
|
Communication |
RS485 |
|||
|
Baud rate (bps) |
2400、4800、9600、19200 |
|||
|
Protocol |
MODBUS-RTU |
-- |
MODBUS-RTU |
|
|
Relay output |
2 passive output，capacity 5A/AC250V，5A/DC30V |
|||
|
Environment |
Temperature:-20 ℃～+55 ℃；Humidity:≤95% |
|||

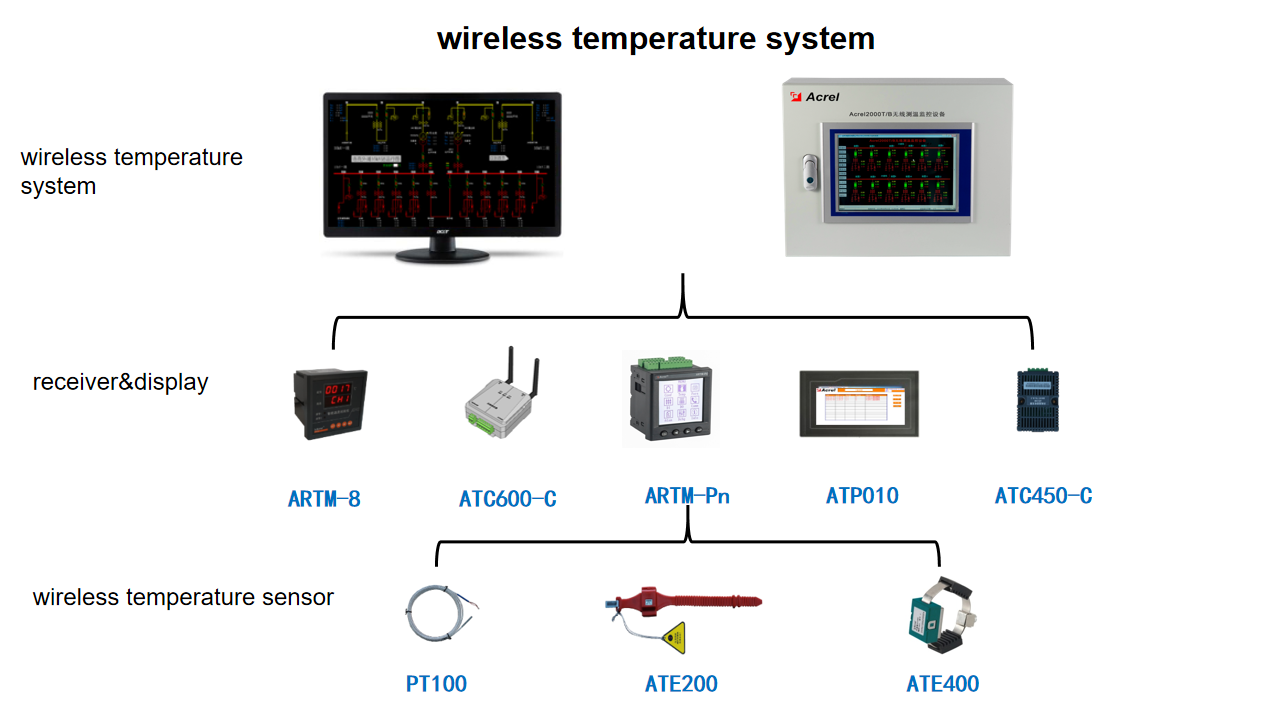

In high and low voltage cabinets--with Display
In high and low voltage cabinets--without Display
In high and low voltage cabinets ( Centralized on site display/ No display)
On-site wall-mounted centralized display solution
Interface Descriptions
