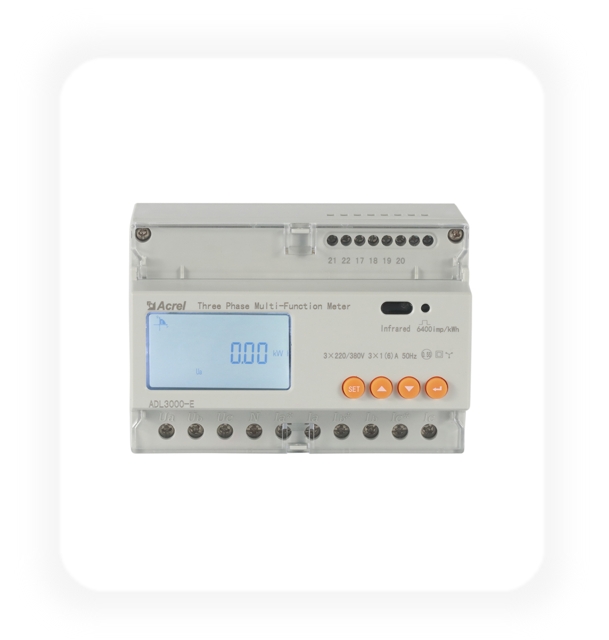

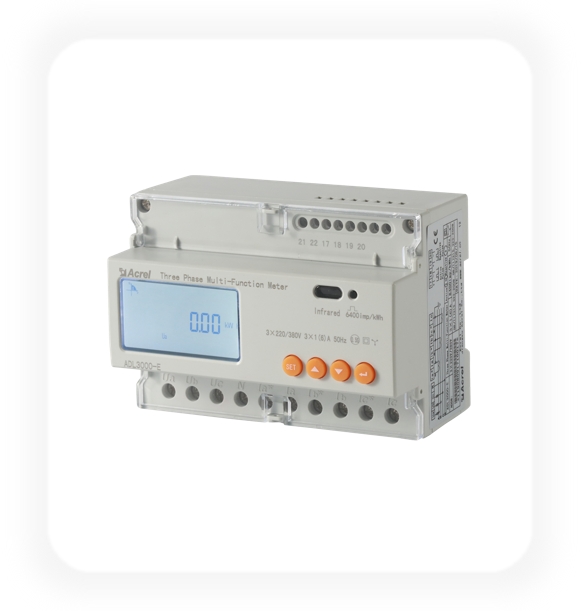

UL Multi Function Energy Meter
ADL3000-E
UL Certificate/AC Energy Meter/LCD Display
DESCRIPTION
| ADL3000-E is a smart meter designed for power supply systems, industrial and mining enterprises, and utilities to calculate the electricity consumption and manage the electric demand. It features high precision, small size, and simple installation. It integrates the measurement of all electrical parameters with the comprehensive electricity metering and management provides various data on the previous 12 months, checks the 31st harmonic content and the total harmonic content, realizes the remote communication and the remote control with switching input and relay output and boasts the alarm output. |
 |
|
 |
 |
|
| Installation: Easy Installation |
Services: 24 Hour |
|
 |
 |
|
| Certificate: CE/UL |
Quality: Quality Assurance |
|
 |
Specification | 3 phase 3 wires, 3 phase 4 wires | |
|
Voltage |
Reference voltage |
3×100V、 3×380V、3×57.7/100V、 3×220/380V | |
|
Consumption |
<10VA(Single phase) | ||
|
Impedance |
>2MΩ | ||
|
Accuracy class |
Error±0.2% | ||
|
Current |
Input current |
3×1(6)A，3×1(6)A(Outlay transformer)，3×10(80)A，3×10(100)A(Outlay transformer) | |
| Consumption | <1VA(Single phase rated current) | ||
| Accuracy class | Error±0.2% | ||
|
Power |
Active, reactive, apparent power, error±0.5℅ | ||
|
Frequency |
45～65Hz， Error±0.2% | ||
|
Temperature |
-40℃～99℃ | ||
|
Energy |
Active energy(Accuracy class:0.5, 1), reactive energy(Accuracy class 2) |
||
|
Clock |
≤0.5s/d | ||
|
Energy pulse output |
1 active optocoupler output, 1 reactive optocoupler output | ||
|
Switching output |
1 Switching output, Maximum allowed voltage: DC/AC 220V | ||
|
Switching input |
1 optocoupler input,Maximum allowed voltage: DC/AC 220V | ||
|
Width of pulse |
80±20ms | ||
|
Pulse constant |
6400imp/kWh,400imp/kWh(Correspond with the basic current) | ||
|
Interface and communication |
RS485：Modbus RTU | ||
|
Range of communication address |
Modbus RTU:1~ 247； | ||
|
Baud rate |
1200bps~19200bps | ||
| Relative temperature | -25℃~+55℃ | ||
| Relative humidity | ≤95℅(No condensation) | ||

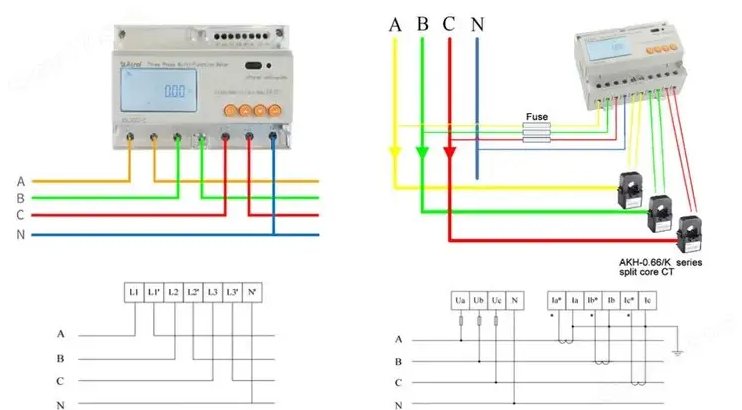

Interface Descriptions
