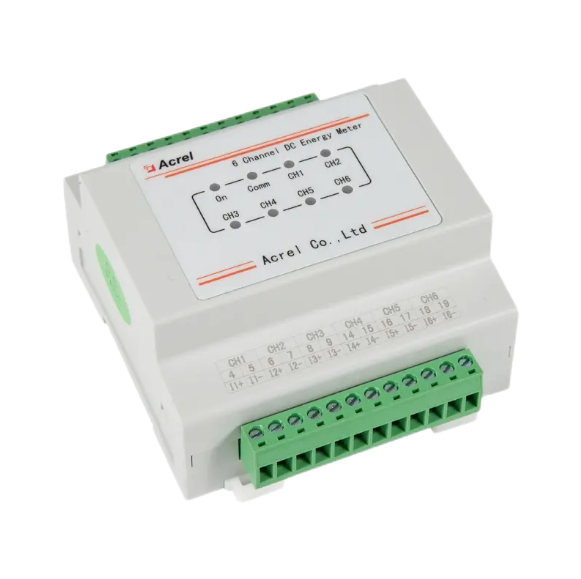

Multi-Circuits DC Energy Meter

AMC16L-DETT

Max 6 Loops DC Energy Metering/Base Station

DOWNLOAD PDF >>

CONTACT >>

Home page

DESCRIPTION

Description

AMC16(L)-DETT is specially designed for base stations where have sharing requirements, and switch power supply is without the function of sub-user metering. The meter could measure 6 circuits DC energy, and supply working current to the matched hall sensors. Meanwhile, it can realize zero drift calibration by upper computer software. have the functions of telemetering,teleindication,teleadjusting, metering at real time, energy quality abnormal alarm, data storage and processing, data interaction. The module can measure the DC power consumption of multiple circuits separately, providing detail datas for base station.

Installation: Easy Installation	Service: 24 Hour

Certificate: CE/RoHS	Quality: Quality Assurance

Parameters

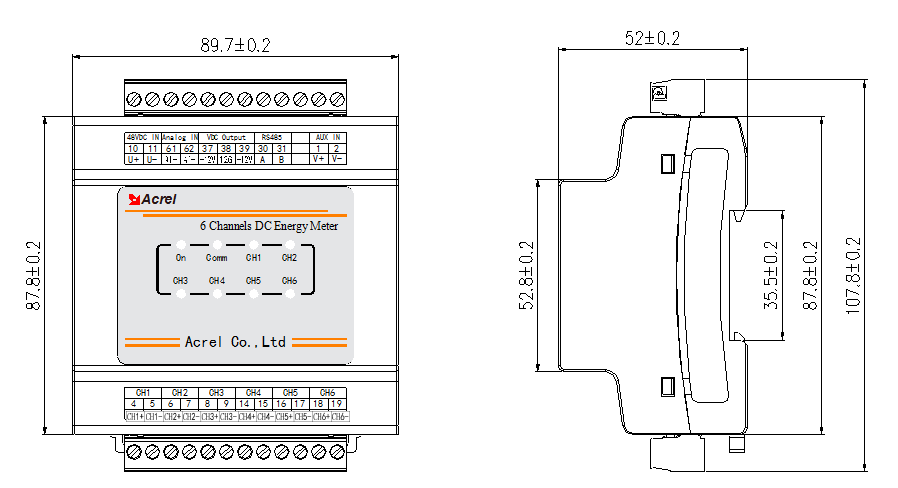

Size

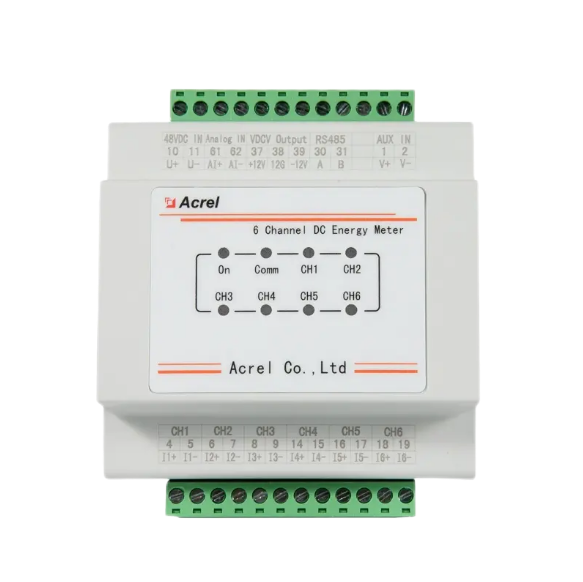

Panel Overview

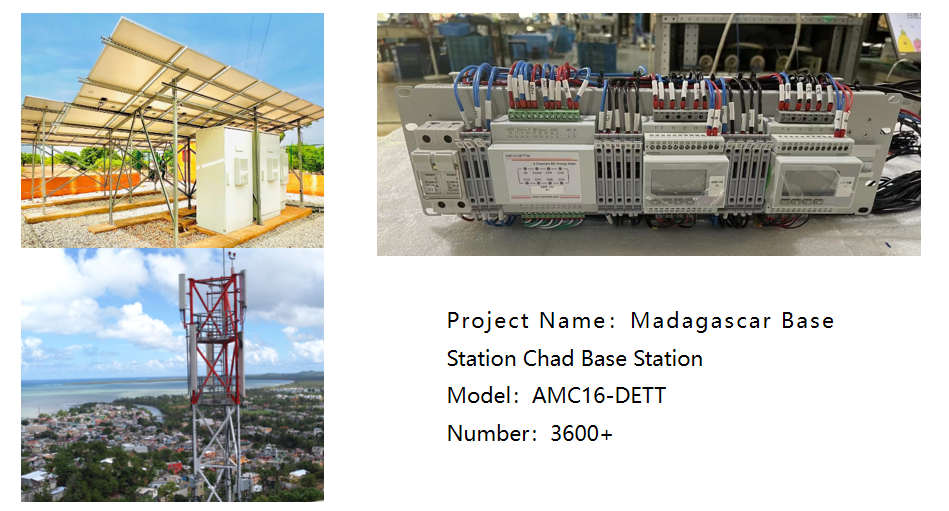

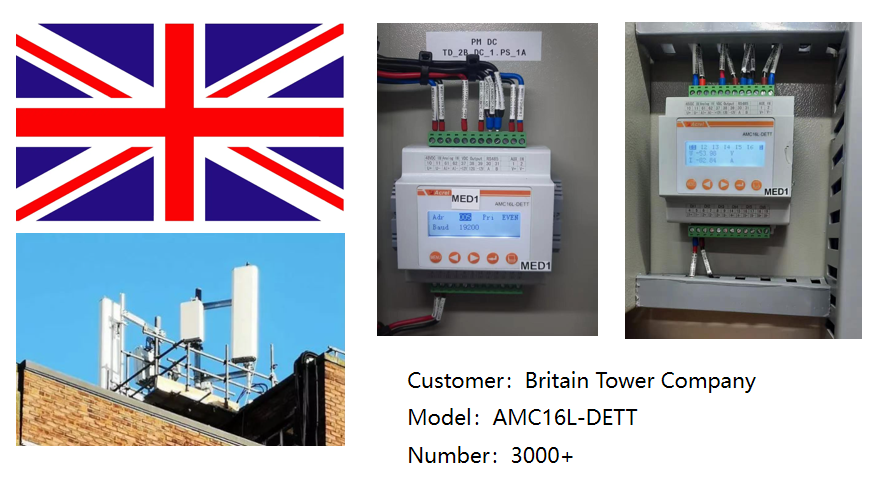

Project Picture

Home page

Interface Descriptions

Download

229 AMC16(L)-DETT基站直流电能计量模块安装使用说明书V1.6-英文.pdf

Download

AMC16-DETT Calibration Guide.pdf

Download

AMC16-DETT communication address.pdf

Download

AMC16-DETT Configuration Declaration.pdf

Download

AMC16-DETT manual.pdf

Download

Multi-Circuits DC Energy Meter

Product Summary:

Used for connection between pipe ends; Also useful is a flange on the inlet and outlet of the equipment, used for connecting between two devices, such as a gearbox flange. Flange connection or flange joint refers to a detachable connection consisting of flanges, gaskets, and bolts connected to each other as a combination sealing structure. Pipeline flange refers to the flange used for piping in pipeline devices, and when used on equipment, it refers to the inlet and outlet flanges of the equipment. There are holes on the flange, and bolts make the two flanges tightly connected. Seal the flanges with gaskets.

Classification：Butt welded pipe fittings

Keywords: Butt welded pipe parts

产品详细

There are GB series (national standard), JB series (mechanical department), HG series (chemical department), ASME B16.5 (American standard), BS4504 (British standard), DIN (German standard), JIS (Japanese standard).

Advantages:

The on-site installation is more convenient, and the process of welding seam rubbing can be omitted

Disadvantages:

The neck height of the flat welded flange with a neck is relatively low, which improves the stiffness and load-bearing capacity of the flange. Compared with butt welded flanges, the welding workload is large, the consumption of welding rods is high, and it cannot withstand high temperature and pressure, repeated bending, and temperature fluctuations.

The connection is not easily deformed, with good sealing effect, and is widely used. It is suitable for pipelines with significant temperature or pressure fluctuations, as well as pipelines with high, high, and low temperatures. It is also used for transporting expensive media, flammable and explosive media, and toxic gases

language

Tel: +86 13774417083
Whatsapp: +86 15076062079
E-mail: binn@acrel-electric.com
Address: 253 Yulu Road, Jiading District, Shanghai

ABOUT US

Company Profile

History

SOLUTIONS

PRODUCTS

E-mail

Technical parameter		Index
input	DC rated voltage	1 channel: -48VDC
	DC current	6 channels hall sensors output is 5V,current ratio can be set according to the actual ratio
	Commercial power monitoring	1 channel transmitter input: 0-5VDC or 4-20mA
	Overload capacity	Voltage:1.2times continued,2 times continued 1s; Current: 1.2 times continued,10 times continued 1s.
Accuracy (superposition hall sensors)		1%In≤I≤10%In accuracy ±2.5%; I>10%In accuracy ±2%
Measurement resolution		Voltage output accuracy 0.01V; current output accuracy 0.01A; power output accuracy 0.01kw; energy output accuracy 0.01kWh.
functions	Basic function	Monitor device system time, total voltage, output total current, power, energy, each channel voltage, current, power, energy; LED indicator display;485 communication.
	Metering function	Start current: under rated voltage, when the load current value of the meter doesn’t exceed 1% of the max. current, the meter starts. Shunt running current: when there is no current in the current circuit of the meter, and 85%-125%of the rated voltage is applied on the voltage circuit, the calculator shall not have more than one digital change.
	Alarm function	DC voltage output low alarm,DC voltage output high alarm,one power down alarm, module voltage loss alarm, metering branch error alarm, internal program error alarm, clock error alarm,memory failure alarm, AC input power failure alarm.
	Timing function	support broadcast timing, could remote timing to the meter through RS485 communication.
	Communication	Single channel RS485, baudrate 9600bps, can be set to 1200BPS, 2400bps, 4800bps.Communication protocol: standard or custmized.
	Hall sensor power supply	Power supply output:+12V/100mA, -12V/50mA
	Clock accuracy	≤0.5S/d(23℃), ≤1S/d(-20℃-60℃)
Auxiliary power supply	Voltage range	-40V~-60VDC
Auxiliary power supply	Power consumption	Whole device≤2W( no hall power supply output)
Storage		It has the storage function of historical power data and historical alarm information, and the memory is 2MB
Insulation resistance		≥40MΩ
environment	Temperature	Working : -20℃~+60℃; storage:-40℃~+70℃
	Humidity	≤98% no condensation, no corrosive gas place
	Altitude	≤4000m
Protection level		IP20
Material flame retardent		Terminal glow wire temperature 960℃±10℃ ,shell glow wire temperature 650℃±15℃
installation		Standard 35mm din rail
