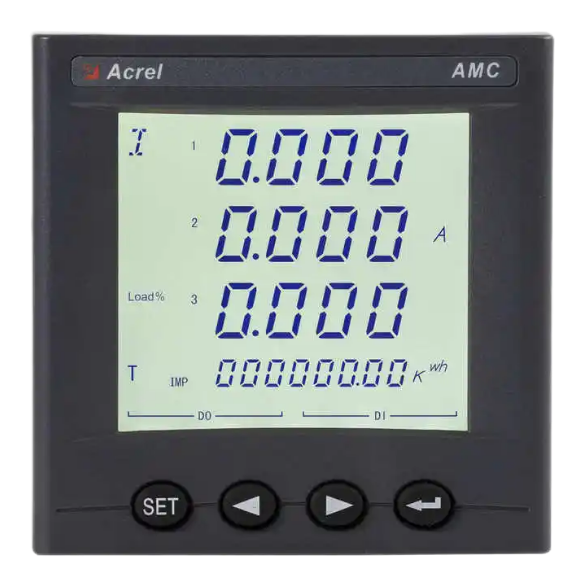

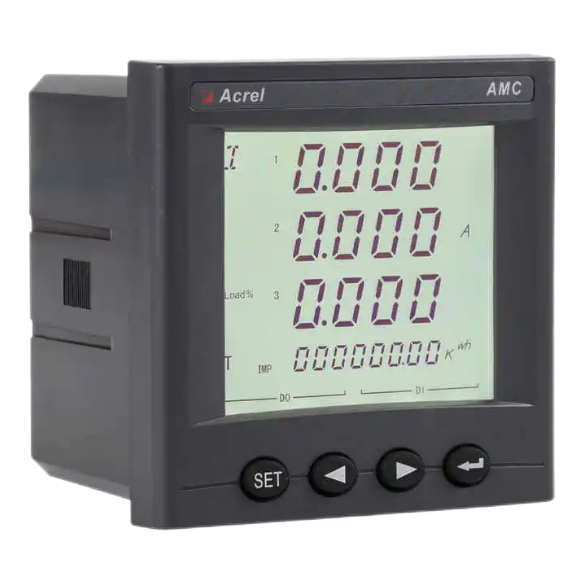

Intelligent Power Collection And Monitoring Device
AMC96L-E4/KC
Multifunction Electric Power Meter
DESCRIPTION
| AMC series intelligent power collection and monitoring device is a smart meter designed for power moni toring needs of power systems, industrial and mining enterprises, utilities, and intelligent buildings.It integrates measurement of power parameters、power monitoring and assessment management.At the same time, it has a variety of peripheral interface functions for users to choose: with RS485 communication interface, MODBUS-RTU protocol can meet the needs of communication network management;4-20mA analog output can correspond to measured electrical parameters, meet DCS Such interface requirements;with switch input and relay output can realize the function of "remote signal" and "remote control" of circuit breaker switch. High-brightness LED/LCD display interface, parameter setting and control through buttons,ideal for real-time power monitoring systems. Can directly replace conventional power transmitters and measuring instruments. As an intelligent, digital front-end acquisition component, the instrument has been widely used in various control systems, SCADA systems and energy management systems. |  |
|
 |
 |
|
|
Installation: Easy Installation |
Service: 24 Hour |
|
 |
 |
|
|
Certificate: CE/RoHS |
Quality: Quality Assurance |
|
Interface Descriptions
Related Products
Messages
Filling in your phone and email information will help us to contact you in a timely manner and resolve your issue as soon as possible.
Intelligent Power Collection And Monitoring Device
Product Summary:
Used for connection between pipe ends; Also useful is a flange on the inlet and outlet of the equipment, used for connecting between two devices, such as a gearbox flange. Flange connection or flange joint refers to a detachable connection consisting of flanges, gaskets, and bolts connected to each other as a combination sealing structure. Pipeline flange refers to the flange used for piping in pipeline devices, and when used on equipment, it refers to the inlet and outlet flanges of the equipment. There are holes on the flange, and bolts make the two flanges tightly connected. Seal the flanges with gaskets.
Classification：Butt welded pipe fittings
Keywords: Butt welded pipe parts
产品详细
There are GB series (national standard), JB series (mechanical department), HG series (chemical department), ASME B16.5 (American standard), BS4504 (British standard), DIN (German standard), JIS (Japanese standard).
Advantages:
The on-site installation is more convenient, and the process of welding seam rubbing can be omitted
Disadvantages:
The neck height of the flat welded flange with a neck is relatively low, which improves the stiffness and load-bearing capacity of the flange. Compared with butt welded flanges, the welding workload is large, the consumption of welding rods is high, and it cannot withstand high temperature and pressure, repeated bending, and temperature fluctuations.
The connection is not easily deformed, with good sealing effect, and is widely used. It is suitable for pipelines with significant temperature or pressure fluctuations, as well as pipelines with high, high, and low temperatures. It is also used for transporting expensive media, flammable and explosive media, and toxic gases
