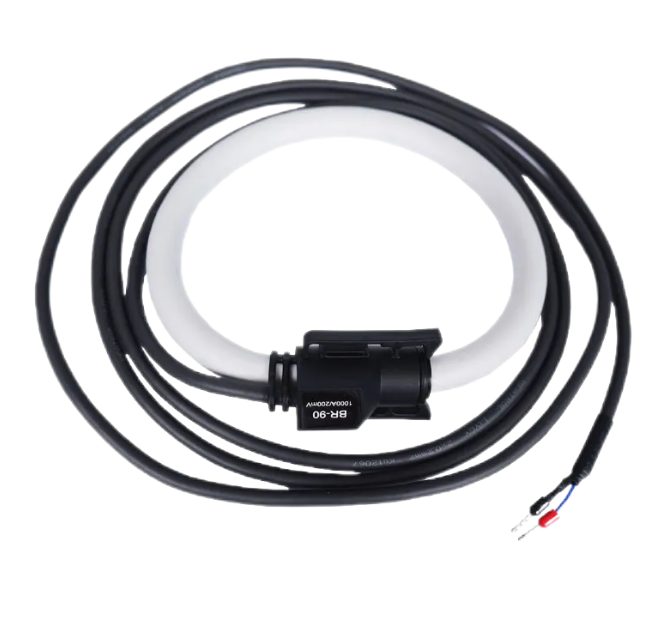

BR Series Rogowski Coil Current Transformer

BR-90/150/200/300

Rogowski Coil Flexible Current Transformer

DOWNLOAD PDF >>

CONTACT >>

Home page

DESCRIPTION

Description

The BR series flexible Rogowski coil is a high-sensitivity flexible current sensor that can be directly integrated with portable devices such as power analyzers. It is suitable for energy consumption monitoring, high-frequency current monitoring, DC ripple measurement, and more. Customizable in different sizes upon request.

Installation: Easy Installation	Service: 24 Hour

Compliant: IEC-60332-1-2	Quality: Quality Assurance

Series Overview

Model Name	Primary Input [AC]	Secondary Output	Perforation Hole Size (mm)
BR-90	1000A	200/333mV	90
BR-150	2000~5000A	200mV	150
BR-200	4000~8000A	200mV	200
BR-300	5000~10000A	200mV	300

Size

Model Name	Inner Diameter	Sector Diameter	Circumference
BR-90	90mm	12mm	300mm
BR-150	150mm	12mm	500mm
BR-200	200mm	12mm	650mm
BR-300	300mm	12mm	1000mm

Noted: The secondary signal output line is 2x0.2mm² cable with length of 2m ± 10cm.

Parameter

Module	BR-90	BR-150	BR-200	BR-300
Circumferenc	300mm	500mm	650mm	1000mm
Inner Diameter	90mm	150mm	200mm	300mm
Rated Current	1000A	2000-5000A	4000-8000A	5000-10000A
Sector Diameter	12mm
Output Cable Length	Default 2m,other size customizable
Ratio	200±0.5%mV/kA@50Hz Other Specs customizable…
Positional Error	±1%
OA Output[Zero Drift]	≤1mV
Phase Angle Error	≤0.5°
Linearity	±0.2%
Bandwidth	1Hz - 10kHz
Operating Temp	-40℃ - 80℃
Storage Temp	-50℃ - 90℃
Flame Retardant	Thermoplastic rubber for wires and cables IEC-60332-1-2 compliant
Shielding	100% for coil, 100% for signal cable
Insulation Voltage	Coil: 3000V; Signal cable: 300V

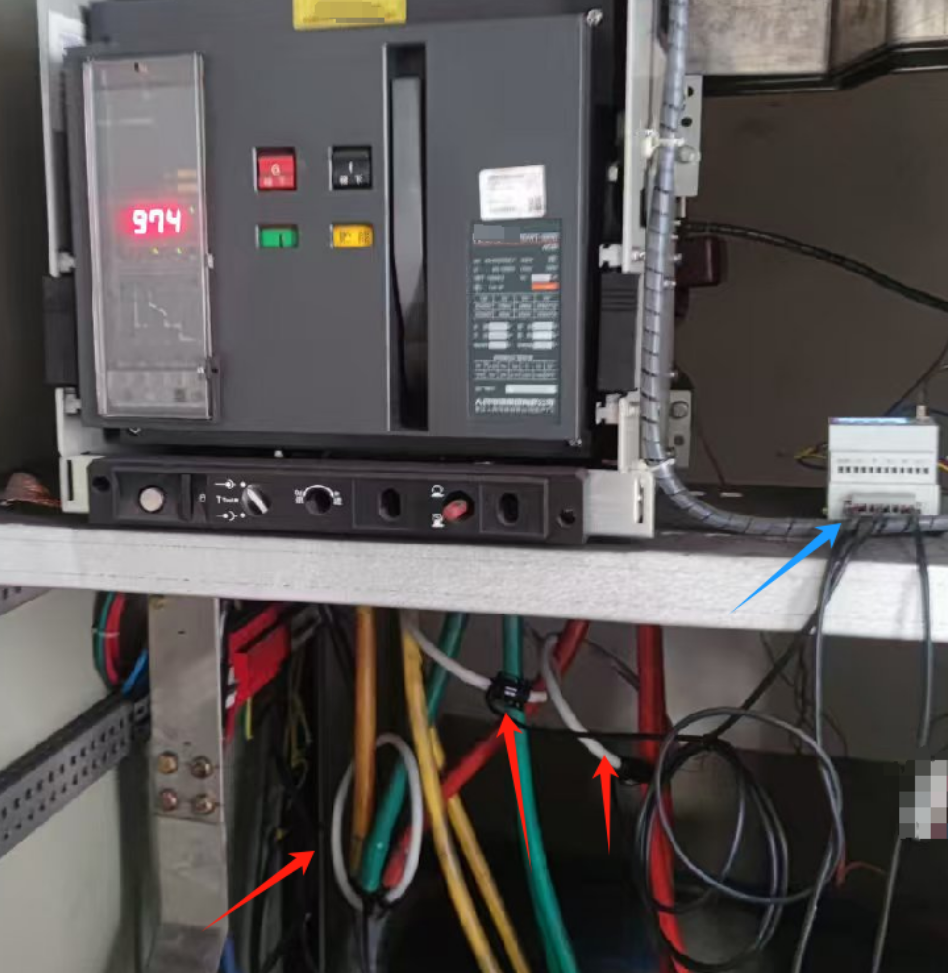

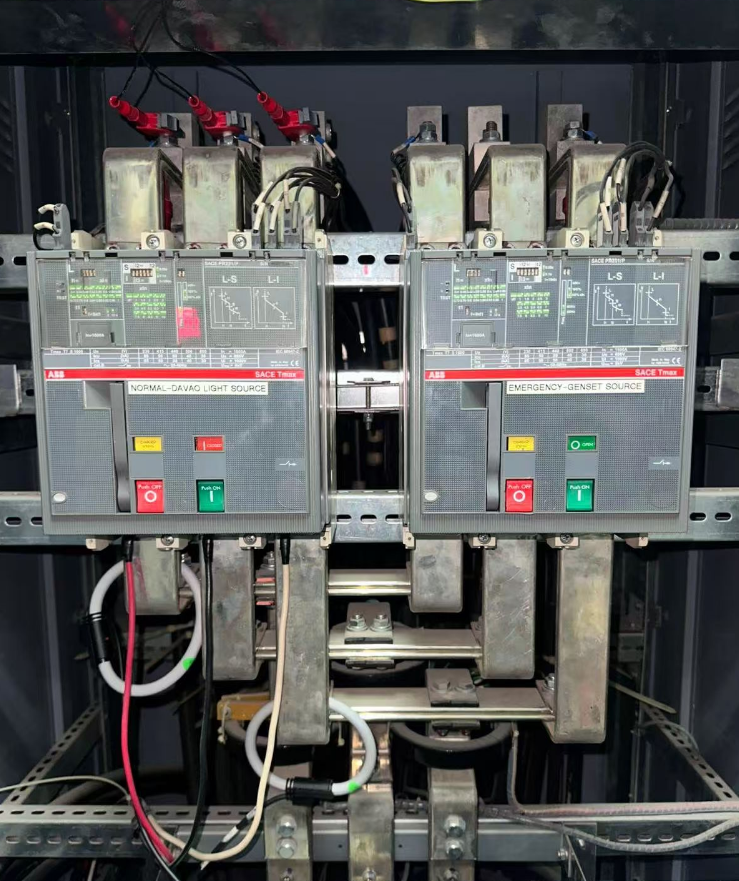

Installation

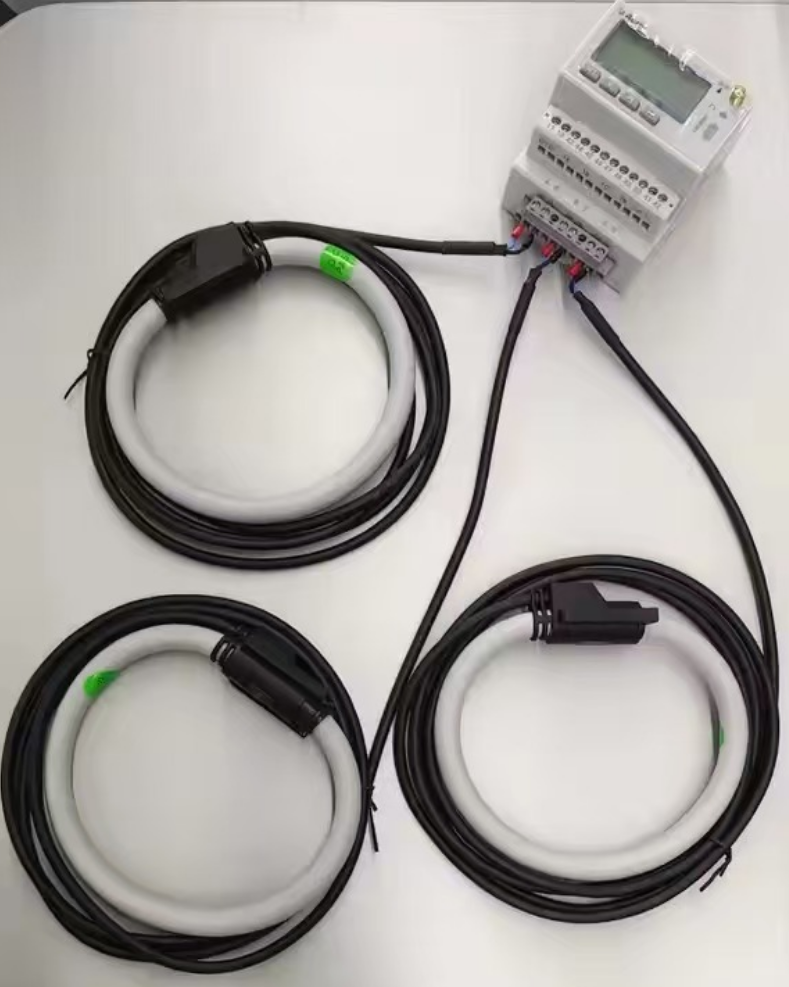

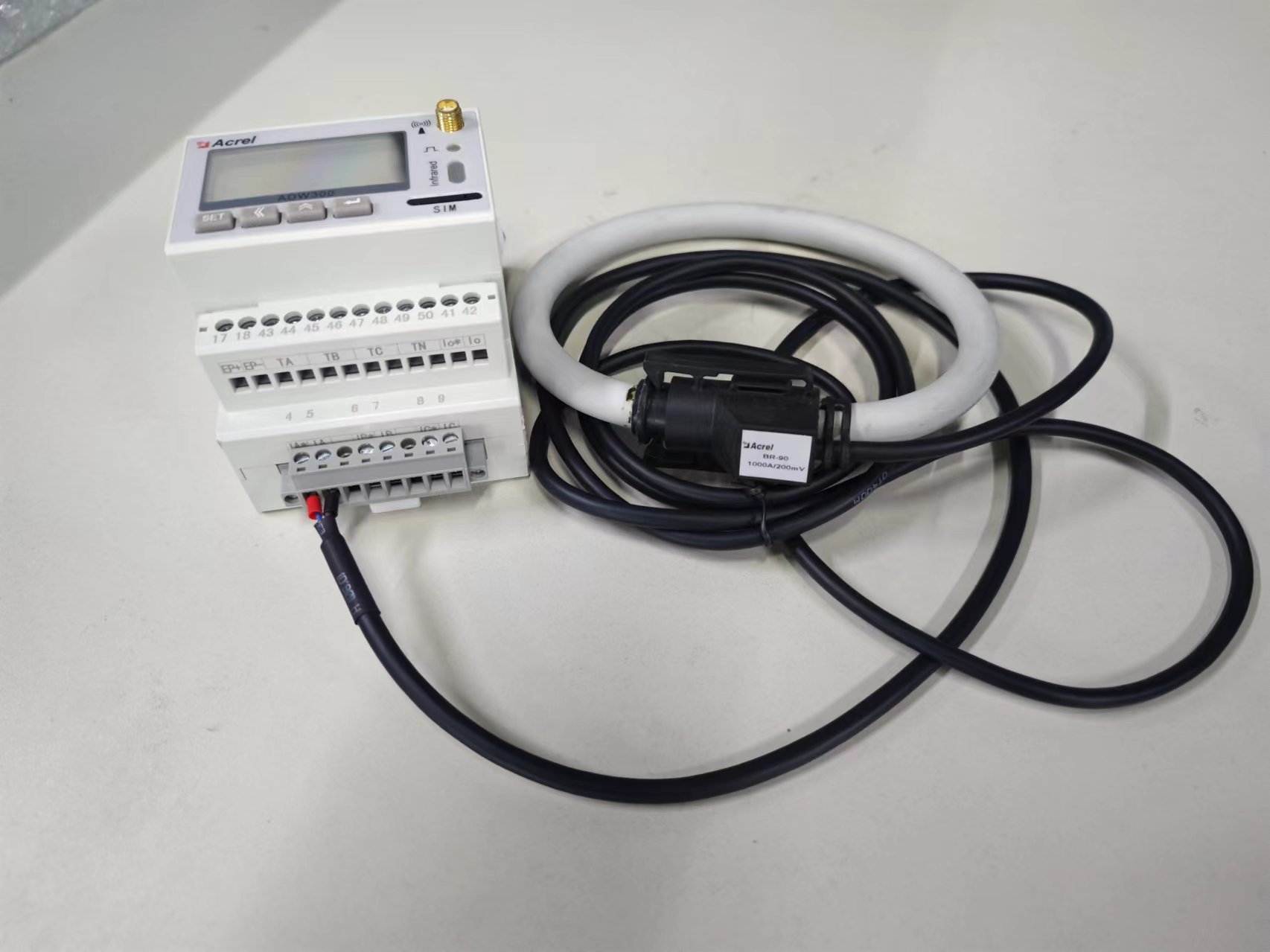

Noted: Before installing the Rogowski CT on monitoring circuits, first you need to wire the Rogowski CT with paired energy meter.

Noted: The clamping up installation direction of CT must be according to the actual forward current direction. [Normally consider the direction from source to loads as forward current direction]
