Medical Insulation Monitoring

AIM-M100

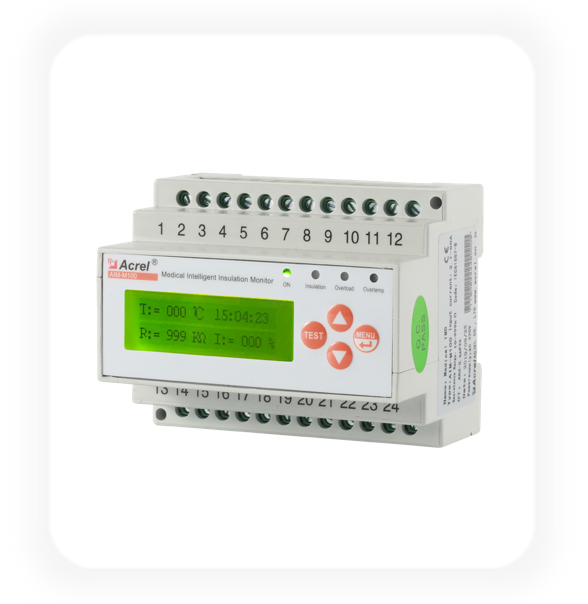

Medical Insulation Monitoring /LCD Display

+
  • AIM-M100_F_E.png
  • AIM-M100_R_E.png
  • AIM-M100_L_E.png
  • AIM-M100_B_E.png

DESCRIPTION

Description

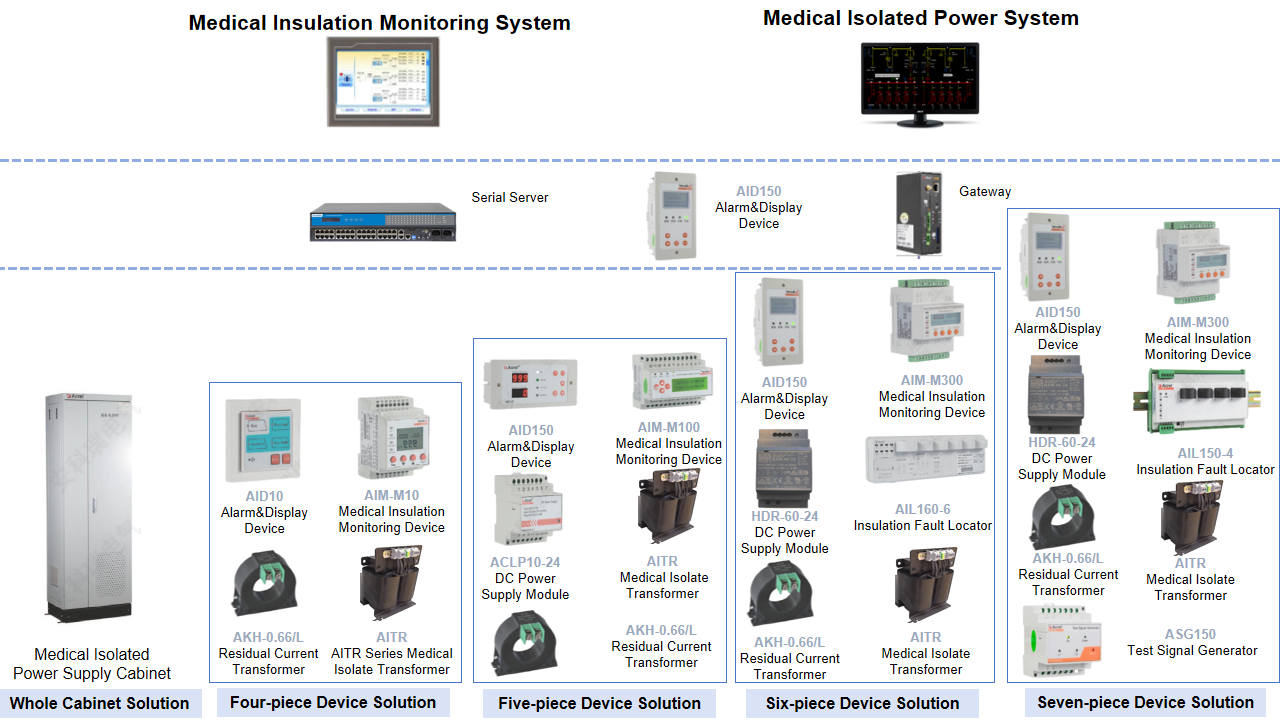

The AlM-M100 medical intelligent insulation monitor is compact, easy to install, intelligent, digital, and networked and is an ideal choice for insulation monitoring of isolation power supply systems in operating rooms, intensive careunits, and other medical places.
Installation:
Easy Installation
Alarm:
Alarm Signals
Certificate:
CE/RoHS
Quality:
Quality Assurance



Parameters
Auxiliary power supply

Voltage

AC 220V(±10%)
Frequency
50/60 Hz

Power Consumption

<8W
Insulation monitoring

Measuring range of

insulation resistance

10~999KΩ

Absolute percentage error

0~±10%

Alarm value

50~999KΩ
Response time <2S
Measuring Voltage <12 V
Measuring Current
<50μA
Load Current
Measuring range
2.1~50A
Alarm value
5~50A
Alarm Output
Output mode
2-route relay output
(Optional)
Contact capacity
AC 250V/3A

DC 30V/3A

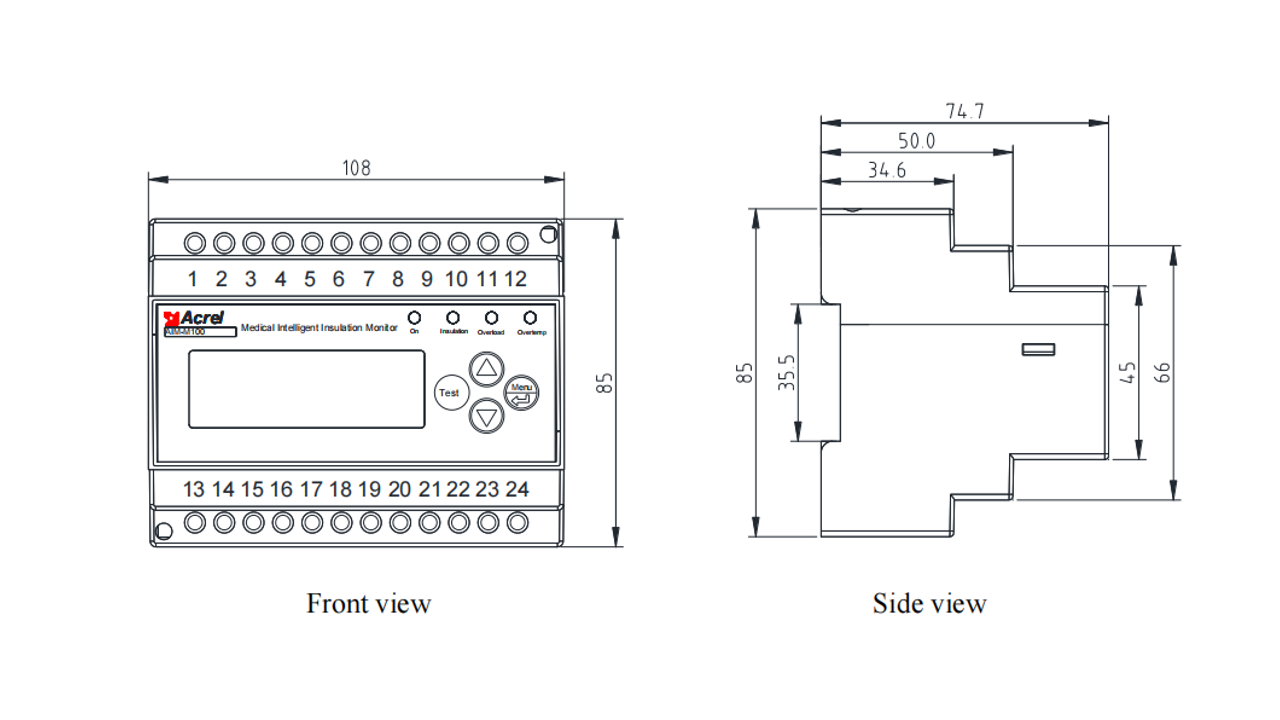

Size

Panel Overview

Structure

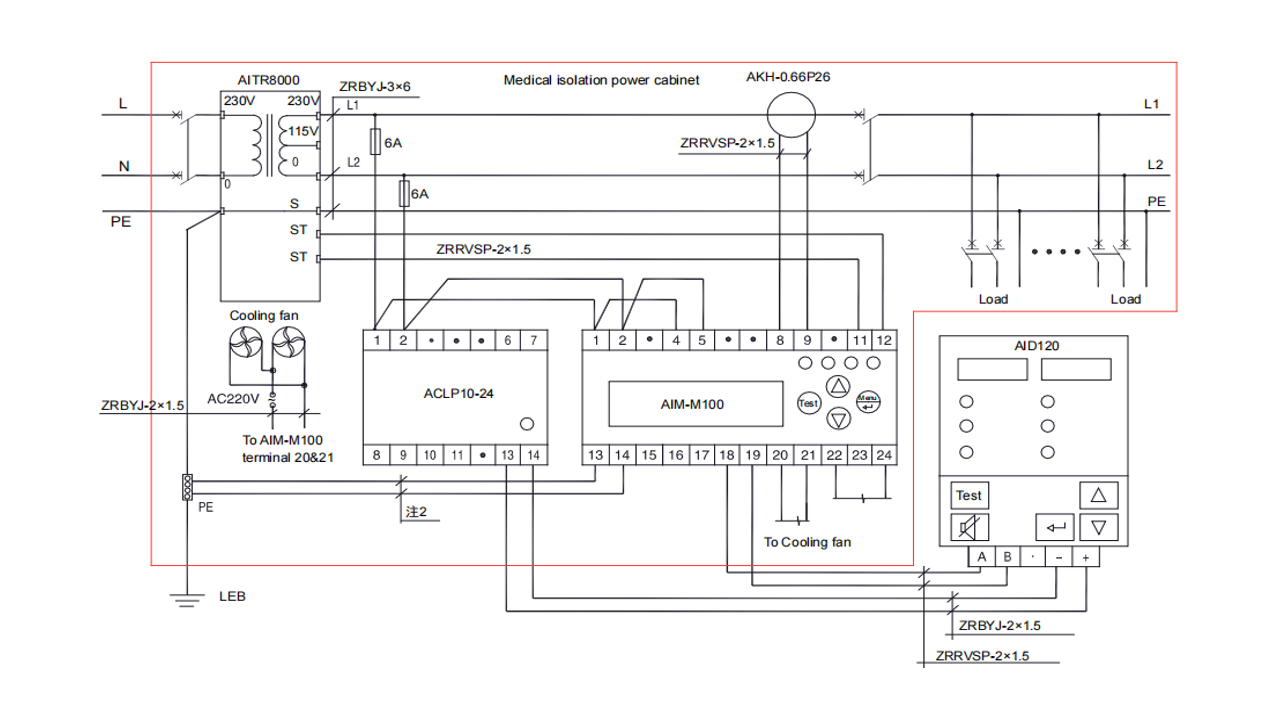

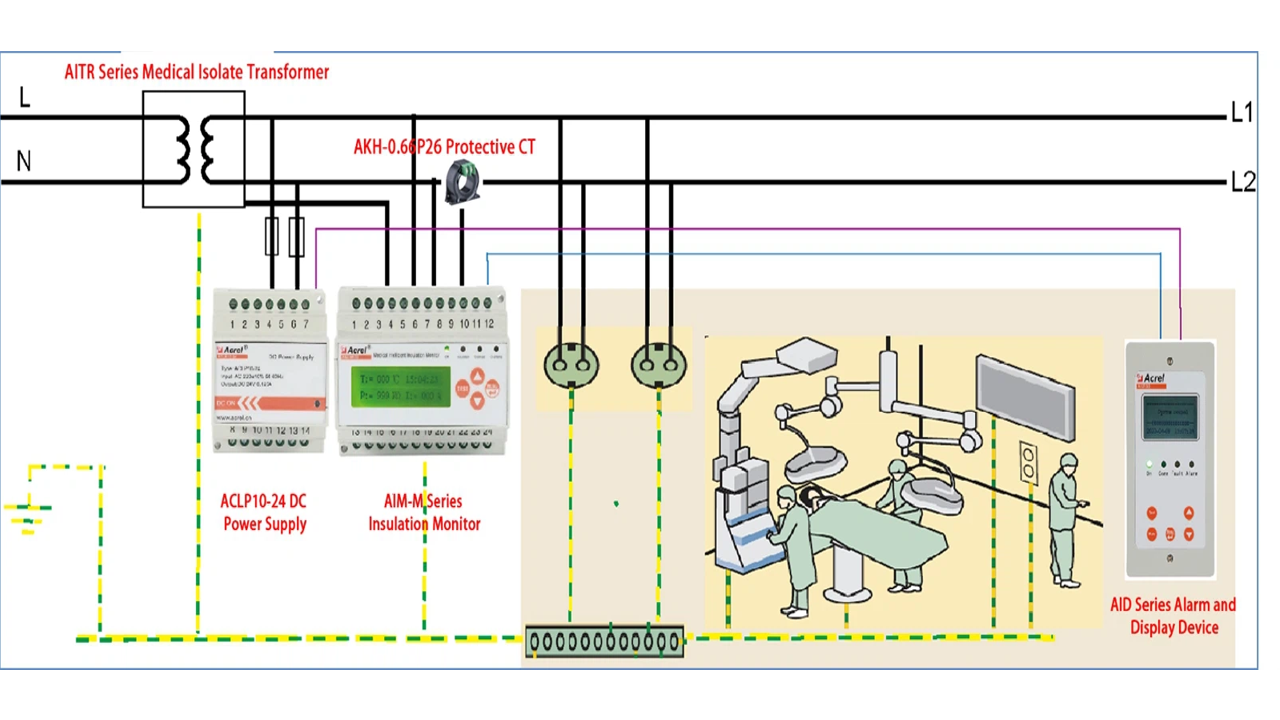

Wiring Diagram









Interface Descriptions
