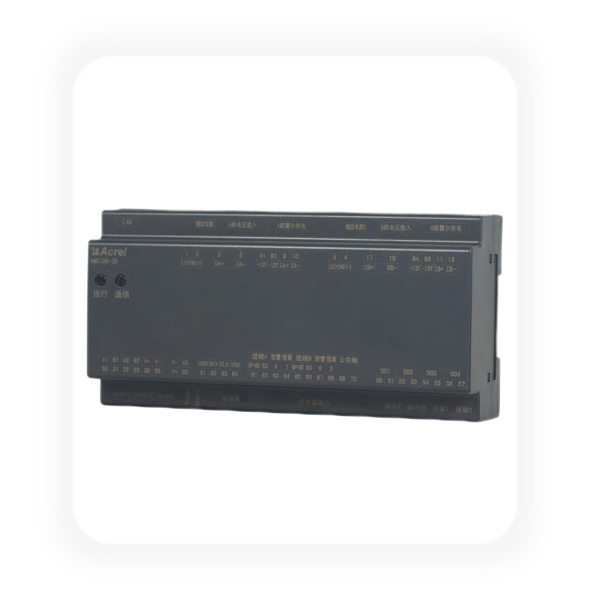

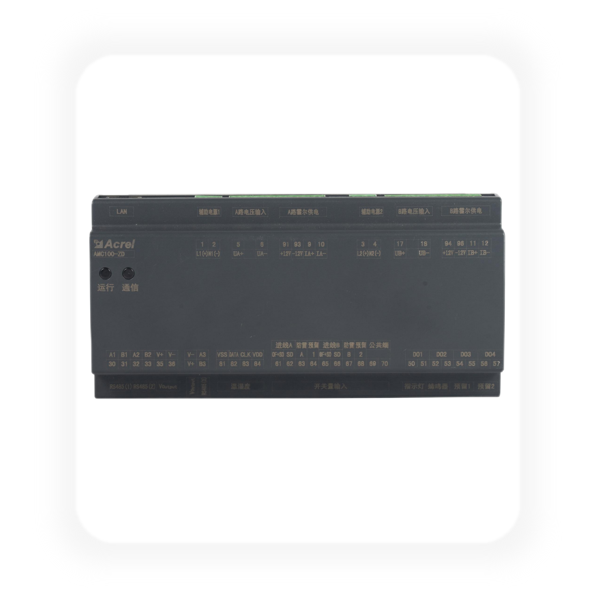

DC Data Center Monitoring Device
AMC100-ZD
Data Center Device / A+B 2 independent DC input
DESCRIPTION
|
AMC100 series DC precision power distribution monitor is a measurement device designed specifically for the power management of data center servers. The device design exquisite, can for A + B two into line and 192 road for electrical parameters, the input and output parameters of the switch state and the lightning protection device such as real-time monitoring, all alarm threshold measurement channels can be set in A separate, to qualify the limit event trigger system sound and light alarm, immediately on the volume in the traditional instrument, the height of the monitoring circuit integration. |
 |
|
 |
 |
|
| Installation: Easy Installation |
Communication: |
|
 |
 |
|
| Certificate: CE/IEC |
Quality: Quality Assurance |
|
 |
Instrument Model | AMC100-ZD | |||
| Measured Parameters | Voltage, Current, Power, Electric energy, Ambient temperature and Humidity | ||||
| Bus Voltage | Rated | 48VDC,240VDC,336VDC | |||
| Measuring Range | ±20% | ||||
| Overload | Instantaneous voltage 2 times per second | ||||
| Current Incoming Circuit | Rated | 5V（Hallsensor, ±12V powered by AMC100-ZD） | |||
| Overload | Duration is 1.2 times, instantaneous 10 times/second | ||||
|
Temperature and humidity
|
Temperature range | -40℃～+99℃ | |||
| Humidity range | 20%～90% | ||||
| Measuring Accuracy | Coil In | Voltage/Current level 0.5, power/electric energy level1 | |||
| Temperature | ±1% | ||||
| Humidity | ±5% | ||||
| Auxiliary Supply | Signal Power(≤15W） | ||||

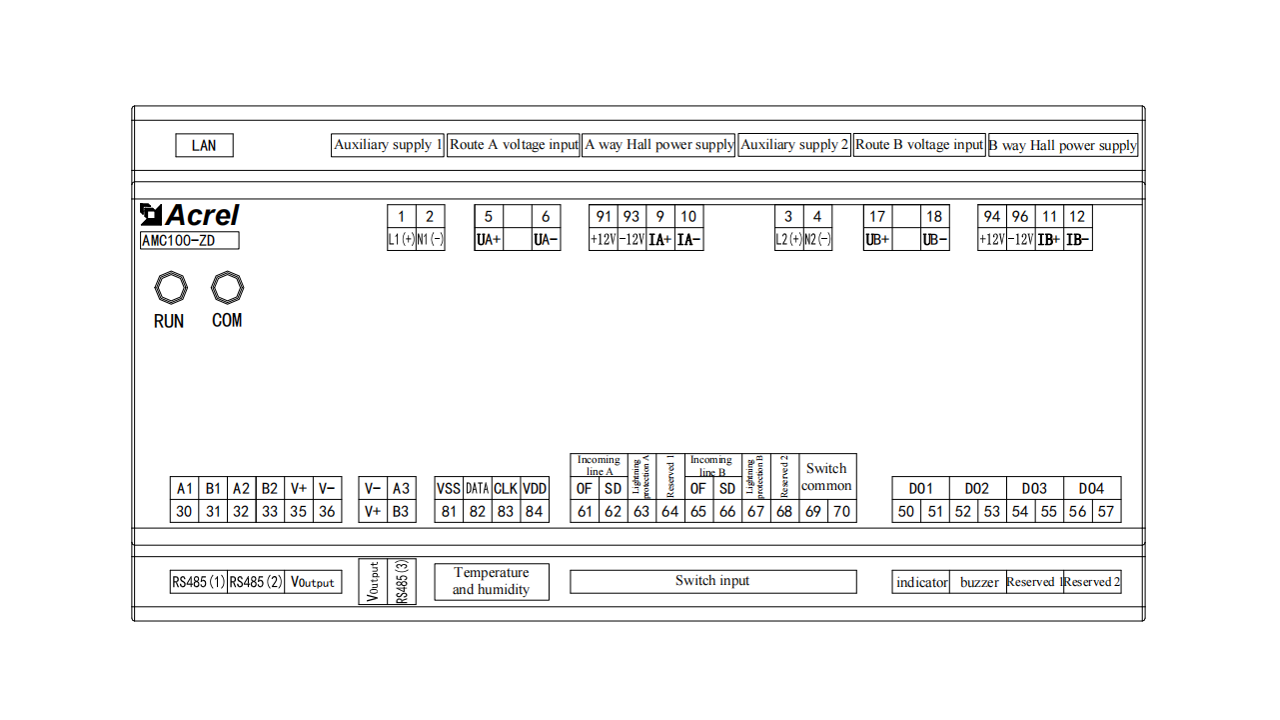

Interface Descriptions
这里是占位文字
Download
Related Products
Messages
Filling in your phone and email information will help us to contact you in a timely manner and resolve your issue as soon as possible.
DC Data Center Monitoring Device
Product Summary:
Used for connection between pipe ends; Also useful is a flange on the inlet and outlet of the equipment, used for connecting between two devices, such as a gearbox flange. Flange connection or flange joint refers to a detachable connection consisting of flanges, gaskets, and bolts connected to each other as a combination sealing structure. Pipeline flange refers to the flange used for piping in pipeline devices, and when used on equipment, it refers to the inlet and outlet flanges of the equipment. There are holes on the flange, and bolts make the two flanges tightly connected. Seal the flanges with gaskets.
Classification：Butt welded pipe fittings
Keywords: Butt welded pipe parts
产品详细
There are GB series (national standard), JB series (mechanical department), HG series (chemical department), ASME B16.5 (American standard), BS4504 (British standard), DIN (German standard), JIS (Japanese standard).
Advantages:
The on-site installation is more convenient, and the process of welding seam rubbing can be omitted
Disadvantages:
The neck height of the flat welded flange with a neck is relatively low, which improves the stiffness and load-bearing capacity of the flange. Compared with butt welded flanges, the welding workload is large, the consumption of welding rods is high, and it cannot withstand high temperature and pressure, repeated bending, and temperature fluctuations.
The connection is not easily deformed, with good sealing effect, and is widely used. It is suitable for pipelines with significant temperature or pressure fluctuations, as well as pipelines with high, high, and low temperatures. It is also used for transporting expensive media, flammable and explosive media, and toxic gases
