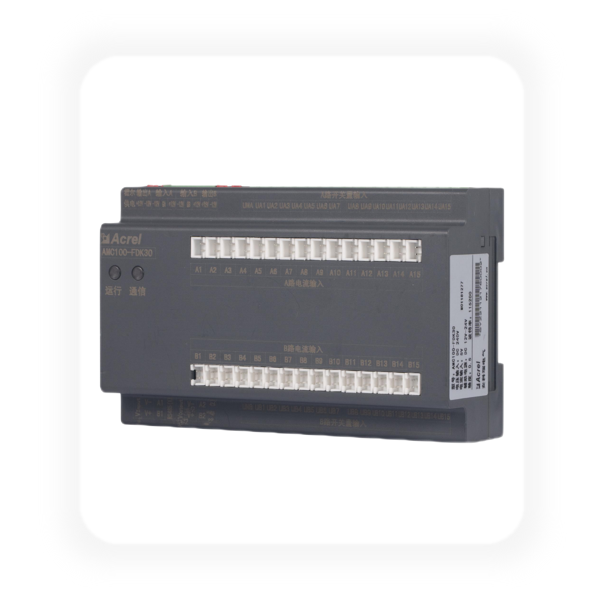

DC Data Center Monitoring Device
AMC100-FDK30
Data Center Device / Monitor the 30 voltage of the A+B DC outlet
DESCRIPTION
|
AMC100 series DC precision power distribution monitor is a measurement device designed specifically for the power management of data center servers. The device design exquisite, can for A + B two into line and 192 road for electrical parameters, the input and output parameters of the switch state and the lightning protection device such as real-time monitoring, all alarm threshold measurement channels can be set in A separate, to qualify the limit event trigger system sound and light alarm, immediately on the volume in the traditional instrument, the height of the monitoring circuit integration. |
 |
|
 |
 |
|
| Installation: Easy Installation |
Communication: |
|
 |
 |
|
| Certificate: CE/IEC |
Quality: Quality Assurance |
|
 |
Instrument Model | AMC100-FDK30 | |||
| Measured Parameters | Voltage, Current, Power, Electric energy | ||||
| Bus Voltage | Rated | 48VDC,240VDC,336VDC | |||
| Measuring Range | ±20% | ||||
| Overload | Instantaneous voltage 2 times per second | ||||
| Current Incoming Circuit | Rated | 5V（Hall sensor, need external power supply ±12V or ±15V） | |||
| Overload | Duration is 1.2 times, instantaneous 10 times/second | ||||
| Auxiliary Supply | Powered By AMC-ZD; DC 12-24V Power Supply when used alone | ||||
| Measuring Accuracy | Coil Out | Voltage/Current level 0.5, power/electric energy level1 | |||
| Communication | RS485/Modbus-RTU | ||||
| Protection Level | IP20 | ||||
| Pollution Level | 2 | ||||

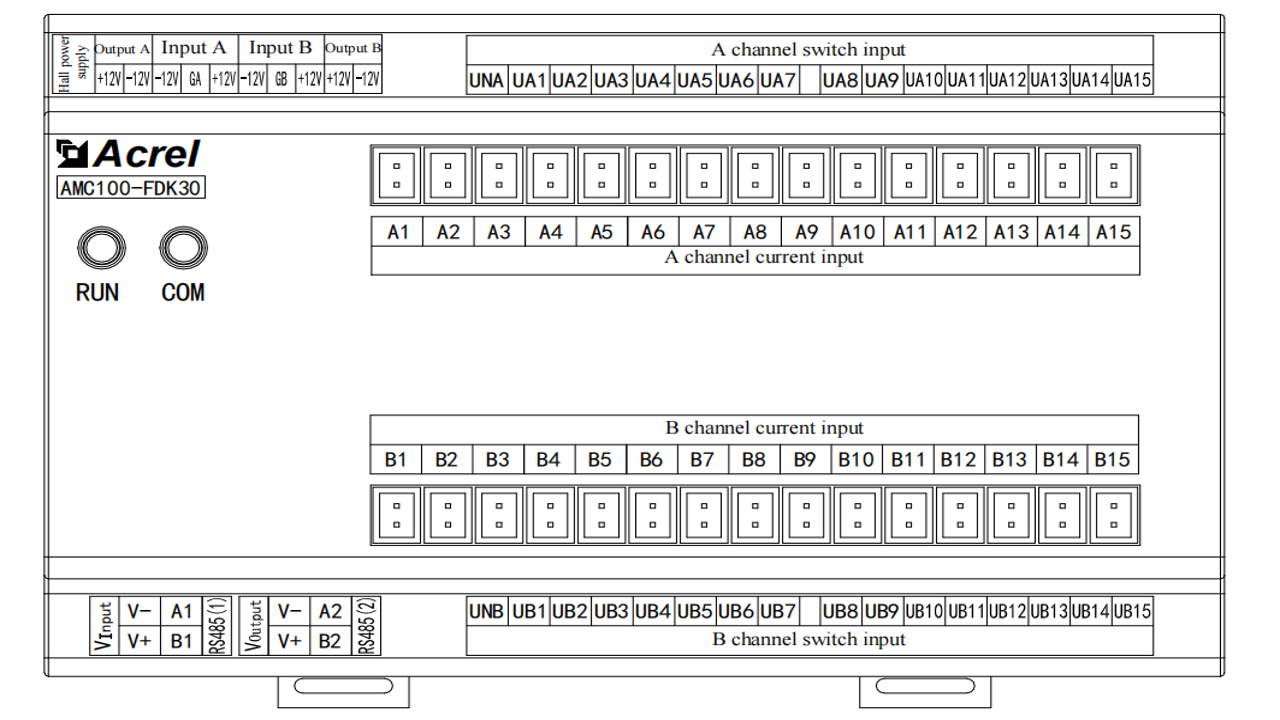

Interface Descriptions
这里是占位文字
