Open Type

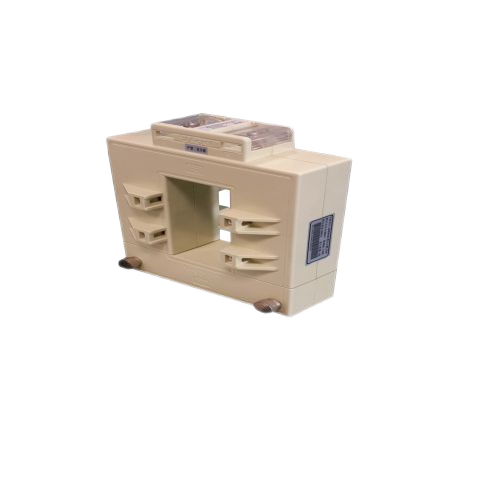

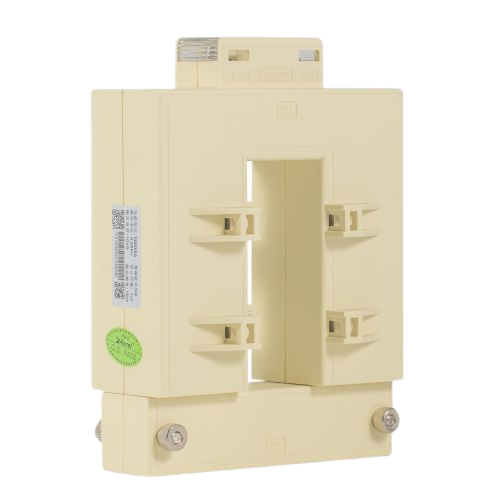

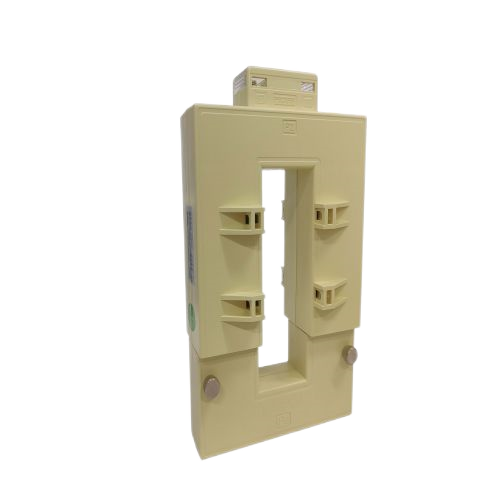

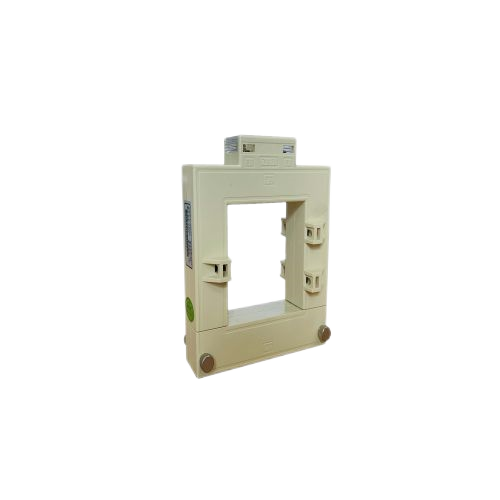

Current transformer

AKH-0.66/K

DOWNLOAD PDF >>

CONTACT >>

+

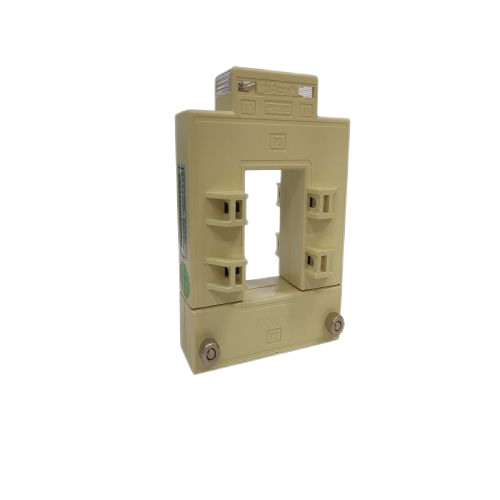

  • 0e12bbb05955e9064493a031d5ccb16.png
  • K型.png

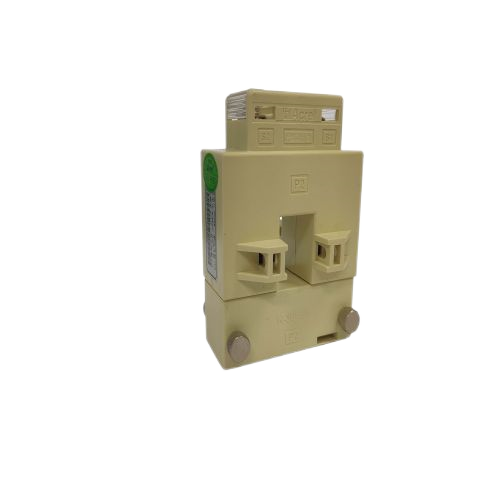

  • K-30X20.png

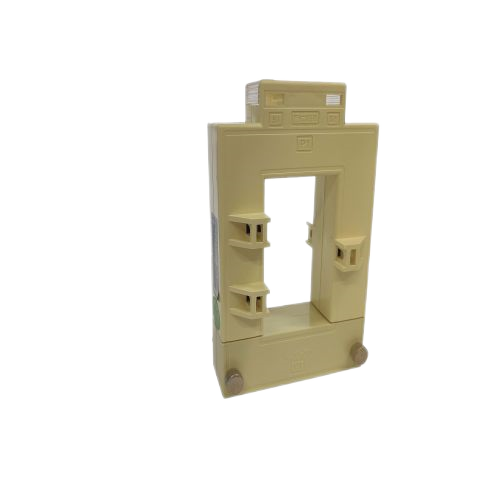

  • K-60X40.png
  • K-80X40.png
  • K-80X50.png

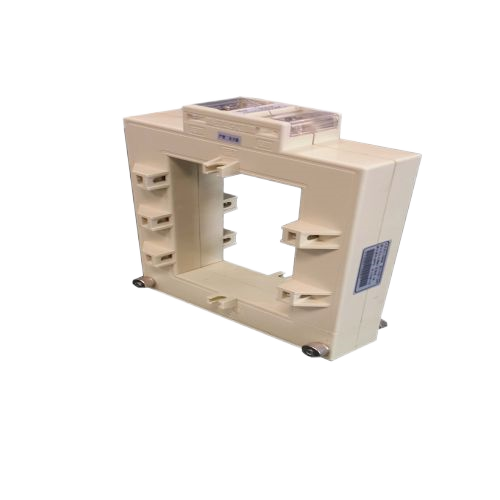

  • K-80X80.png
  • K-100X40-2.png

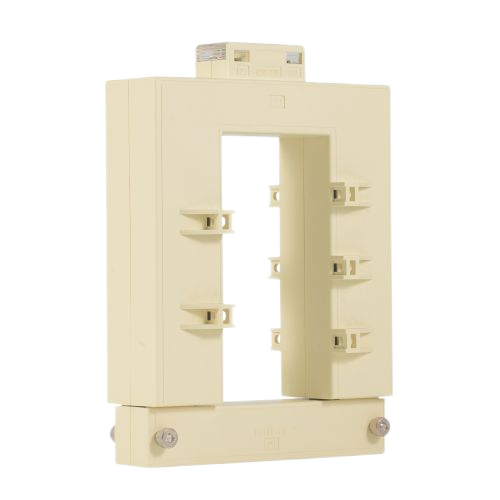

  • K-120X60-2.png

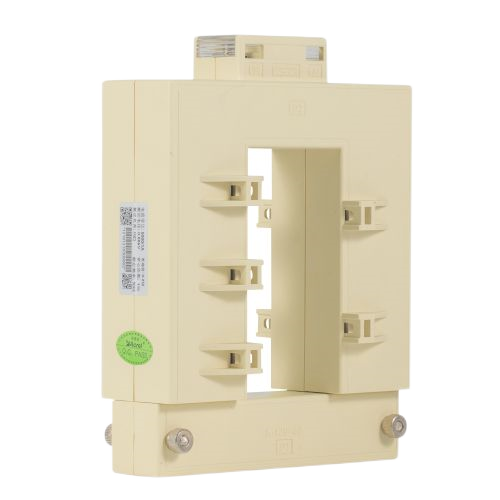

  • K-120X80.png

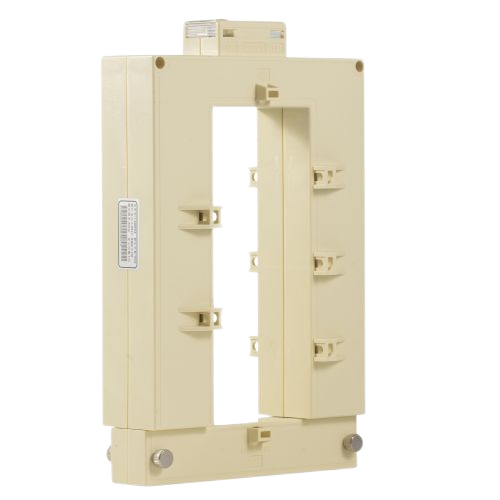

  • K-130X40.png

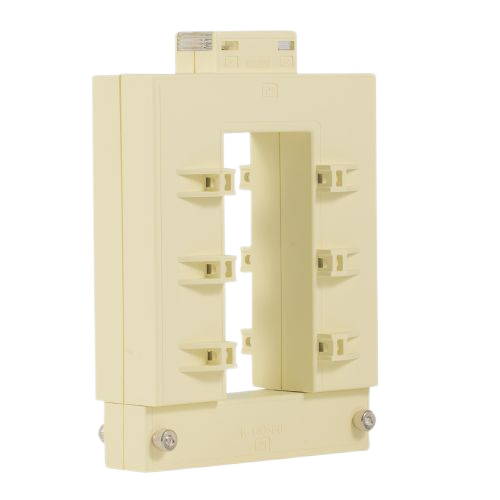

  • K-140X60-2.png
  • K-160X80-2.png
  • K-200X80-3.png
  • K-S-50X30-3.png

DESCRIPTION

Description
AKH-0.66/K series split current transformers are mainly used in reconstructing projects of urban and rural power grids. They can be mounted easily without the removal of the primary bus. They also can be operated with electricity, which prevents the normal utilization of electricity. Thus, they save manpower, material resources, and financial resources and improve the efficiency of users.< This series matches with relay protection, measuring, and metering equipment.

Installation:

Easy Installation

Service:

24 Hour

Certificate:

CE/MID

Quality:

Quality Assurance

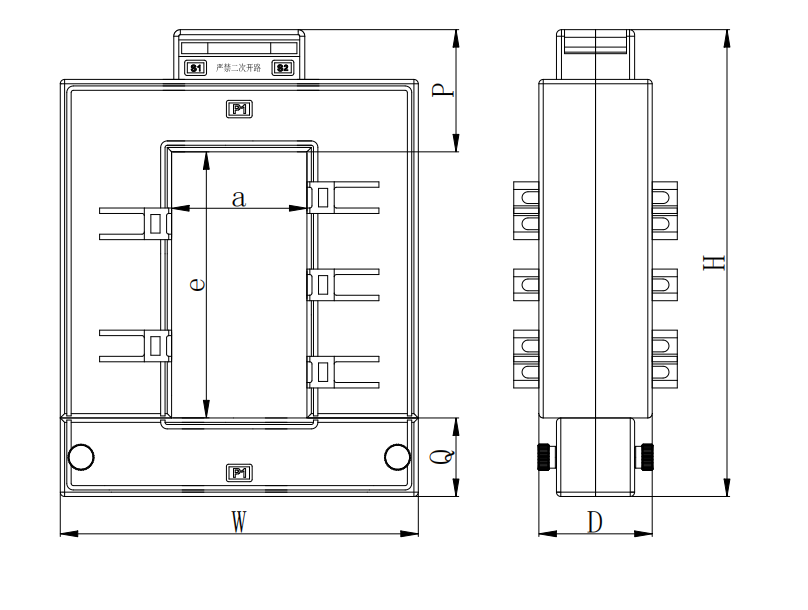

Size



Size（mm）Specification Outline size Through size Mountng size  Tolerance
W H D a e P Q
K-30×20 90 114 40 22 32 50 32











 ±1
K-60×40 114 140 36 42 62 45 33
K-80×40 122 162 40 42 82 45 33
K-80×50 114 159 36 52 82 45 32
K-80×80 144 159 36 82 82 45 33
K-120×80 144 194 52 42 102 56 36
K-120×60 164 214 52 62 122 56 36
K-100×40 144 199 36 82 122 45 32
K-130×40 144 224 52 42 132 56 36
K-130×60 170 222 70 60 130 56 36
K-140×60 164 234 52 62 142 56 36
K-160×80 184 254 52 82 162 56 36
K-200×80 184 294 52 82 202 56 36



Parameter
Type Rated current ratio(A) Precision degree Rated load(VA)

K-30×20

 20-75/1A 1 0.2
100-150/5（1）A 1 1
200/5（1）A 1 1.5
250-300/5（1）A 0.5 1.5
350-400/5（1）A 0.5 2.5

K-60×40

 250-300/5（1）A 1 1.5
350-450/5（1）A 0.5 1.5
500-800/5（1）A 0.5 2.5
1000-1250/5（1）A 0.5 5
1500-2000/5（1）A 0.5 10

K-80×40

 300-450/5（1）A 0.5 2.5
500-800/5（1）A 0.5 5.0
1000-2000/5（1）A 0.5 10
2500-3000/5（1）A 0.2 10

K-80×50

 250-300/5（1）A 1 1.5
400-450/5（1）A 0.5 1.5
500-800/5（1）A 0.5 2.5
1000/5（1）A 0.5 5

K-80×80

 250-300/5（1）A 1 1.5
400-450/5（1）A 0.5 1.5
500-800/5（1）A 0.5 2.5
1000/5（1）A 0.5 5

K-100×40

 1000-2000/5（1）A 0.5 10
2500-3000/5（1）A 0.2 10
4000-5000A/5（1）A 0.2 15

K-120×60

 400-450/5（1）A 0.5 2.5
500-800/5（1）A 0.5 5.0
1000-2000/5（1）A 0.5 10
2500-5000/5（1）A 0.2 10

K-120×80

 500-800/5（1）A 0.5 2.5
1000-1200/5（1）A 0.5 5
1250-1500/5（1）A 0.5 7.5

K-130×40

 1000-2000/5（1）A 0.5 10
2500-5000/5（1）A 0.2 10

K-130×60

 1000-2000/5（1）A 0.5 10
2500-5000/5（1）A 0.2 15

K-140×60

 1000-2000/5（1）A 0.5 10
2500-3000/5（1）A 0.2 10
4000-5000/5（1）A 0.2 15

K-160×80

 1000-2000/5（1）A 0.5 10
2500-3000/5（1）A 0.2 10
4000-5000/5（1）A 0.2 15

K-200×80

 1000-2000/5（1）A 0.5 10
2500-3000/5（1）A 0.2 10
4000-5000/5（1）A 0.2 15



Technical indicators

● Rated operation voltage AC 0.66kV(Equivalent AC 0.63kV,GB156-2003)

● Rated frequency 50-60Hz

● Ambient air temperature -30℃-70℃

● Height above sea level≤3000m

● Power frequency withstand voltage 3000v/1min 50Hz

● Used in place without direct rain and snow, without severe pollution and acute shock

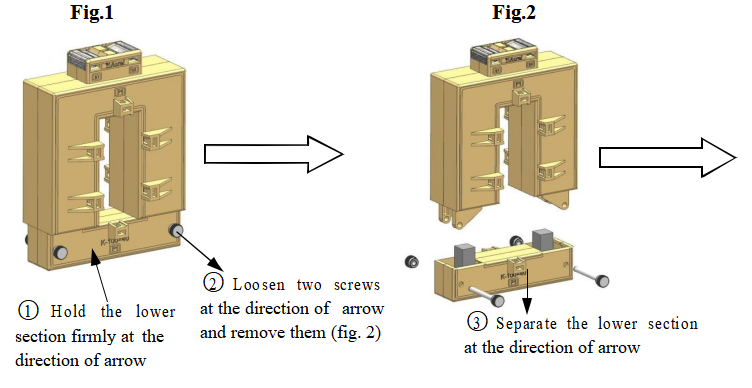

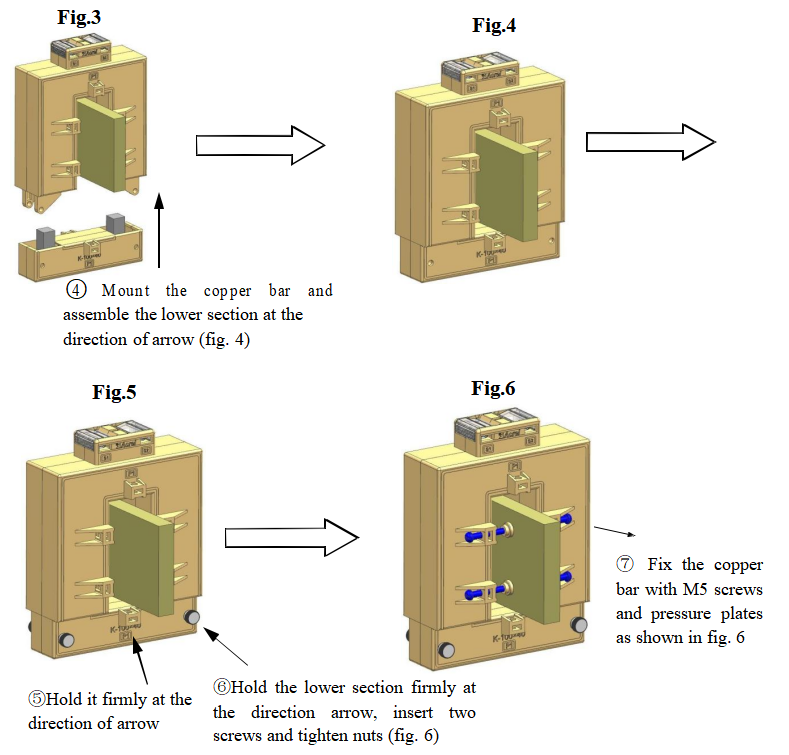

Installation
