DESCRIPTION

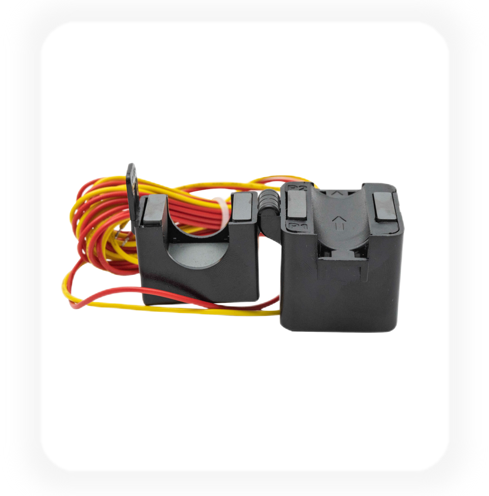

| AKH-0.66/K-Φ series split current transformers, They are patented products with beautiful appearance, convenient installation and wiring, mainly used in power operations and electricity reconstruction projects. Generally, output are 0-100mA signal. The advantages of small size, high precision, strong carrying capacity and convenient installation, they can used with AMC16 multi-circuit monitoring device. |  |
|
 |
 |
|
|
Installation: Easy Installation |
Service: 24 Hour |
|
 |
 |
|
|
Certificate: CE/MID |
Quality: Quality Assurance |
|
| Type |
Rated current ratio (A) |
Precision degree and Corresponding rated Load (VA) | Circle |
Hole Size (mm) |
Voltage |
| Class 0.5 | |||||
|
K-Φ10 |
5A/1.25mA | 10 |
1 |
Φ10 |
3KV |
| 10-20A/5mA | |||||
| 40-60A/20mA | |||||
| K-Φ16 | 20-50A/10mA | 10 |
Φ16 |
||
| 40-100A/20mA | |||||
| 100A/40mA | |||||
| K-Φ24 | 60-200A/20mA | 10 |
Φ24 |
||
| 100-250A/40mA | |||||
| 400A/100mA | |||||
| K-Φ36 | 200-400A/20mA | 10 |
Φ36 |
||
| 300-600A/100mA | |||||
| 400A/40mA | |||||
| 600A/75mA |
 |
 |
 |

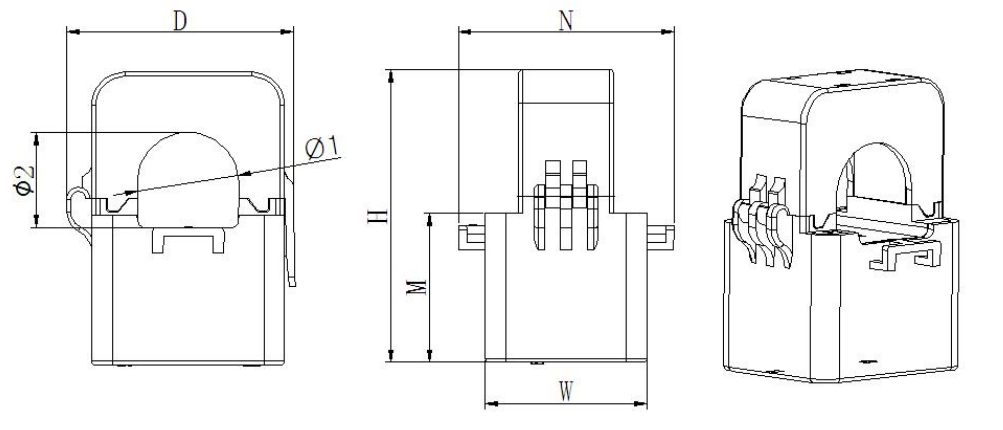

Interface Descriptions
