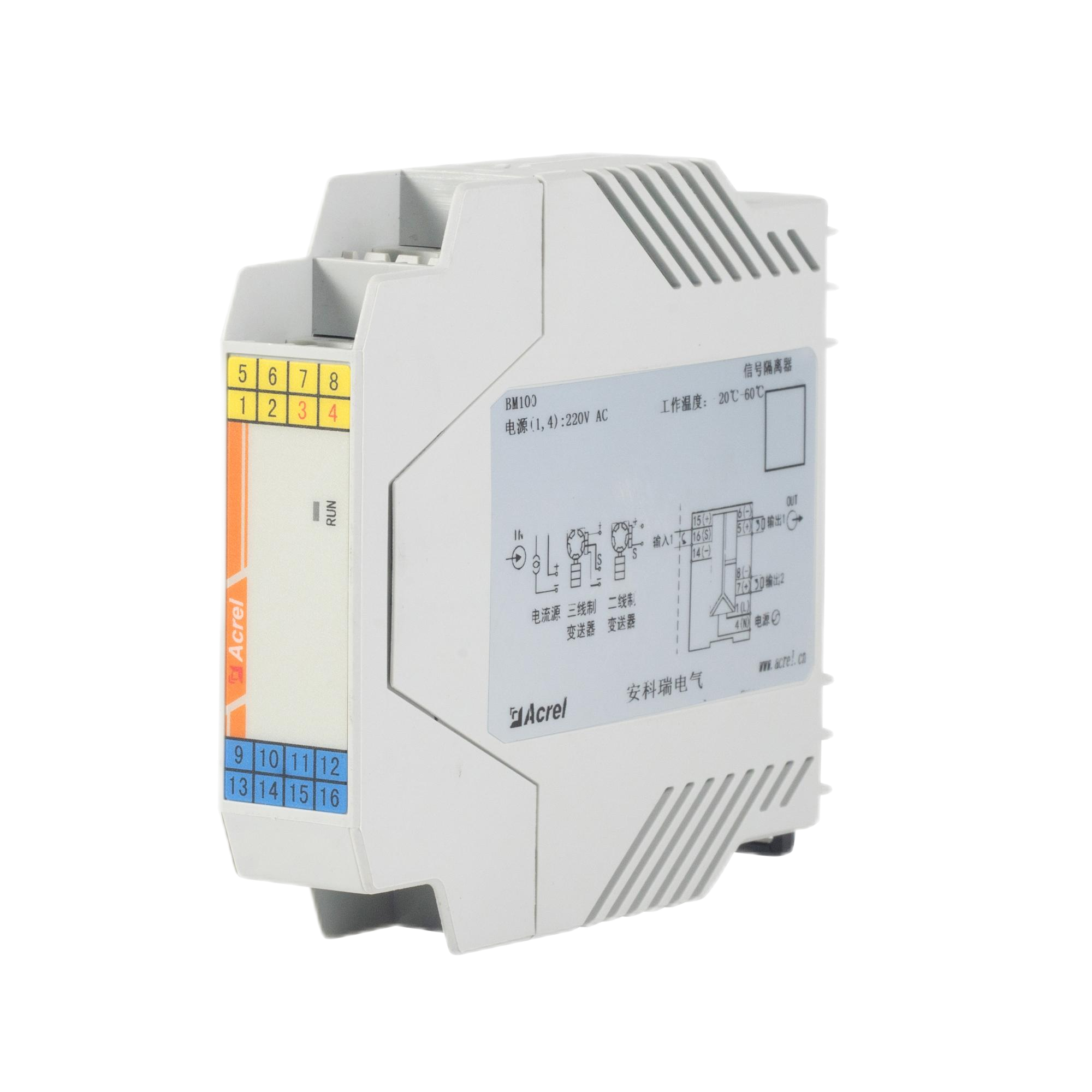

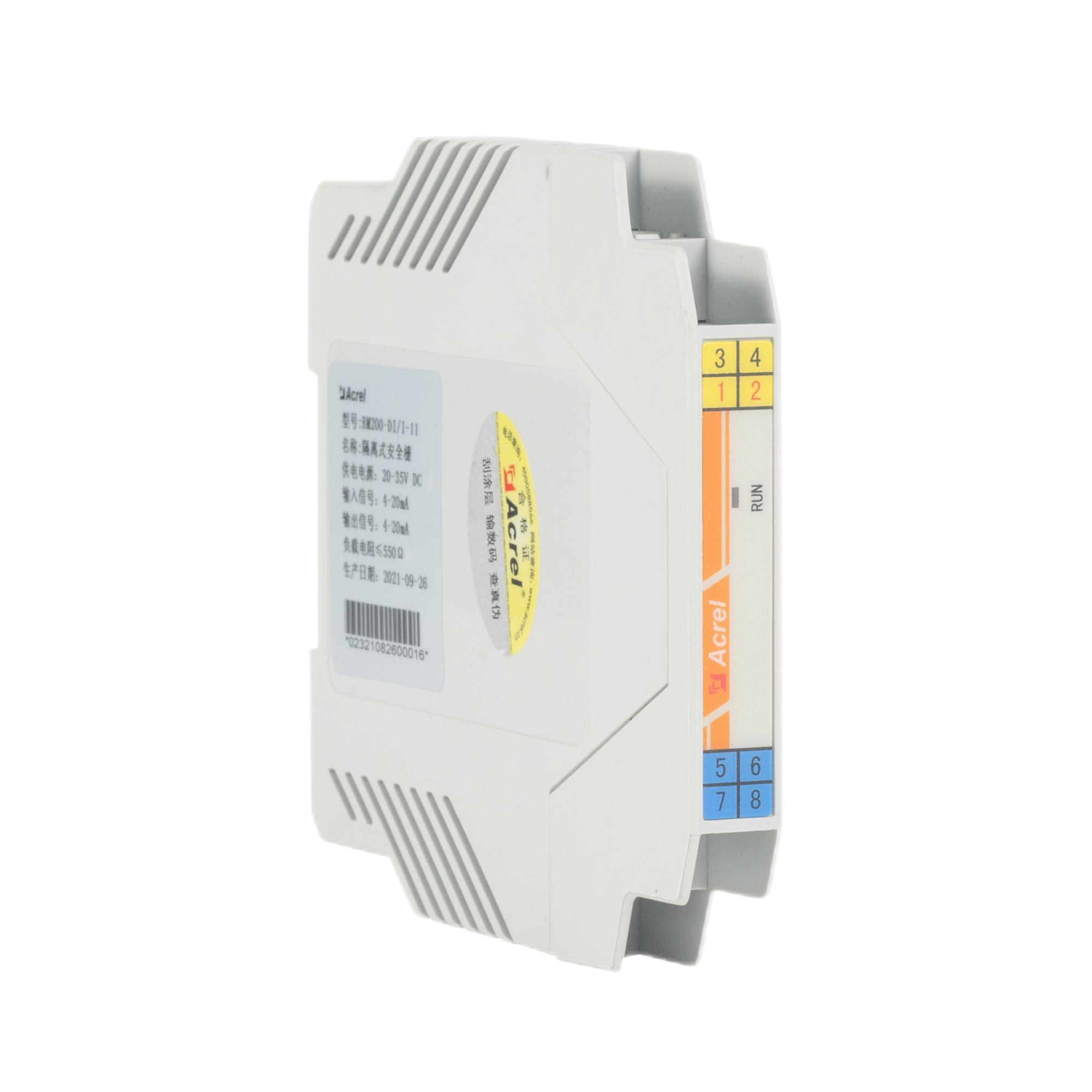

Signal Isolator

BM100、BM200

Pointer Meter/Digital Display Meter/PLC

DOWNLOAD PDF >>

CONTACT >>

Home page

DESCRIPTION

Description

BM100 series signal isolators can measure the electrical parameters such as current and voltage or non-electrical parameters such as temperature and resistance at high speed and accurately, and can be converted into standard analog signal output after the isolation device. It can be directly connected with pointer meter and digital display meter, and can also be connected with automatic control instrument (such as PLC), various A/D converters and computer systems. It is widely used in electric power, railway, petrochemical, metallurgy, chemical industry,food, warehousing and other industries.

Installation: Easy Installation	Services: 24 Hour

Certificate: CE	Quality: Quality Assurance

Parameters

Size

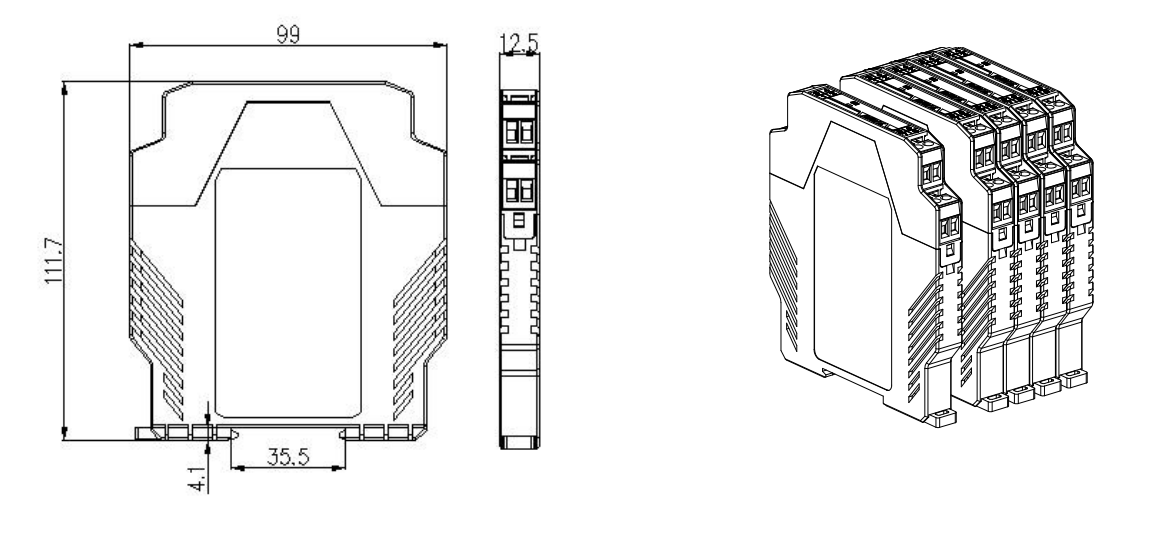

BM100-□□/□-B□□ outline dimension

BM100-□□/□-C□□ outline dimension

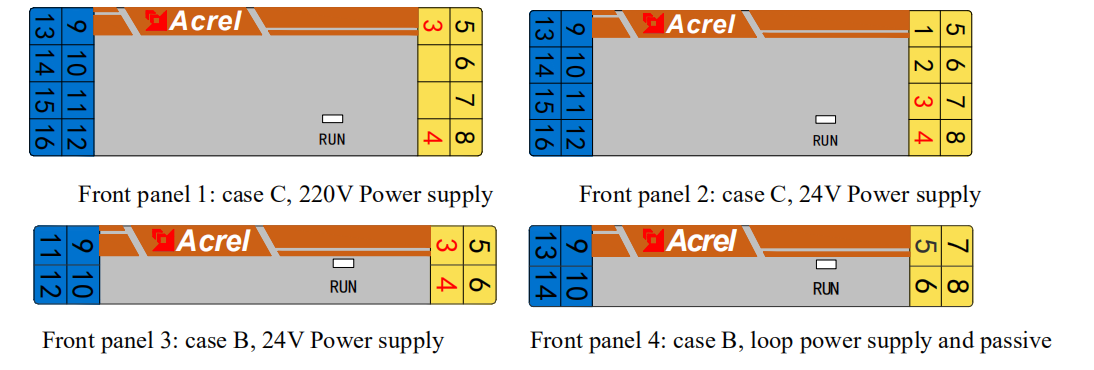

Panel Overview

Application

Home page

Interface Descriptions

Download

506 BM100 Analog Isolator Manual V1.4.pdf

Download

Signal Isolator

Product Summary:

Used for connection between pipe ends; Also useful is a flange on the inlet and outlet of the equipment, used for connecting between two devices, such as a gearbox flange. Flange connection or flange joint refers to a detachable connection consisting of flanges, gaskets, and bolts connected to each other as a combination sealing structure. Pipeline flange refers to the flange used for piping in pipeline devices, and when used on equipment, it refers to the inlet and outlet flanges of the equipment. There are holes on the flange, and bolts make the two flanges tightly connected. Seal the flanges with gaskets.

Classification：Butt welded pipe fittings

Keywords: Butt welded pipe parts

产品详细

There are GB series (national standard), JB series (mechanical department), HG series (chemical department), ASME B16.5 (American standard), BS4504 (British standard), DIN (German standard), JIS (Japanese standard).

Advantages:

The on-site installation is more convenient, and the process of welding seam rubbing can be omitted

Disadvantages:

The neck height of the flat welded flange with a neck is relatively low, which improves the stiffness and load-bearing capacity of the flange. Compared with butt welded flanges, the welding workload is large, the consumption of welding rods is high, and it cannot withstand high temperature and pressure, repeated bending, and temperature fluctuations.

The connection is not easily deformed, with good sealing effect, and is widely used. It is suitable for pipelines with significant temperature or pressure fluctuations, as well as pipelines with high, high, and low temperatures. It is also used for transporting expensive media, flammable and explosive media, and toxic gases

language

Tel: +86 13774417083
Whatsapp: +86 15076062079
E-mail: binn@acrel-electric.com
Address: 253 Yulu Road, Jiading District, Shanghai

ABOUT US

Company Profile

History

SOLUTIONS

PRODUCTS

E-mail

	Channel type			Single-way input and single-way output, single-way input and double-way output, double-way input and double-way output
	Input type			Current/Voltage/Thermal resistance Pt100/Resistance
	Input signal			DC 0~20mA /4~20mA DC 0~5V /1~5V /0~10V Pt100(Minimum range: 50℃) 0~10KΩ(Minimum range: 1KΩ)
	Output signal			DC 0~20mA /4~20mA ; Load resistance: ≤550Ω DC 0~5V /1~5V; Load resistance: ≥330KΩ Load resistance: ≥30KΩ(Pt100/Resistance input) DC 0~10V /2~10V; Load resistance: ≥500KΩ Load resistance: ≥30KΩ(Pt100/Resistance input)
	Transmission accuracy			0.2%
	Temperature modulus			50ppm/℃ (Voltage output: 100ppm/℃)
	Response time			5ms to reach 90% of final value (RTD Pt100/resistance input: 1s to reach 90% of final value）
	Power supply			20~35V DC or 85~265V AC/DC
	Work temperature			-20℃~+60℃
	Fix mode			Rail installation
	Dielectric strength			≥1500V AC/1 min (Among input//output//power supply)
