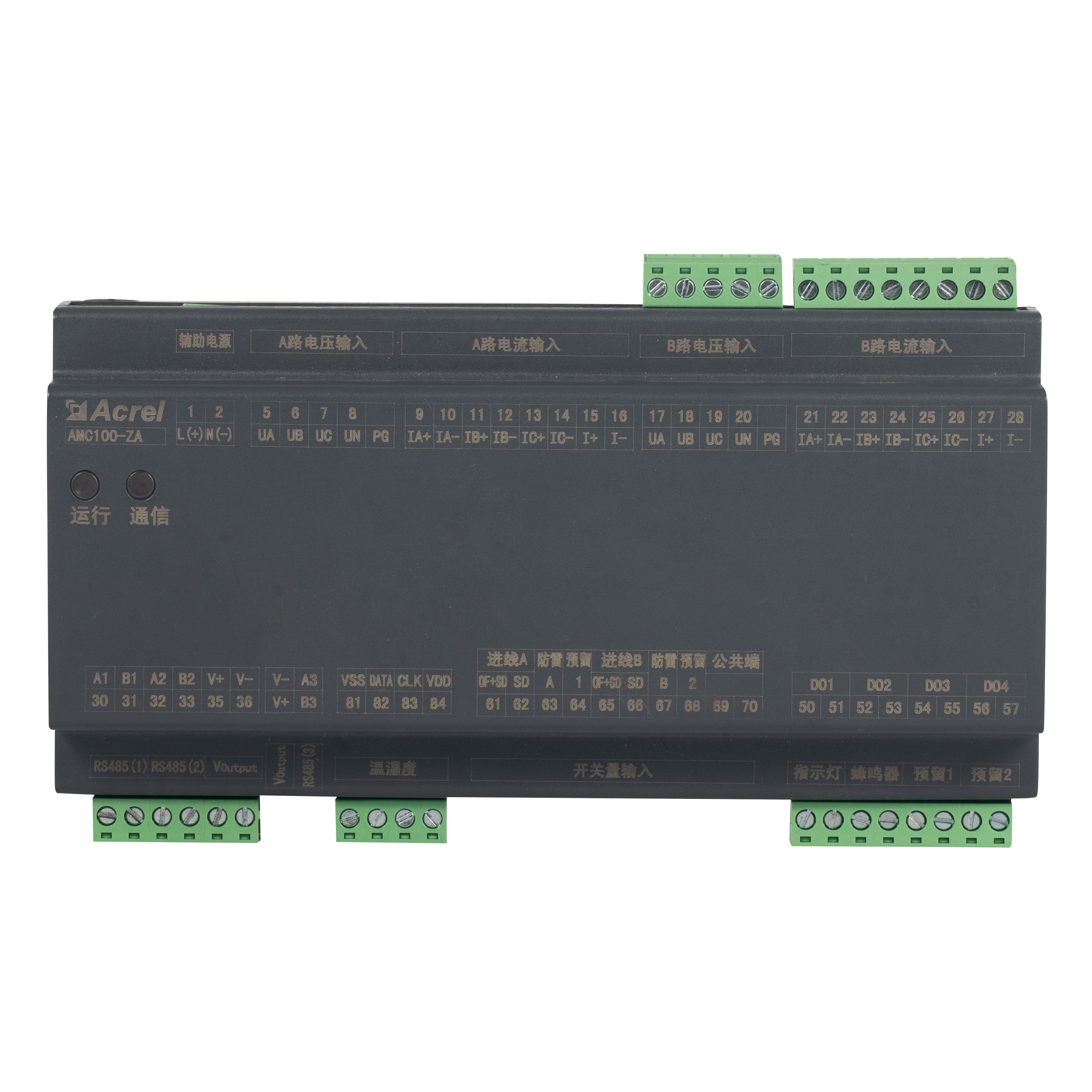

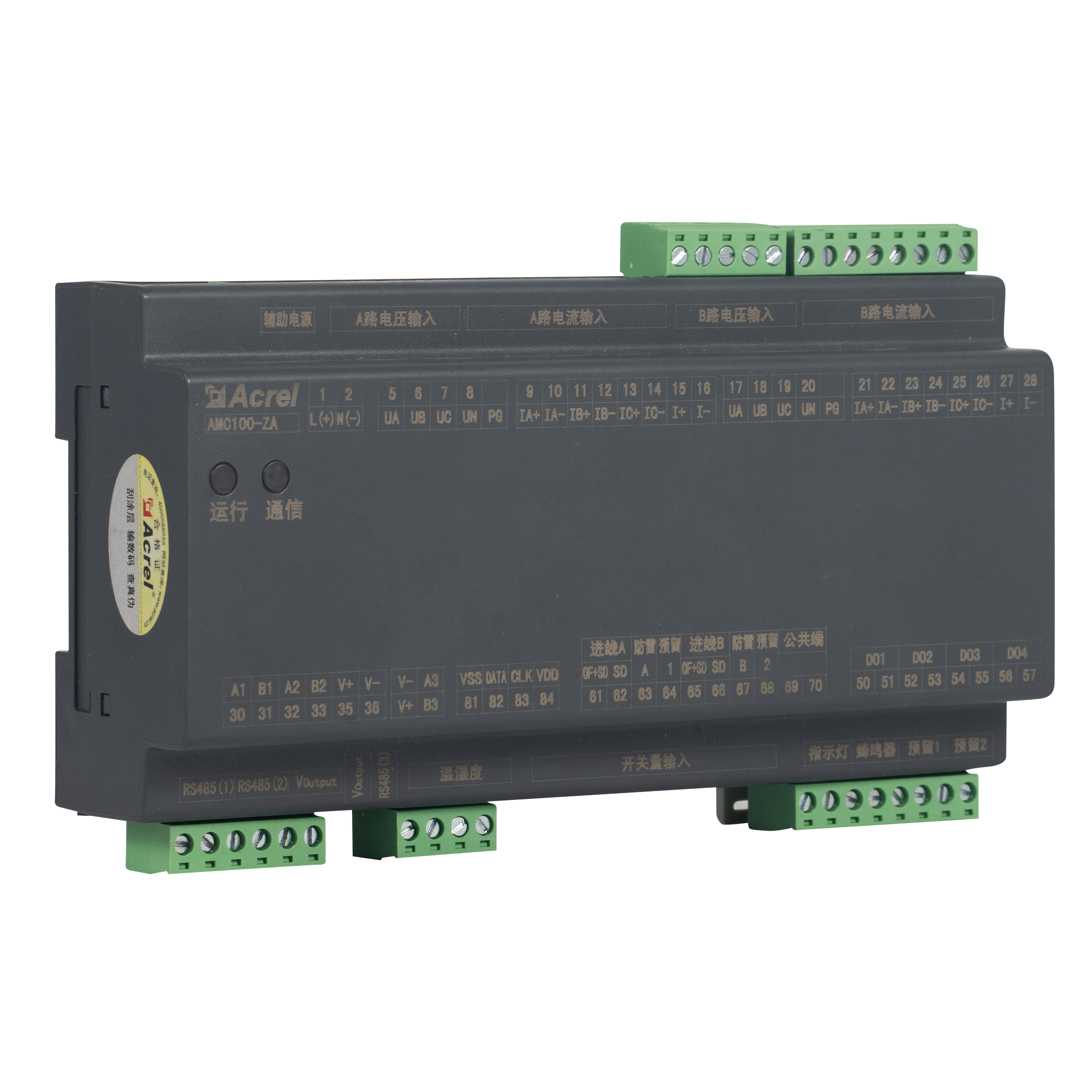

AC Data Center Monitoring Device
AMC100-ZA
Data Center Device / A+B 2 independent AC input
DESCRIPTION
| Acrel AMC100 series AC precision power distribution monitoring device is a measuring device designed specifically for power management of data center servers. The device is compact in design and can monitor the full electrical parameters, input and output switches and the status of the lightning arrester of A+B two incoming lines and 192 outgoing lines in real time. The alarm thresholds of all measurement channels can be set individually, and the outgoing line The limited event immediately triggers the system's sound and light alarms, and the high integration of the monitoring loop is realized in the volume of the traditional instrument. |  |
|
 |
 |
|
| Installation: Easy Installation |
Communication: |
|
 |
 |
|
| Certificate: CE/IEC |
Quality: Quality Assurance |
|
 |
Instrument Model | AMC100-ZA | |||
| Measured Parameters | Voltage, current, frequency, active power, reactive power, power factor, active energy, reactive energy, Zero-to-ground voltage, leakage current and zero sequence current, total harmonic content (THD), 2-63 harmonics, current and voltage unbalance, ambient temperature and humidity | ||||
| Bus Voltage | Rated | 220VAC | |||
| Measuring Range | ±20% | ||||
| Overload | Instantaneous voltage 2 times per second | ||||
| Current Incoming Circuit | Rated | Secondary 5A | |||
| Range | 0～6A | ||||
| Overload | Continuous 1.2 times, instantaneous 10 times/sec | ||||
|
Temperature and humidity
|
Temperature range | -40℃～+99℃ | |||
| Humidity range | 20%～90% | ||||
| Measuring Accuracy | Coil In | Voltage/current level 0.2, active power/energy level 0.5, reactive power/energy level 1 | |||
| Temperature | ±1% | ||||
| Humidity | ±5% | ||||
| Auxiliary power | Signal Power(≤15W） | ||||

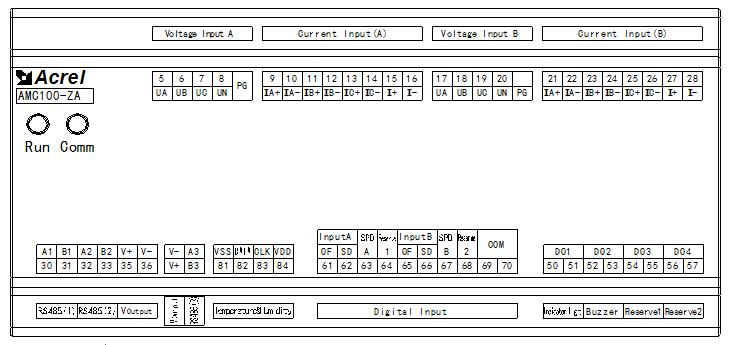

Interface Descriptions
