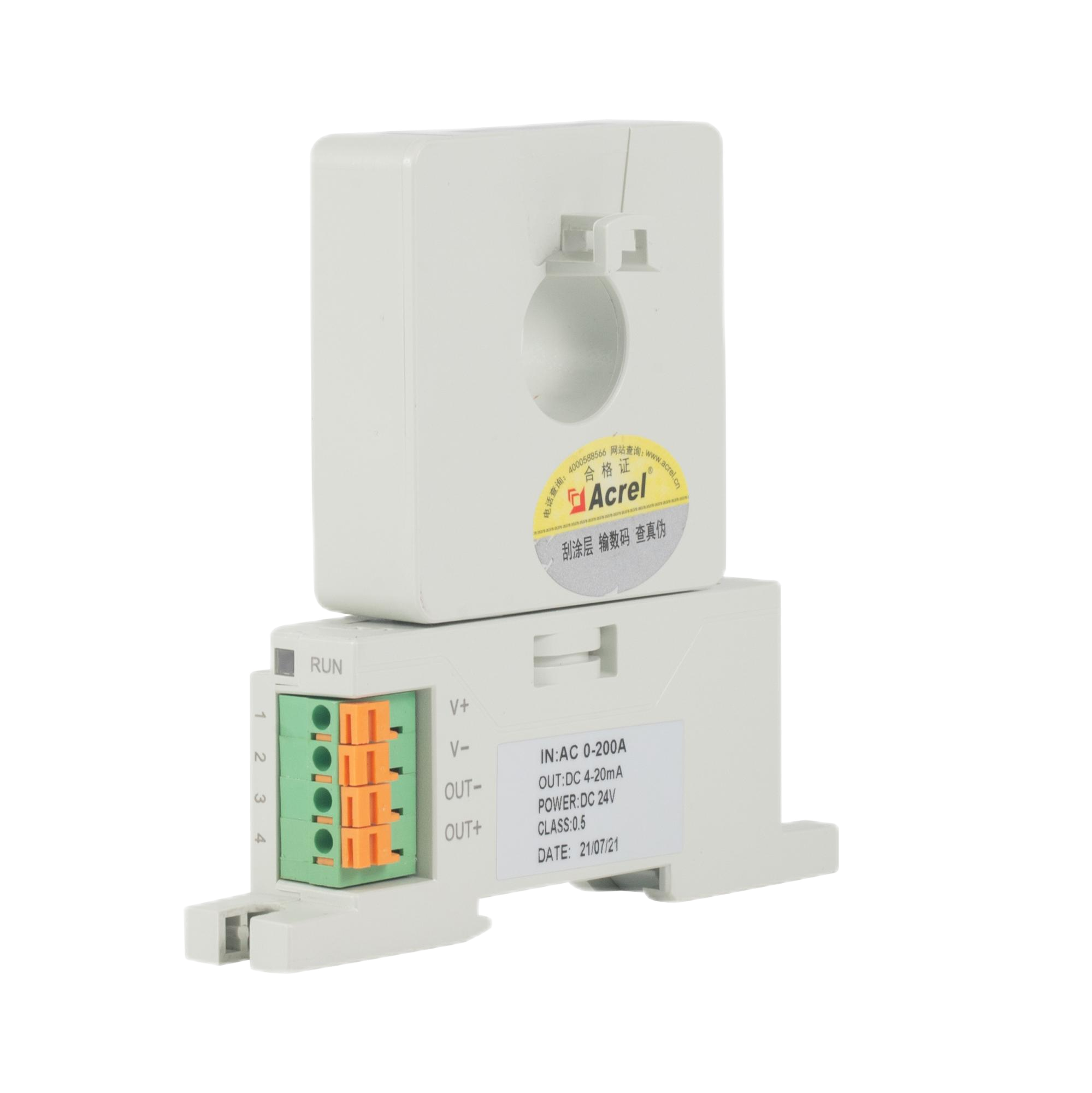

DESCRIPTION

Description
The intelligent BA series current sensor uses the principle of electromagnetic induction to measure the AC current in the power grid in real time and uses constant current and linear compensation technology to isolate and transform it into a standard DC signal output, or through the RS485 interface (Modbus-RTU protocol) to transmit the measurement data. DC24V or 12V safety voltage power supply, can be widely used in the field of industrial automation. BA50L(Ⅱ)-AI is an AC residual current transformer, which mainly detects the leakage current of the electrical system, can grasp the status of electrical circuits and equipment at any time, and prevent fires and other accidents caused by leakage.
37f657a0-640f-41f1-bff2-c200c586579c ad4ba532-855f-41b4-80e8-2e6a44bc90e0

Installation:

Easy Installation

Services:

24 Hour
8626d167-687f-41e3-8d07-4626edab70fd c7cfa2ef-7bc0-4dc7-b88f-2f85335e4c01

Certificate:

CE

Quality:

Quality Assurance



Parameters
Technical parameter Index
Accuracy class Class 0.5
Input Nominal value BA20(Ⅱ)-AI Current AC 0.5A, 50A, 200A, etc. AC 0～(0.5～200)A
BA50(Ⅱ)-AI Current AC 60A, 300A, 600A, etc. AC 0～(60～600)A
 BA50L(Ⅱ)-AI  Current AC 0.1A, 1A, etc. AC 0～(0.1～1)A
Overload Continuous 1.2 times, instantaneous current 10 times/1S
Absorbed power ≤1VA
Frequency response 25Hz～800Hz, especially suitable for industrial frequency occasions
Output Nominal value DC4～20mA, or 0～20mA, 0～5V, 0～10V etc.
Load Resistance When DC12V power supply, current output is ≤250 Ω When DC24V power supply, current output is ≤ 500Ω, When voltage output is ≥1KΩ
Communication

RS485 interface/Modbus-RTU
Response time ≤400ms
Power supply Voltage DC 12V or 24V
Power consumption  ≤1W
Insulation resistance ＞100MΩ
Compressive strength Between input/output and power supply 2.0KV/1min,50Hz
Temperature Coefficient -10℃～+55℃, ≤400ppm/℃
Environment Temperature Work: -10℃～+55℃ Storage: -25℃～+70℃
Humidity ≤93%RH, no condensation, no corrosive gas place
Altitude ≤2000m
Installation method TS35 rail, or use screws to fix the cabinet

Note: 0～10V output is only suitable for DC24V power supply;The communication function is optional

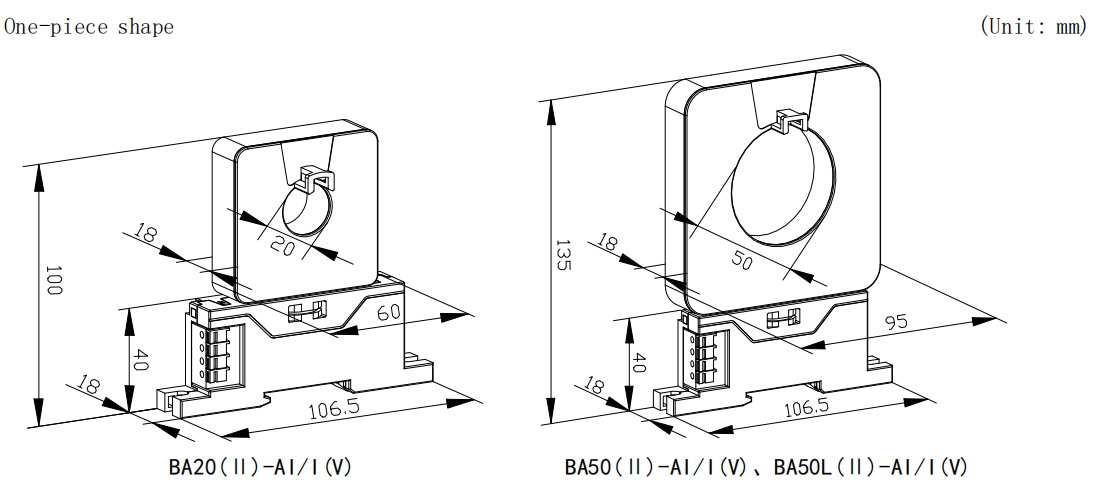

Size

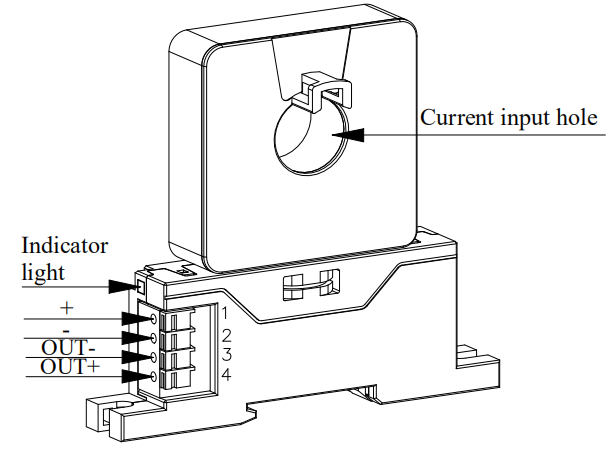

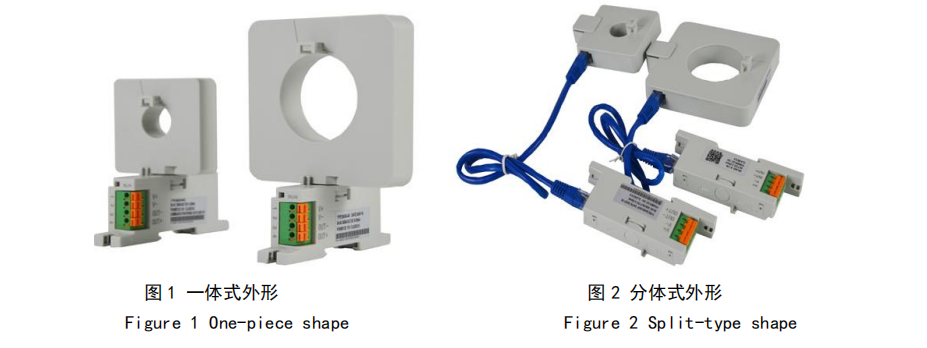

Panel Overview

Wiring

Application

BA AC current transmitter is an instrument that can convert the measured AC current into a linear proportional DC voltage or DC current output. It is widely used in electrical devices, automatic control and dispatching systems in various industrial automation systems, power, post and telecommunications, petroleum, coal, metallurgy, railways, municipal and other departments.



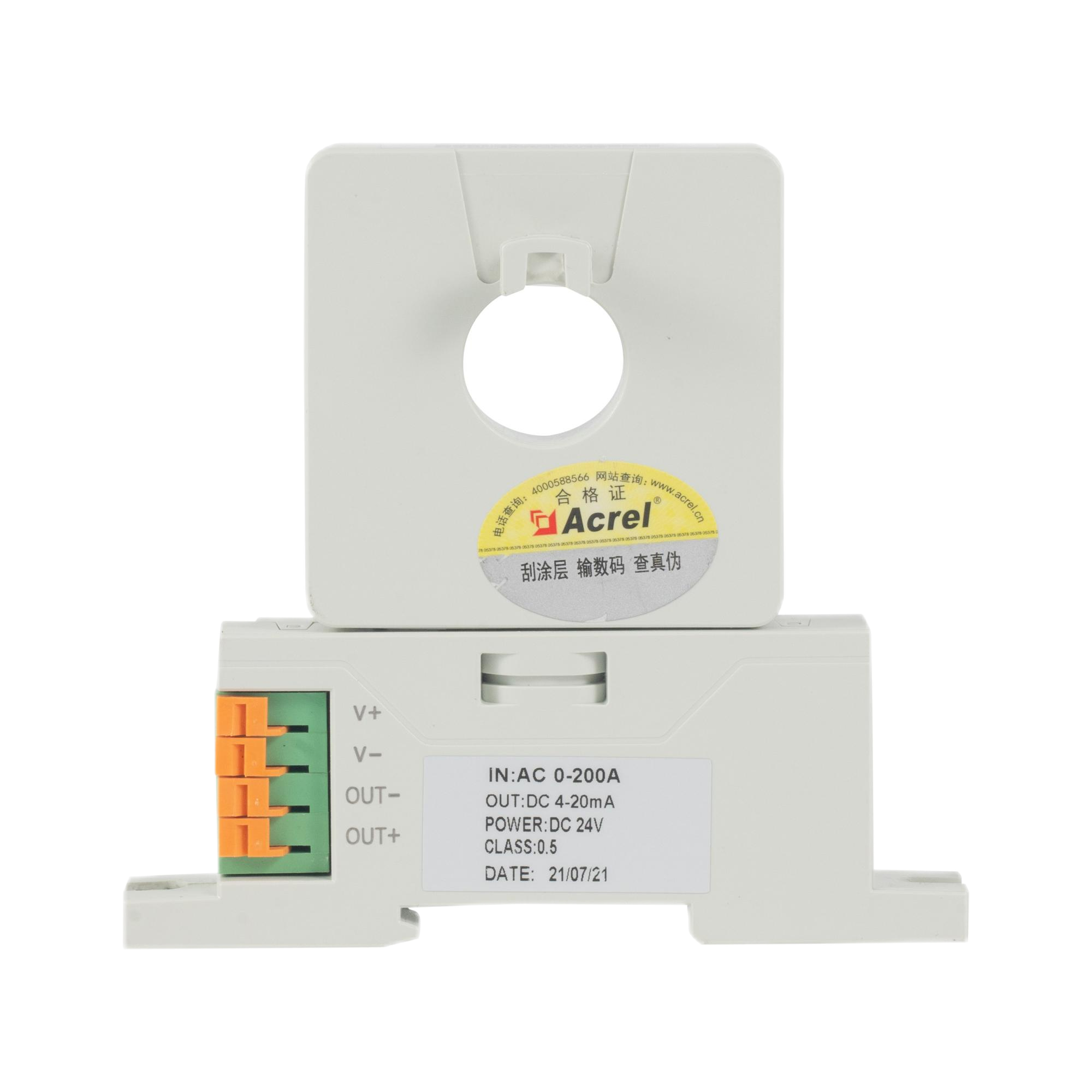

Interface Descriptions
