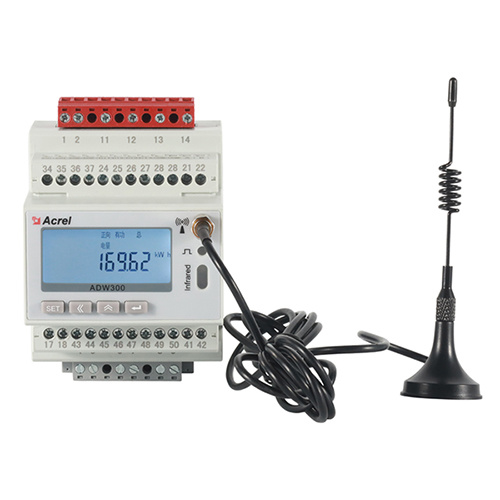

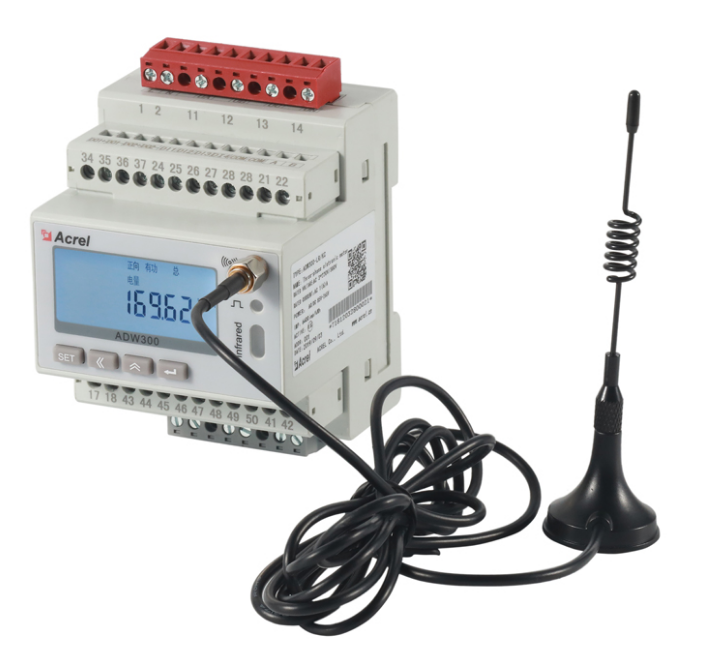

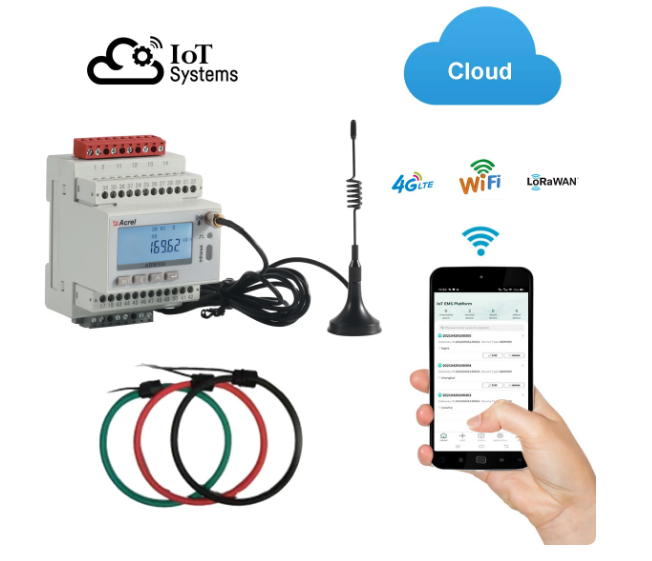

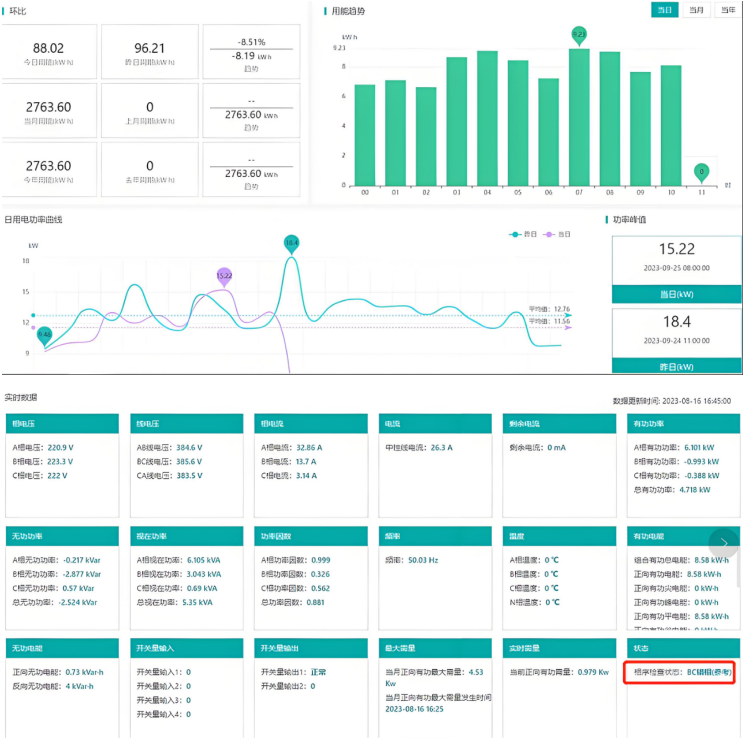

ADW300 Wireless Metering Meter is mainly used to metering three phase active energy on low voltage network. The product boasts of advantages including compact size, high precision, rich features. According to different requirements, there are many communications functions like RS485 communication, Lora, LoraWAN, WIFI, 4G, adding the new current sampling mode using external transformer. It can be flexibly installed in the distribution box to achieve sub-item electric energy metering, operation and maintenance supervision or power monitoring requirements for different regions and different loads. Click here to check our 【Energy Management System】
Installation: Easy Installation	Services: 24 Hour
Certificate: CE	Quality: Quality Assurance

Structure

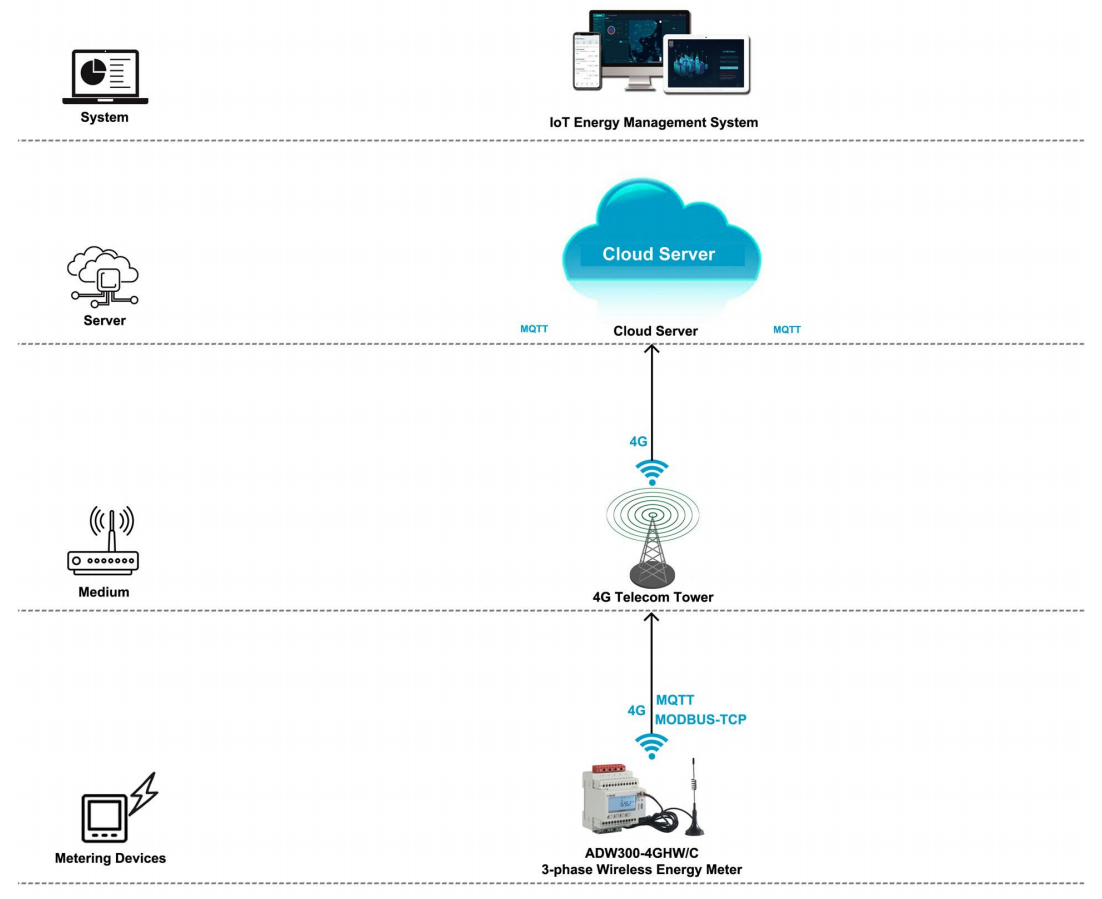

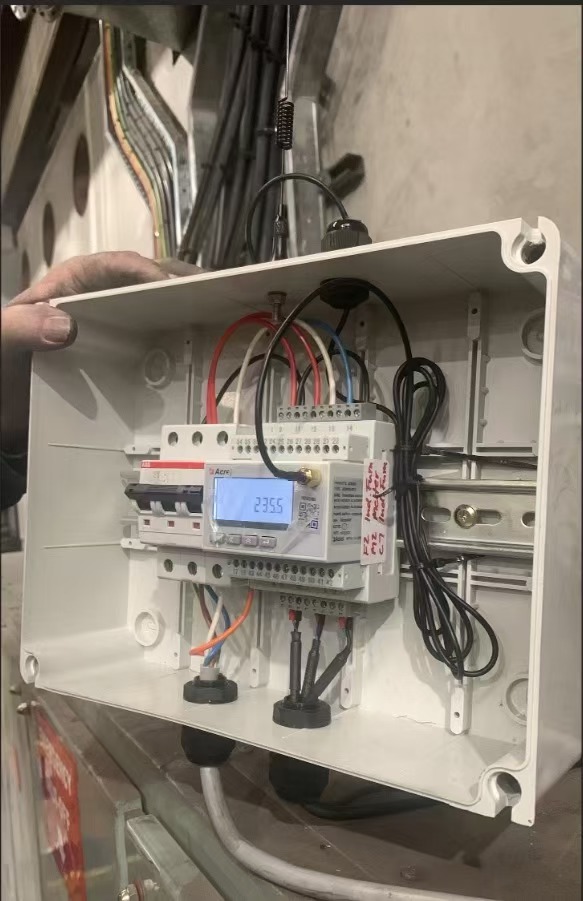

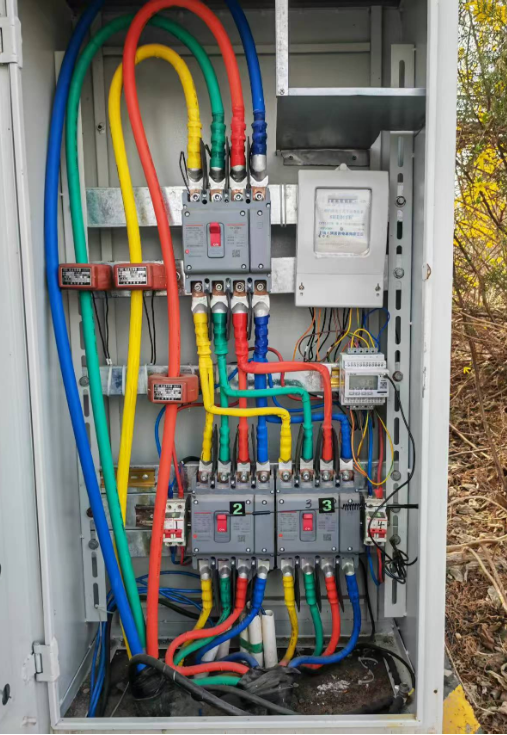

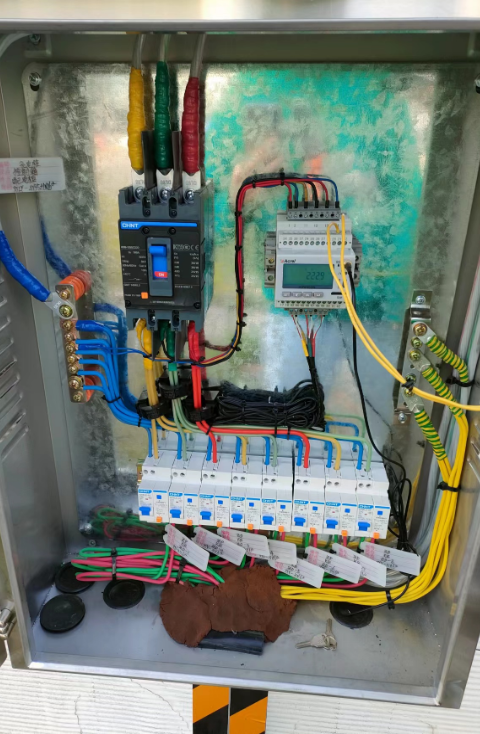

ADW300 4G Type

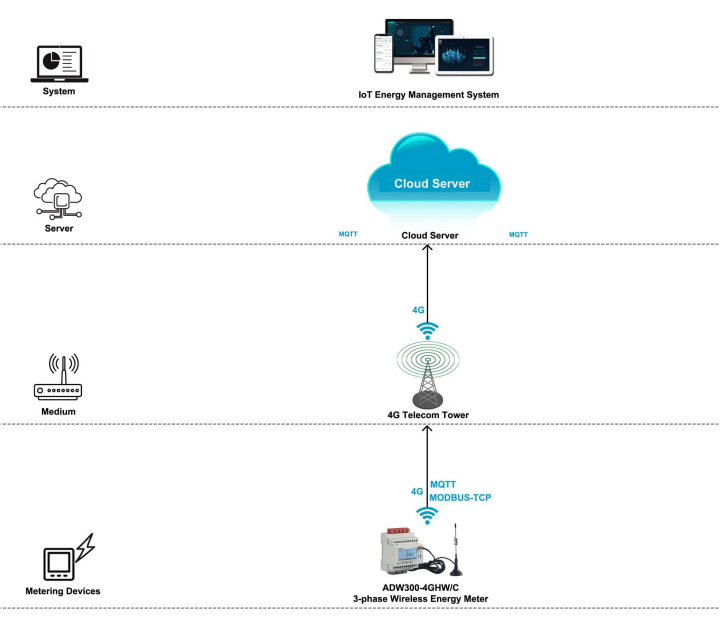

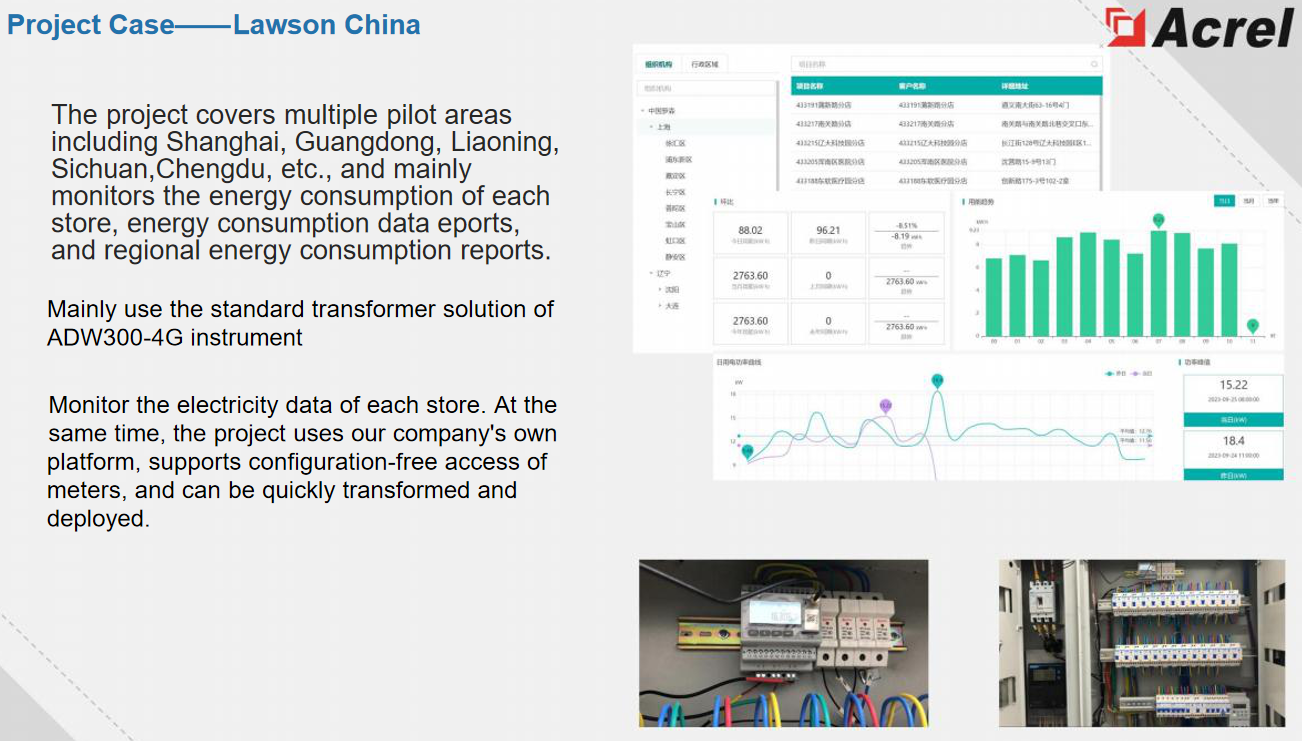

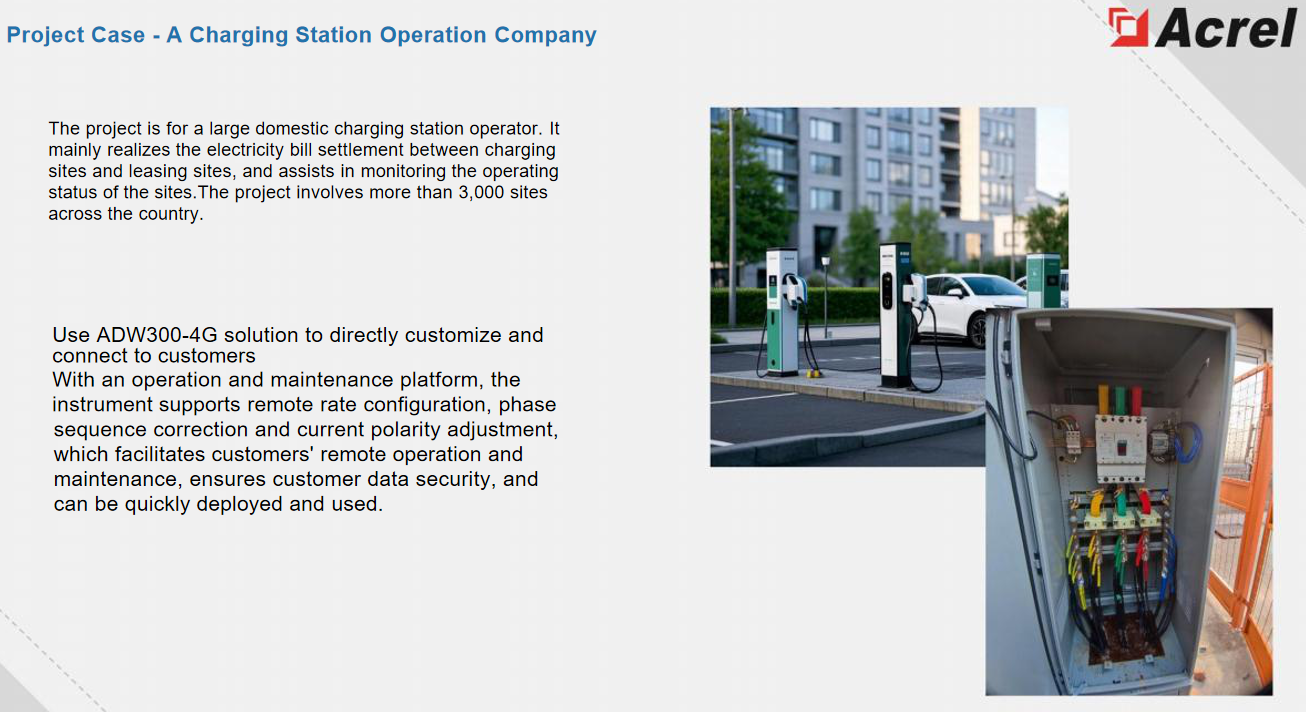

(1) 4G Communication could be served as one of the final data upstream methods by sending the data to cloud server deployed in Internet so that Acrel IoT System could be interact with these datacollected by bottom metering devices like Energy Meter

(2) ADW300-4GHW/C Wireless 4G 3-phase Energy Meter has a built-in 4G communication module which allow it to directly send data to local 4G telecom tower through 4G signal based on MQTT protocol without using a extra 4G IoT Gateway

(3) Each ADW300-4GHW/C has a 4G card tray for installing the 4G sim card which could be bought from your local 4G service provider

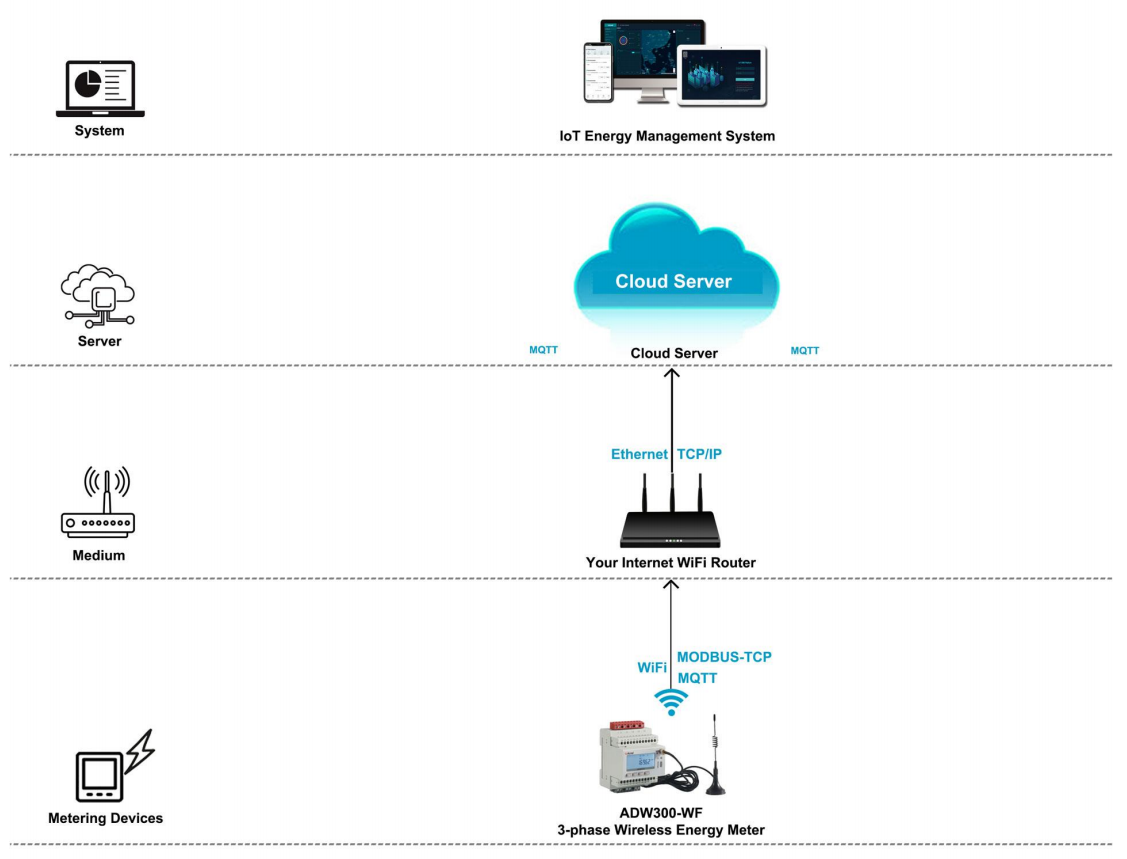

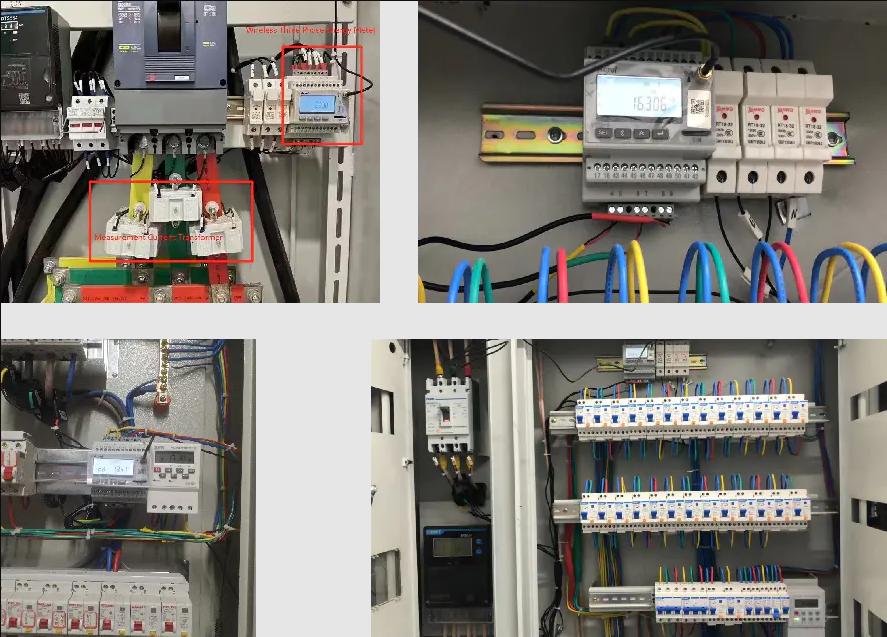

ADW300 WIFI Type

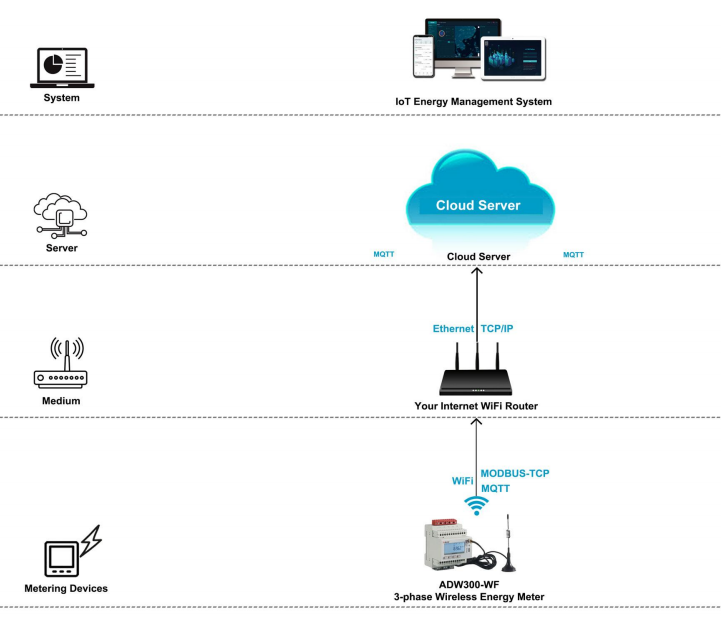

(1) WiFi Communication could be served as one of the final data upstream methods by sending the data to cloud server deployed in Internet via your WiFi Internet Router so that Acrel IoT System could be interact with these data collected by bottom metering devices like Energy Meter

(2) ADW300-WF/C Wireless WiFi 3-phase Energy Meter has a built-in WiFi communication module which allow it to directly send data to your Internet WiFi Router using MQTT and MODBUS-TCP protocol without using a extra WiFi IoT Gateway. Then your WiFi router will send the data further to internet for a final data upstreaming

Parameters

	Voltage input	Rated voltage	3×57.7/100V，3×220/380V，3×380/660V，3×100V，3×380，3×660V
		Reference frequency	50Hz
		Consumption	<0.5VA (Each phase)
	Current input	Input current	3×1(6)A，3×20(100)A，3×80(400)A，3×120(600)A，1000A to 10000A (Rogowski Coil)
		Start current	1‰Ib(0.5S class)，4‰Ib(1 class)
		Consumption	<1VA (Each phase)
	Auxiliary power	Power Supply	AC 85-265V
		Power consumption	＜2W
	Measurement	Standard	IEC 62053-22:2003，IEC 62053-21:2003
	performance	Active energ accuracy	Class 0.5s (ADW300) ，Class 1 (ADW300W)
		Temperature accuracy	±2℃
	Pulse	Width of pulse	80±20ms
		Pulse constant	6400imp/kWh .400imp/kWh
	Communication	Wireless	Lora（868，915，923MHz）；LoraWAN（868，915，923MHz）；4G；WIFI（2.4GHz）
		Infrared communication	The constant baud rate is 1200
		Interface	RS485(A、B)
		Connection mode	Shielded twisted pair conductors
		Protocol	MODBUS-RTU

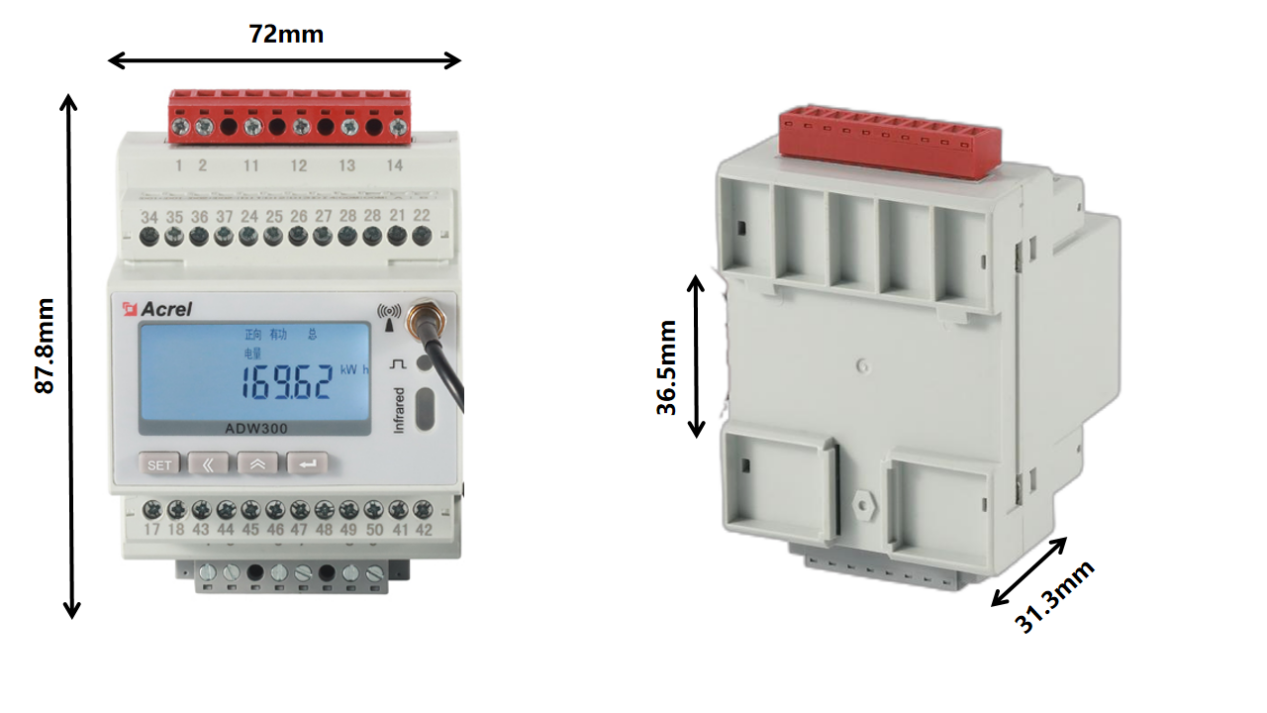

Size

Wiring Diagram
