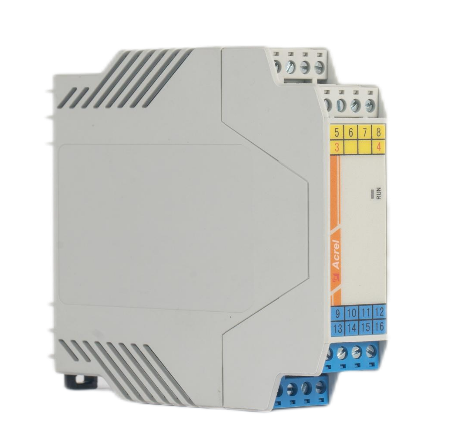

Electrical Transmitter

BD、BD100

Isolate And Transmit Electric Parameters

DOWNLOAD PDF >>

CONTACT >>

Home page

DESCRIPTION

Description

Series BD electric transmitters is a device which can isolate and transmit electric parameters, such as current,voltage, frequency, power, power factor, into linear DC analog signal or digital signal. It meet the requirements of National standard GB/T13850-1998, IEC-688.

Installation: Easy Installation	Services: 24 Hour

Certificate: CE	Quality: Quality Assurance

Parameters

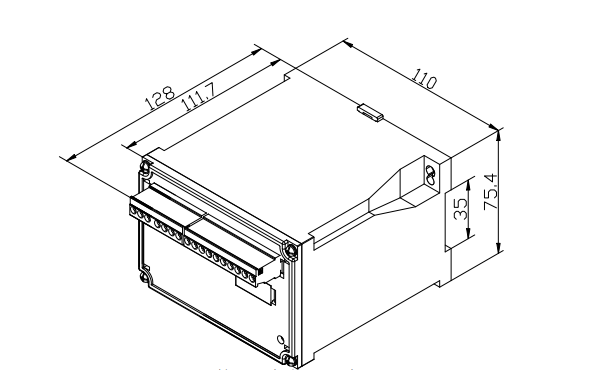

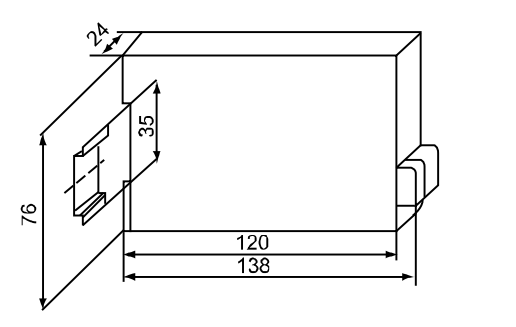

Size

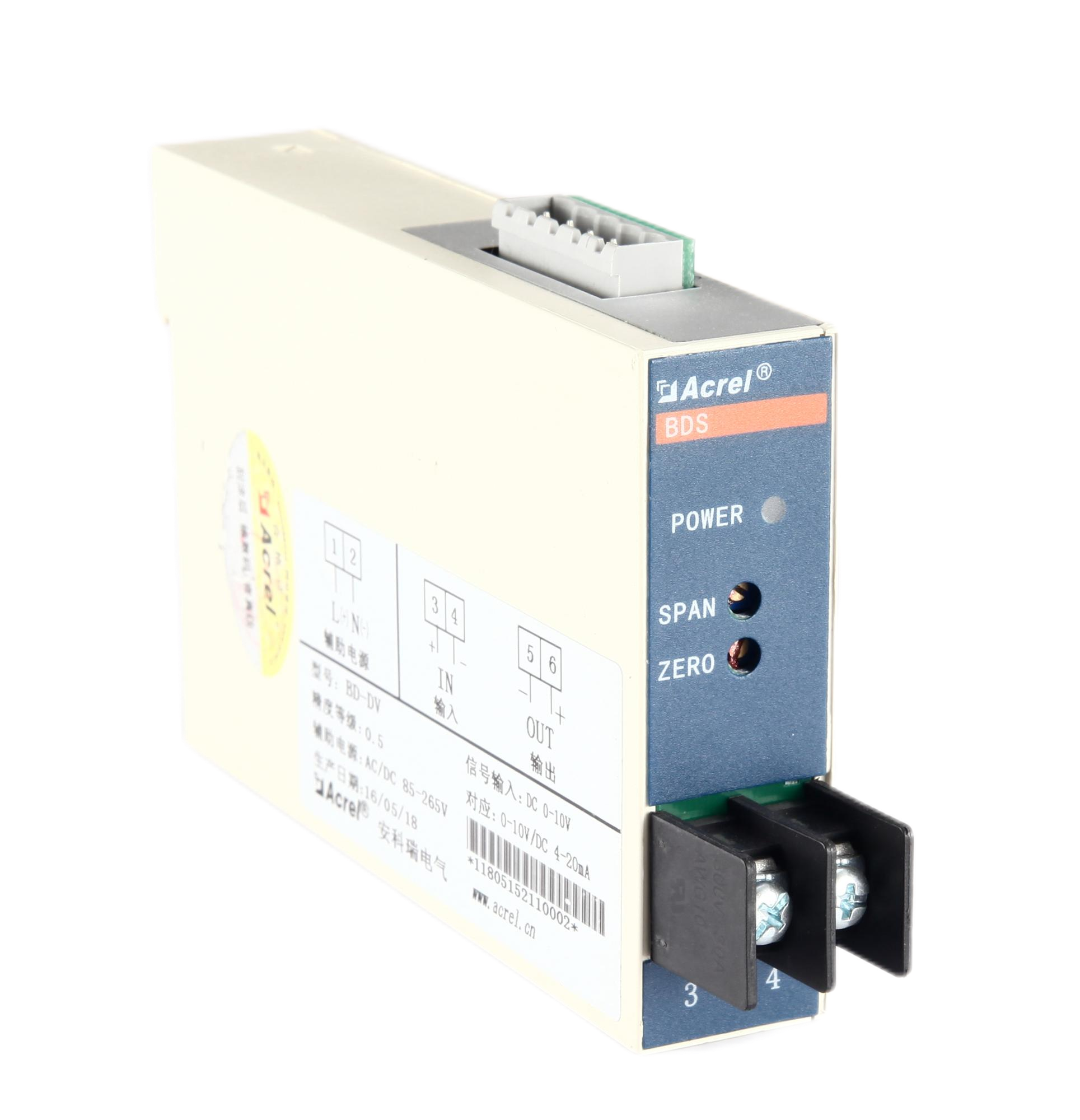

Panel Overview

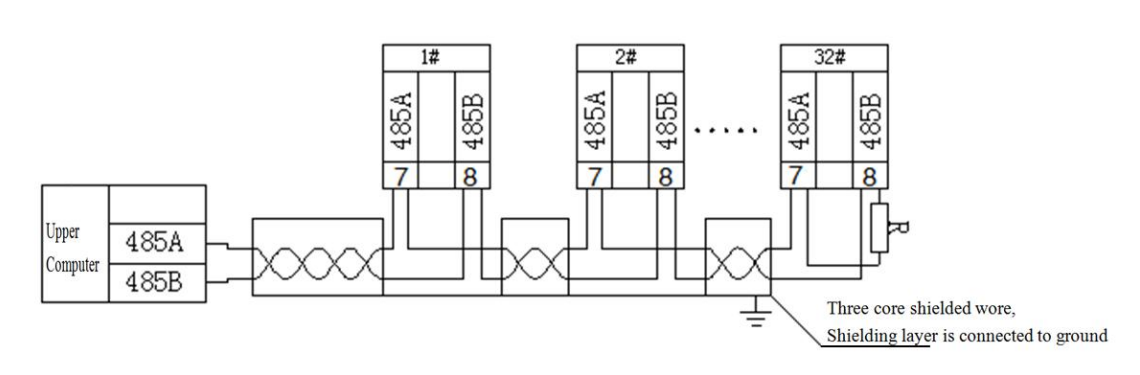

Wiring

Home page

Interface Descriptions

Download

014 BD系列变送器说明书（中英文）V2.5_20230605(V5-T.1).pdf

Download

507 BD100系列电量变送器安装使用说明书V1.5(英文)-20221110.pdf

Download

Electrical Transmitter

Product Summary:

Used for connection between pipe ends; Also useful is a flange on the inlet and outlet of the equipment, used for connecting between two devices, such as a gearbox flange. Flange connection or flange joint refers to a detachable connection consisting of flanges, gaskets, and bolts connected to each other as a combination sealing structure. Pipeline flange refers to the flange used for piping in pipeline devices, and when used on equipment, it refers to the inlet and outlet flanges of the equipment. There are holes on the flange, and bolts make the two flanges tightly connected. Seal the flanges with gaskets.

Classification：Butt welded pipe fittings

Keywords: Butt welded pipe parts

产品详细

There are GB series (national standard), JB series (mechanical department), HG series (chemical department), ASME B16.5 (American standard), BS4504 (British standard), DIN (German standard), JIS (Japanese standard).

Advantages:

The on-site installation is more convenient, and the process of welding seam rubbing can be omitted

Disadvantages:

The neck height of the flat welded flange with a neck is relatively low, which improves the stiffness and load-bearing capacity of the flange. Compared with butt welded flanges, the welding workload is large, the consumption of welding rods is high, and it cannot withstand high temperature and pressure, repeated bending, and temperature fluctuations.

The connection is not easily deformed, with good sealing effect, and is widely used. It is suitable for pipelines with significant temperature or pressure fluctuations, as well as pipelines with high, high, and low temperatures. It is also used for transporting expensive media, flammable and explosive media, and toxic gases
