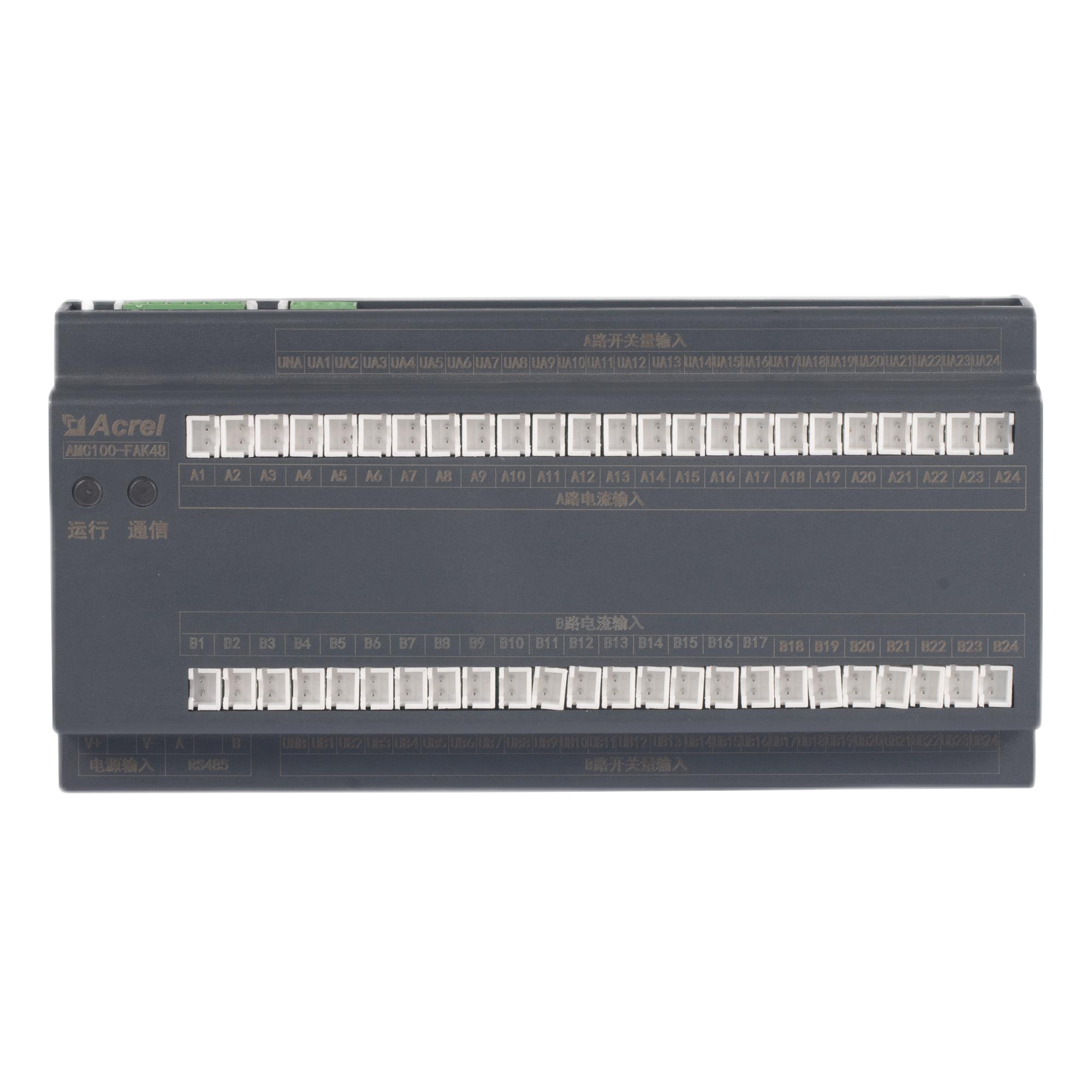

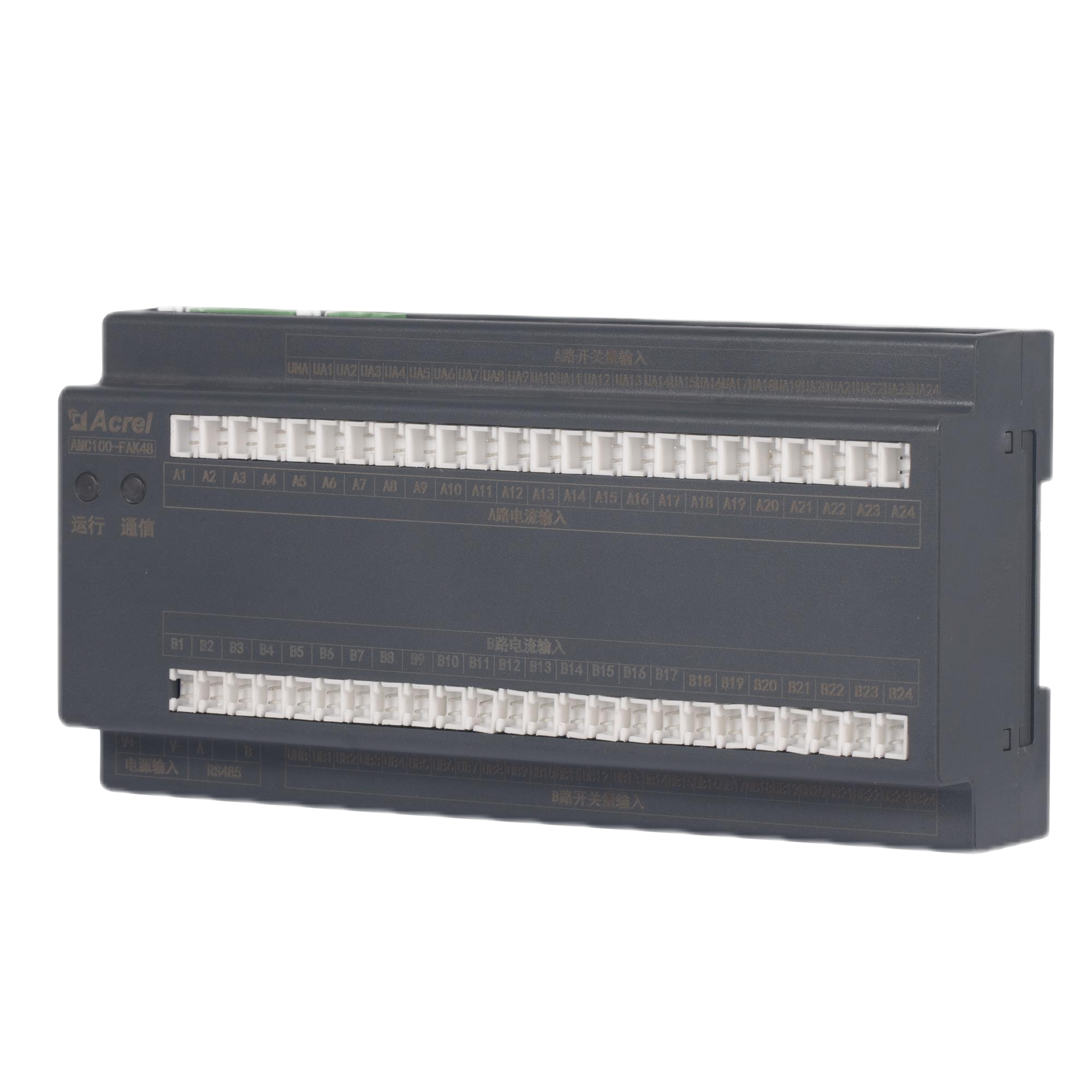

AC Data Center Monitoring Device
AMC100-FAK48
Data Center Device / Monitor the 48 voltage of the A+B AC outlet
DESCRIPTION
| Acrel AMC100 series AC precision power distribution monitoring device is a measuring device designed specifically for power management of data center servers. The device is compact in design and can monitor the full electrical parameters, input and output switches and the status of the lightning arrester of A+B two incoming lines and 192 outgoing lines in real time. The alarm thresholds of all measurement channels can be set individually, and the outgoing line The limited event immediately triggers the system's sound and light alarms, and the high integration of the monitoring loop is realized in the volume of the traditional instrument. |  |
|
 |
 |
|
| Installation: Easy Installation |
Communication: |
|
 |
 |
|
| Certificate: CE/IEC |
Quality: Quality Assurance |
|
 |
Instrument Model | AMC100-FAK48 | |||
| Measured Parameters | Voltage, current, frequency, active power, reactive power, power factor, active energy, reactive energy, 2-31 times total current harmonic content | ||||
| Bus Voltage | Rated | 220VAC | |||
| Measuring Range | ±20% | ||||
| Overload | Instantaneous voltage 2 times/sec | ||||
| Current Incoming Circuit | Rated | 50mA | |||
| Range | 0.125～60mA | ||||
| Overload | Continuous 1.2 times, instantaneous 10 times/sec | ||||
| Auxiliary Supply | Powered by AMC100-ZA; DC 12-24V power supply when used alone | ||||
| Measuring Accuracy | Outlet | Voltage/current/active power/active energy level 0.5, reactive power/reactive energy level 1 | |||

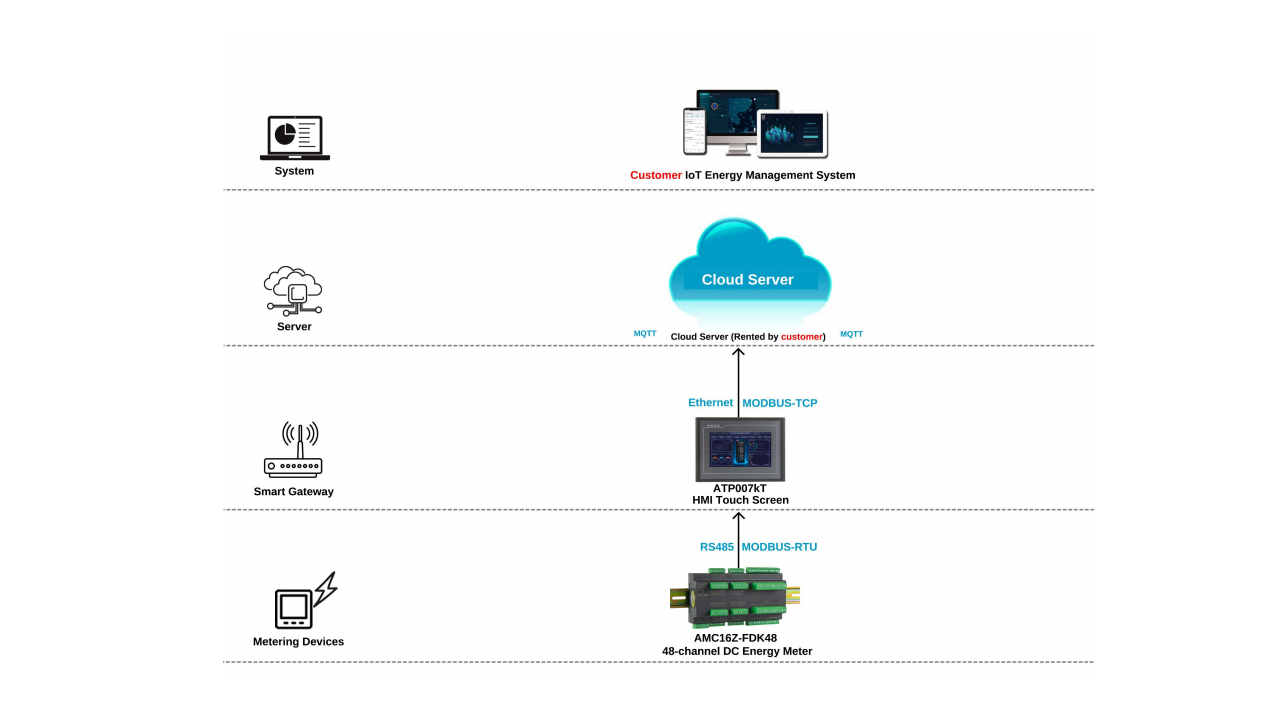

| Communication | RS485/Modbus-RTU | ||||
| Protection Level | IP20 | ||||
| Pollution Level | 2 | ||||

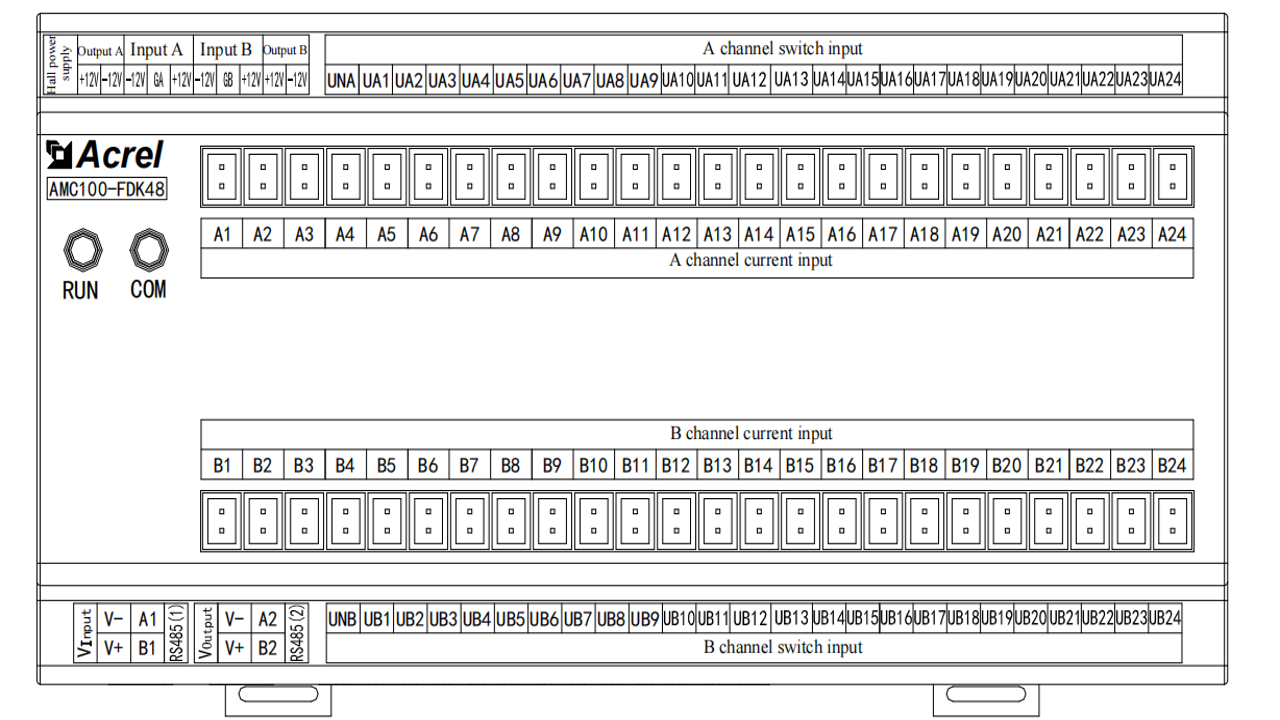

Interface Descriptions
